Through core type precision current transformer TA8348N-250 Rated input 0-5A Rated output 0-2mA - PowerUC

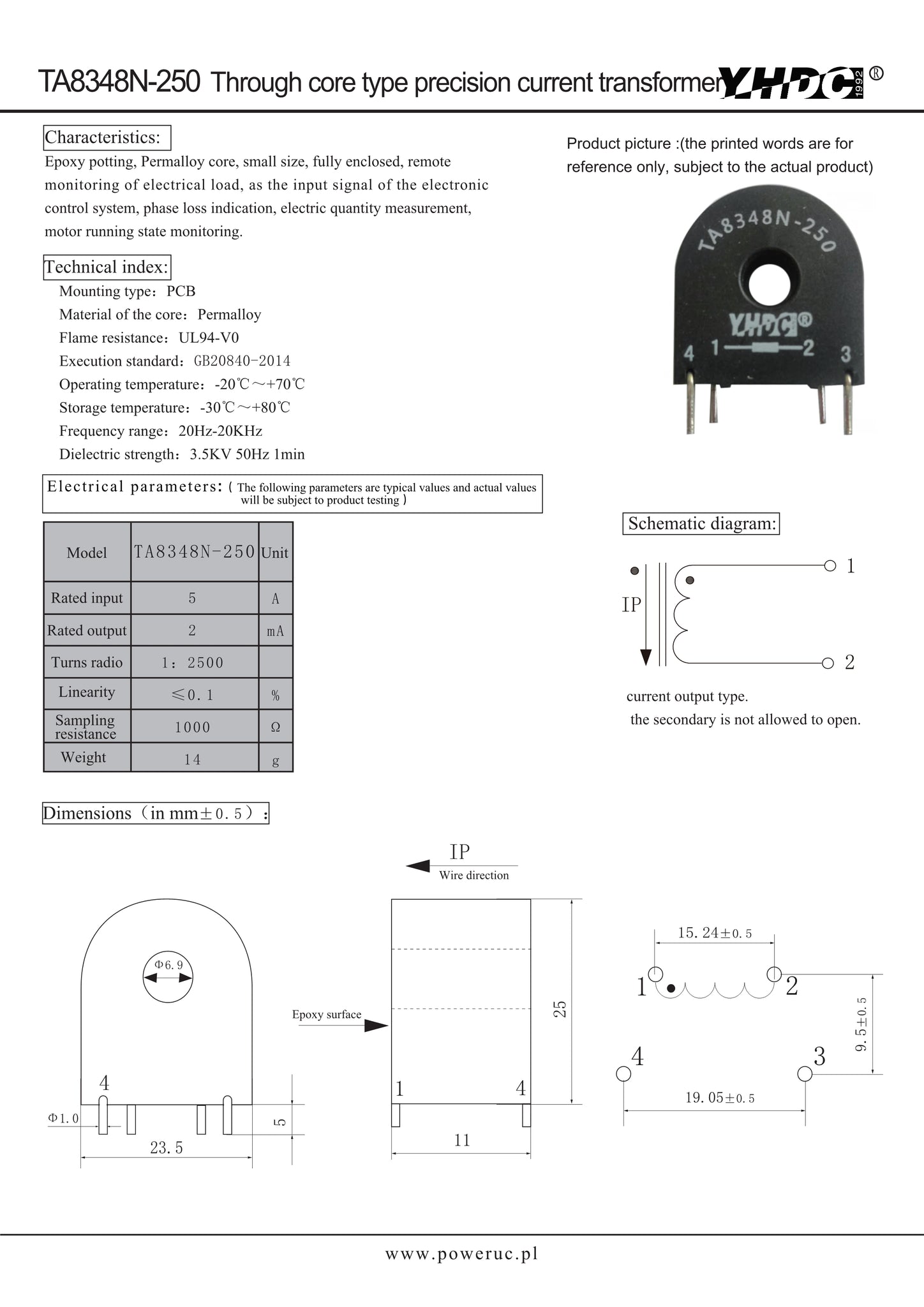

Through core type precision current transformer TA8348N-250 Rated input 0-5A Rated output 0-2mA

Through core type precision current transformer TA8348N-250 Rated input 0-5A Rated output 0-2mA

PowerUC

Shipping calculated at checkout.
Only 9 left!

Characteristics:

Epoxy potting, Permalloy core, small size, fully enclosed, remote monitoring of electrical load, as the input signal of the electronic control system, phase loss indication, electric quantity measurement, motor running state monitoring.

Technical Index:
Mounting type: PCB
Material of the core: Permalloy
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: ≥3.5KV 50Hz 1min

Electrical Parameter:

DOWNLOAD
