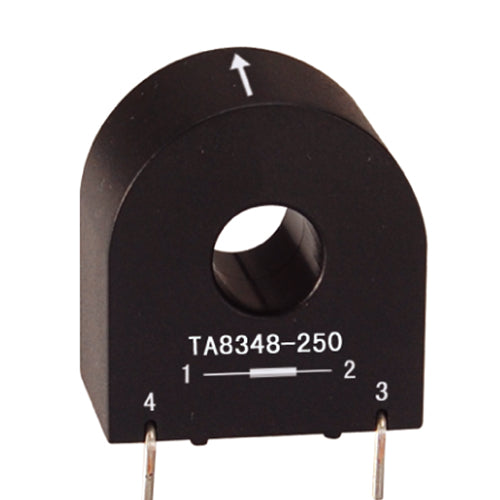

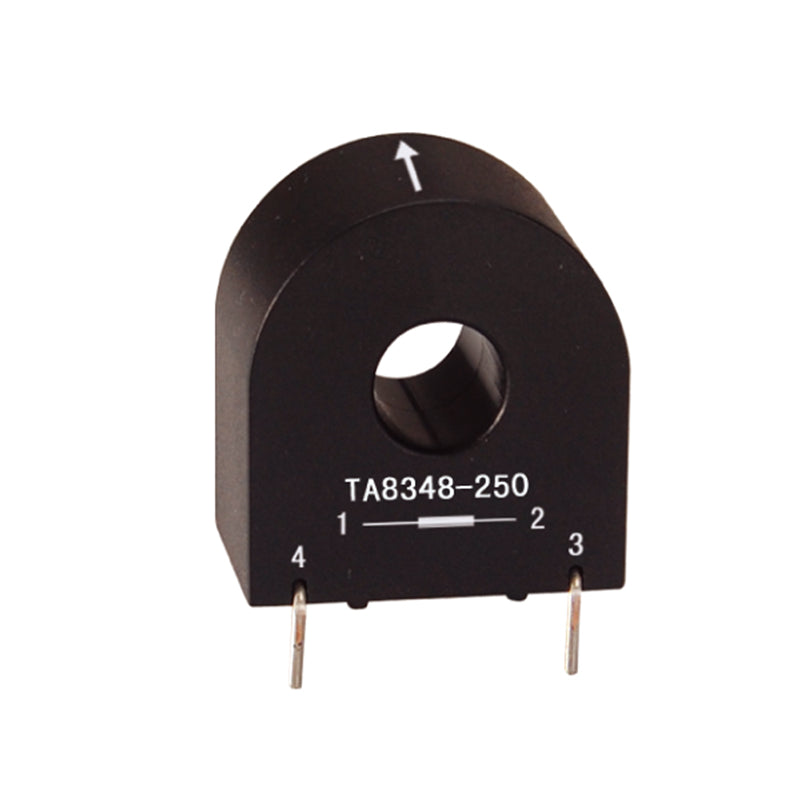

Through core type precision current transformer TA8348-250 Rated input 0-5A Rated output 0-2mA

PowerUC

  • €1,32
    Unit price per
Shipping calculated at checkout.

Only 64 left!

Characteristics:

Epoxy potting, Nanocrystalline core, small size, fully enclosed, remote monitoring of electrical load, as the input signal of the electronic control system, phase loss indication, electric quantity measurement, motor running state monitoring.

Technical Index:
Mounting type: PCB
Material of the core: Nanocrystalline
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: ≥3.5KV 50Hz 1min

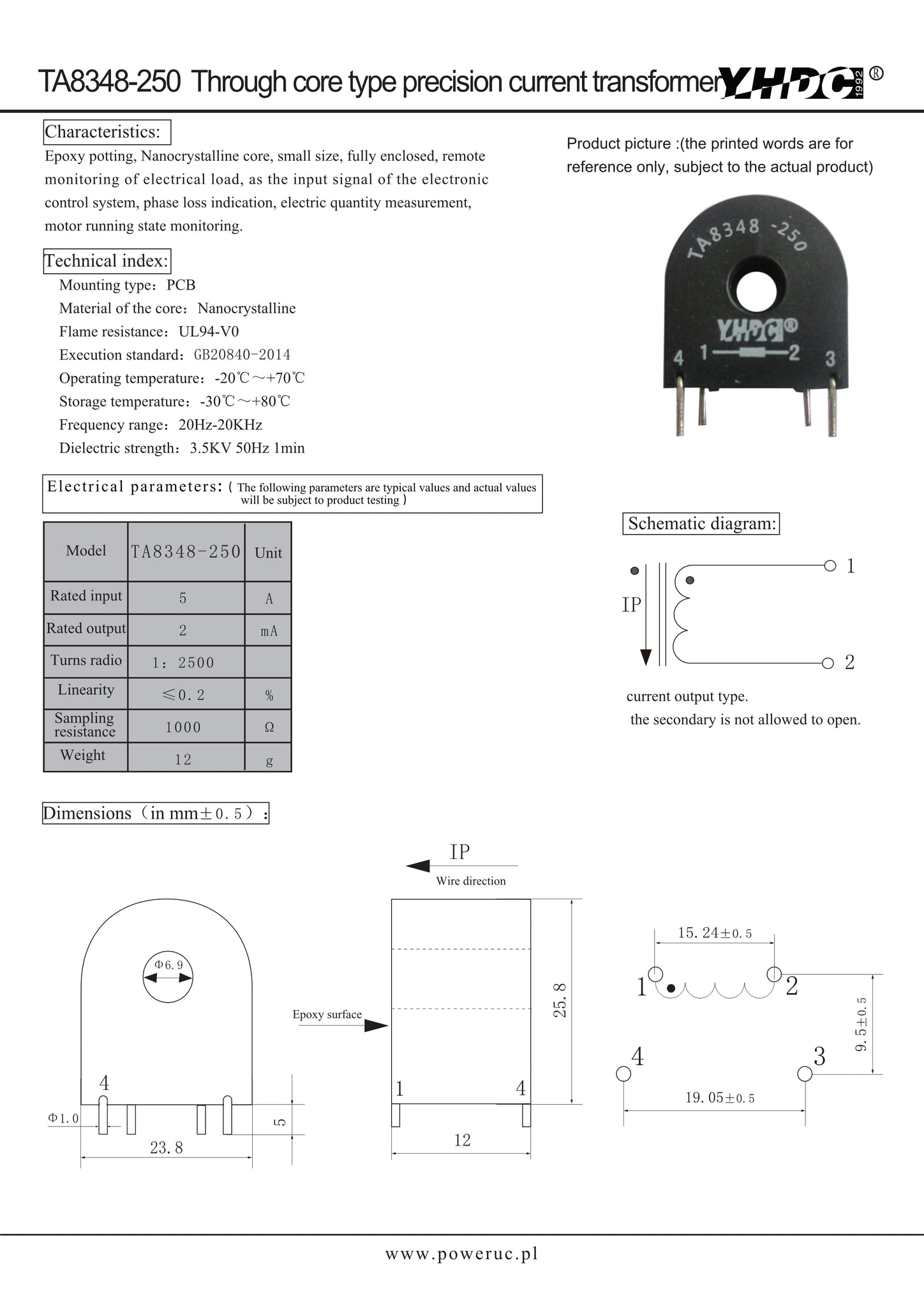

Electrical Parameter:
