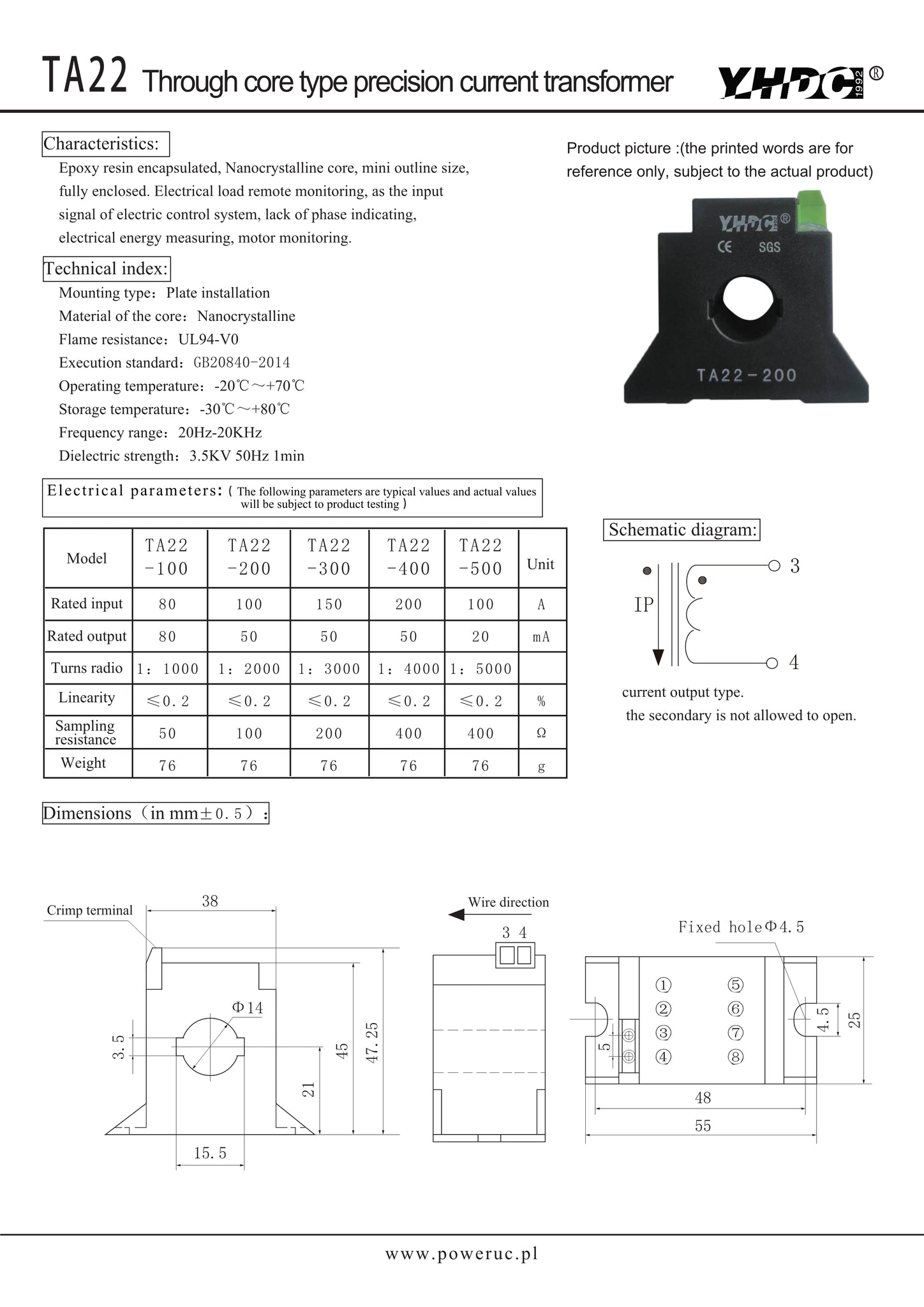

Through core type precision current transformer TA22 Rated input 80A 100A 150A 200A Rated output 80mA 50mA 20mA

Through core type precision current transformer TA22 Rated input 80A 100A 150A 200A Rated output 80mA 50mA 20mA

PowerUC

Shipping calculated at checkout.
Only 15 left!

Model:TA22

Characteristics:

Epoxy resin encapsulated, Nanocrystalline core, mini outline size, fully enclosed. Electrical load remote monitoring, as the input signal of electric control system, lack of phase indicating, electrical energy measuring, motor monitoring.

Technical index:

Mounting type：Plate installation

Material of the core：Nanocrystalline

Flame resistance：UL94-V0

Execution standard：GB20840-2014

Operating temperature：-20℃～+70℃

Storage temperature：-30℃～+80℃

Frequency range：20Hz-20ZHz

Dielectric strength：3.5KV 50Hz 1min

Electrical parameters:

DOWNLOAD
