Through core type precision current transformer TA20FL Rated input 0-20A；0-30A；0-40A Rated output 0-20mA

PowerUC

Shipping calculated at checkout.
Only 5 left!

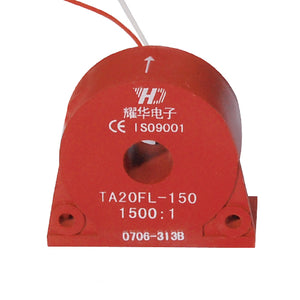

Model:TA20FL

Characteristics:

Leading wire type. Both horizontal and vertical mounting modes are available. Electrical load current remote monitoring, as electric control system input signal, lack of phase indicating, electrical energy measuring, motor monitoring.

Technical index:

Mounting type：Plate mounting

Material of the core：Nanocrystalline

Flame resistance：UL94-V0

Execution standard：GB20840-2014

Operating temperature：-20℃～+70℃

Storage temperature：-30℃～+80℃

Frequency range：20Hz-20KHz

Dielectric strength：≥3.5KV 50Hz 1min

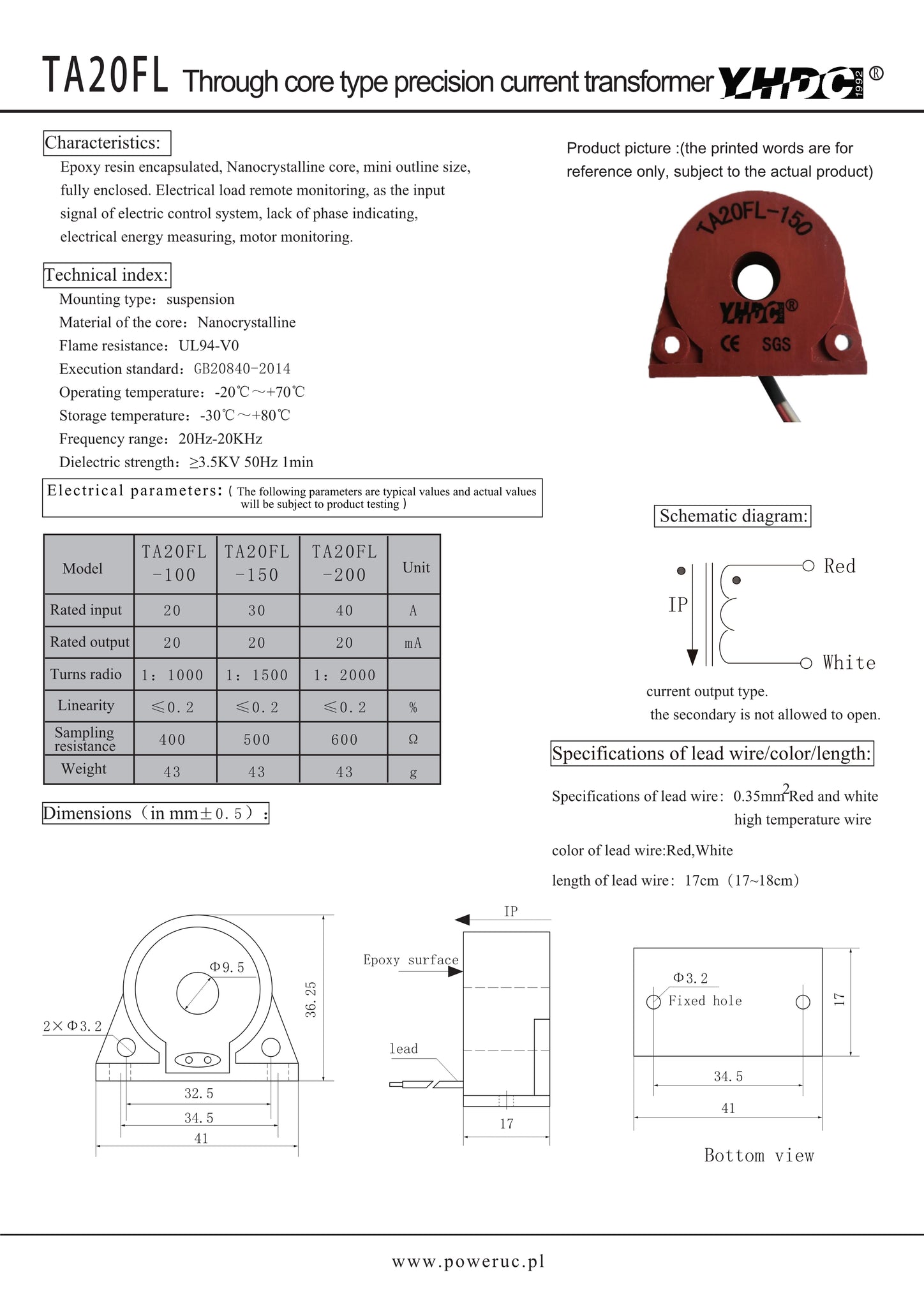

Electrical parameters:

DOWNLOAD
