Through core type precision current transformer TA20 Rated input 0-20A；0-30A；0-40A Rated output 0-20mA - PowerUC

Through core type precision current transformer TA20 Rated input 0-20A；0-30A；0-40A Rated output 0-20mA

PowerUC

Shipping calculated at checkout.
Only 9 left!

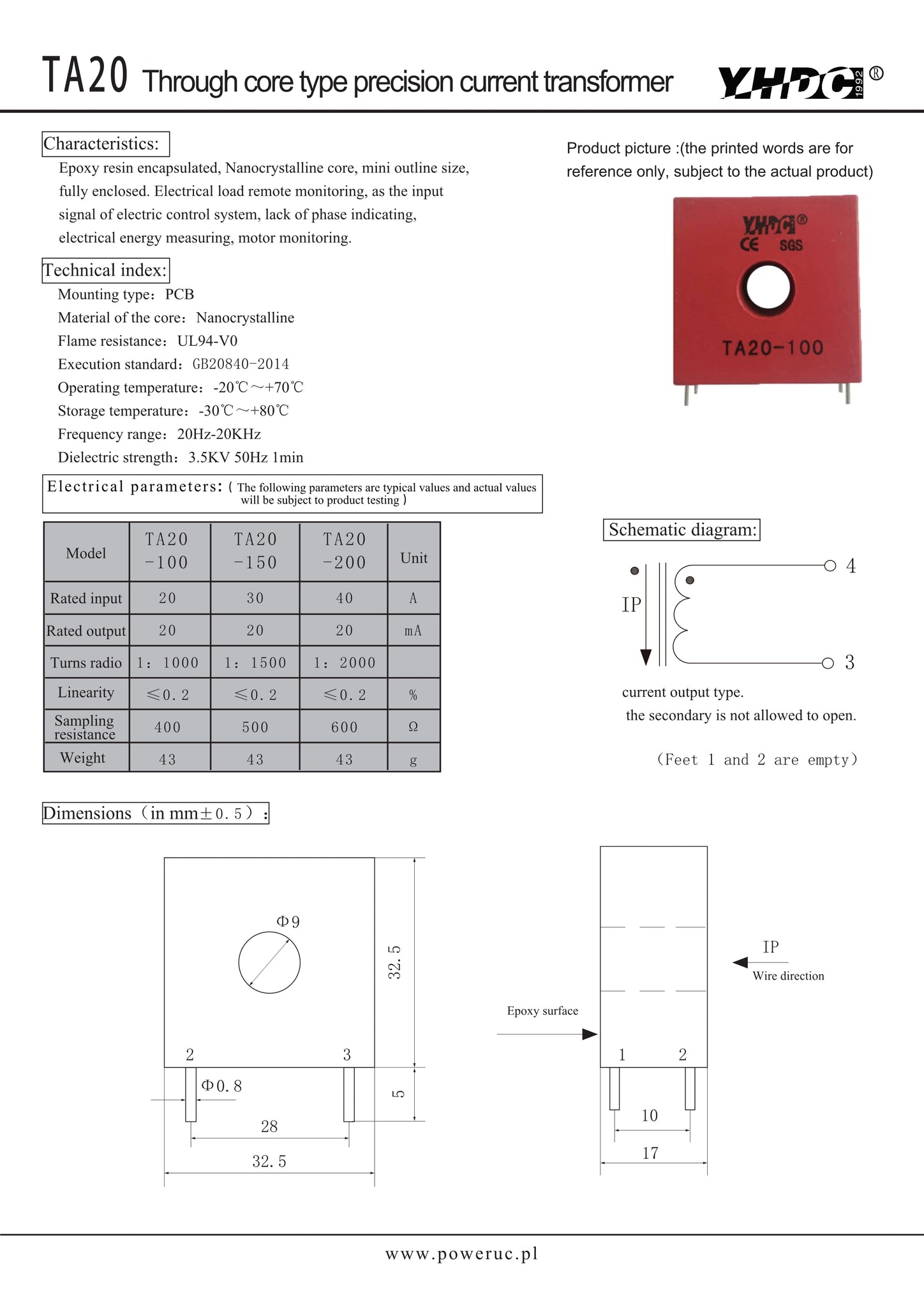

Model:TA20

Characteristics:

Electrical load current remote monitoring, as electric control system input signal, lack of phase indicating, electrical energy measuring, motor monitoring.

Technical index:

Mounting type：PCB

Material of the core：Nanocrystalline

Flame resistance：UL94-V0

Execution standard：GB20840-2014

Operating temperature：-20℃～+70℃

Storage temperature：-30℃～+80℃

Frequency range：20Hz-20KHz

Dielectric strength：≥3.5KV 50Hz 1min

Electrical parameters:
