Through core type precision current transformer TA17 Rated input 0-10A / 0-20A / 0-30A Rated output 0-10mA

Through core type precision current transformer TA17 Rated input 0-10A / 0-20A / 0-30A Rated output 0-10mA

PowerUC

Shipping calculated at checkout.
Only 97 left!

Model: TA17

Characteristics:

Epoxy resin encapsulated, Nanocrystalline core, mini outline size, fully enclosed. Electrical load remote monitoring, as the input signal of electric control system, lack of phase indicating, electrical energy measuring, motor monitoring.

Technical index:

Mounting type: PCB

Material of the core: Nanocrystalline

Flame resistance: UL94-V0

Execution standard: GB20840-2014

Operating temperature: -20℃～+70℃

Storage temperature: -30℃～+80℃

Frequency range: 20Hz-20KHz

Dielectric strength: ≥3.5KV 50Hz 1min

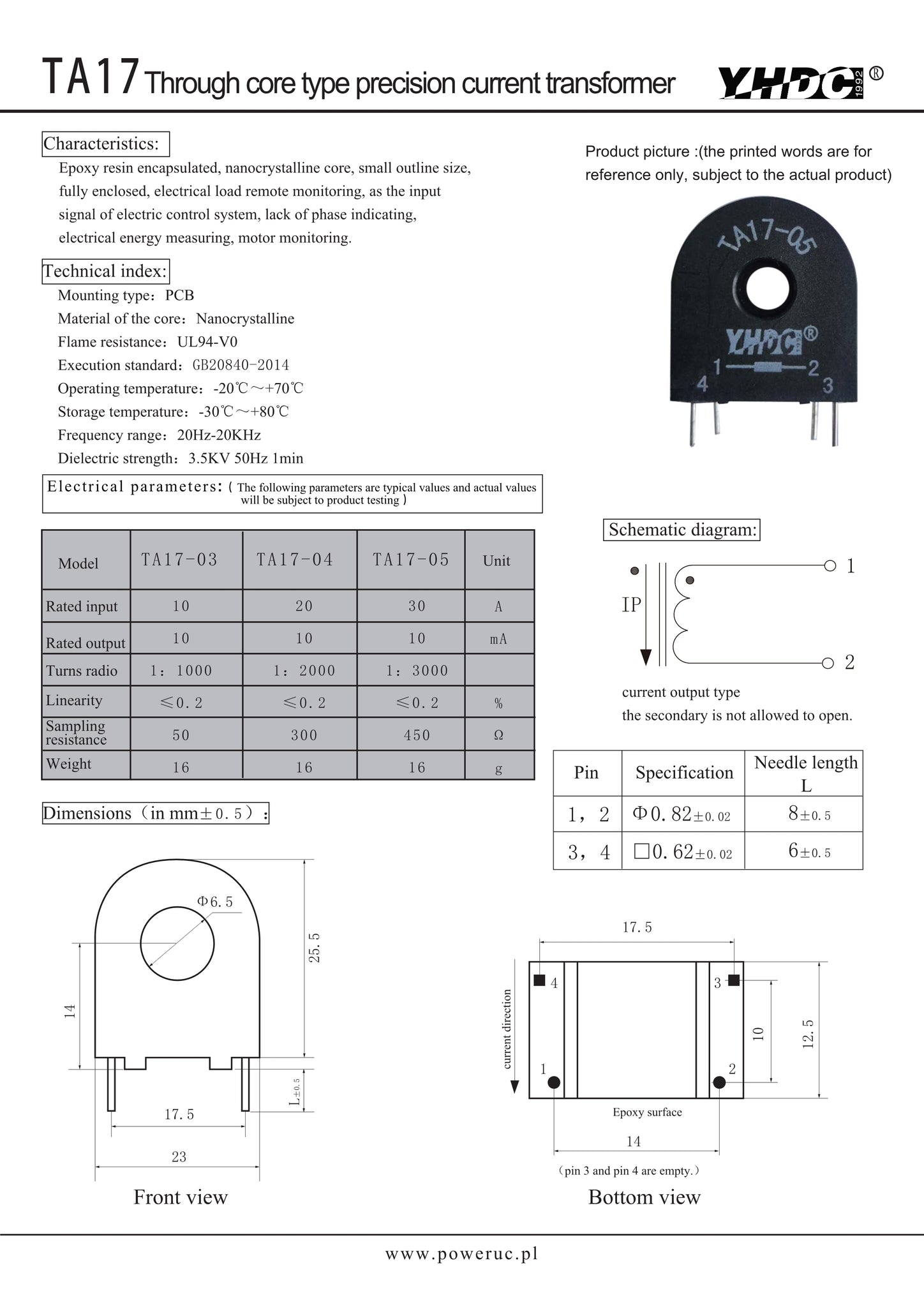

Specification:

DOWNLOAD
