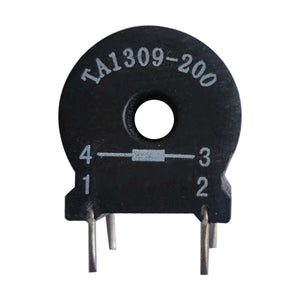

Through core type precision current transformer TA1309 Rated input 0-5A Rated output 0-5mA;0-2.5mA - PowerUC

Through core type precision current transformer TA1309 Rated input 0-5A Rated output 0-5mA;0-2.5mA

PowerUC

  • €0,80
    Unit price per
Shipping calculated at checkout.

Only 25 left!

Characteristics:
Epoxy resin encapsulated, nanocrystalline core, high accuracy..

Technical Index:
Mounting type: PCB
Material of the core: Nanocrystalline
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: ≥3.5KV 50Hz 1min

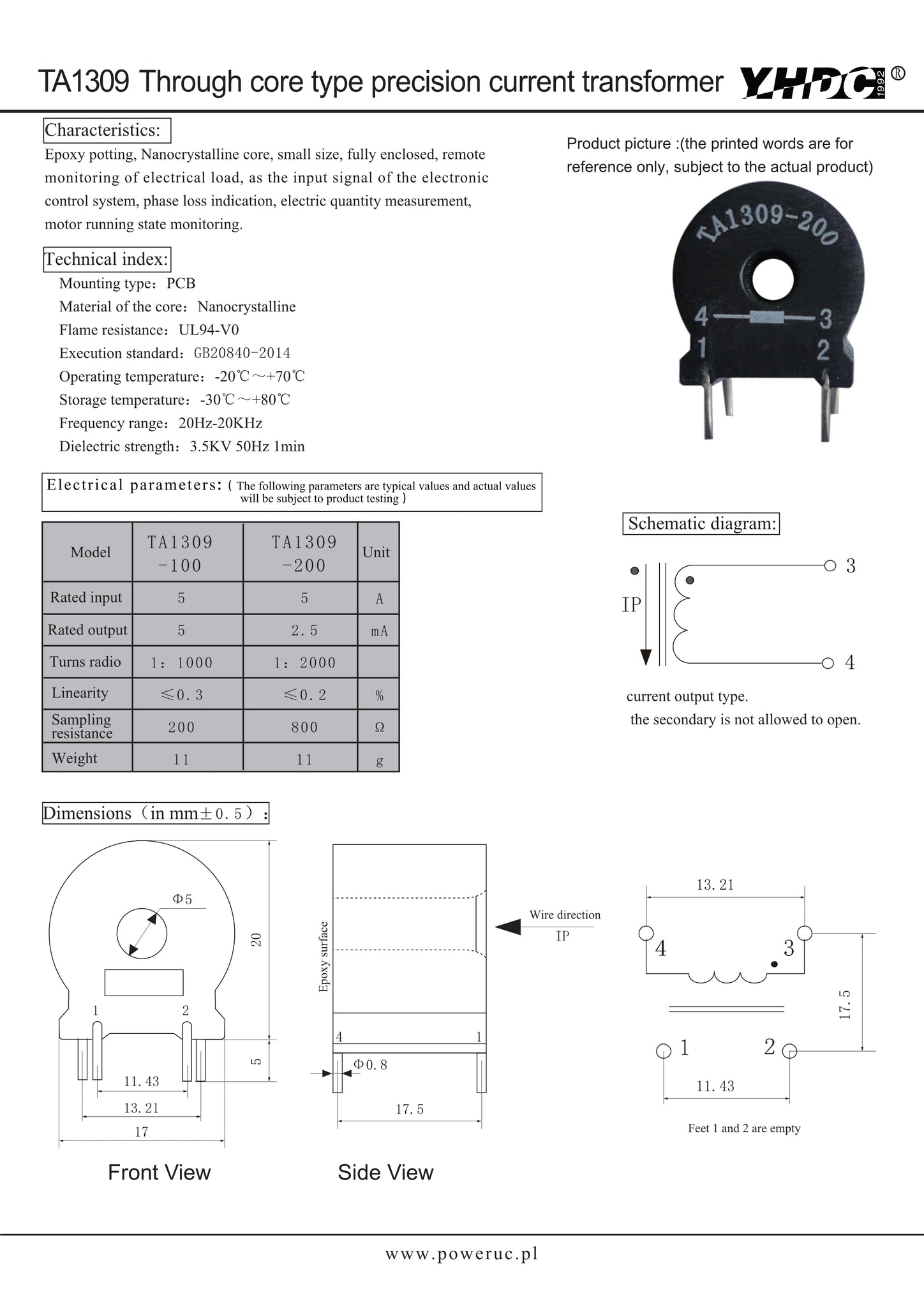

Electrical Parameter:

DOWNLOAD
