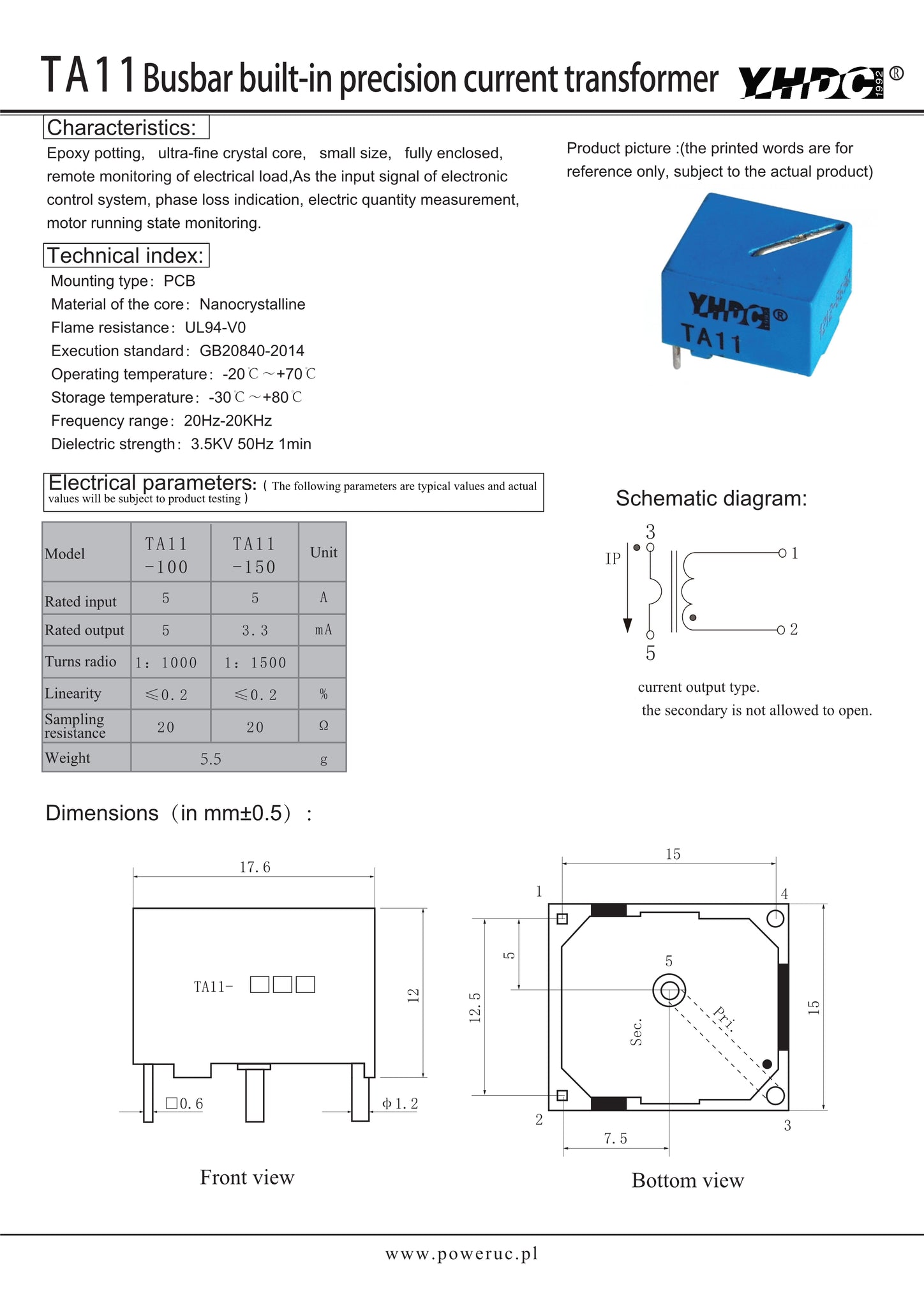

Through core type precision current transformer TA11 Rated input 0-5A Rated output 0-5mA / 0-3.3mA

Through core type precision current transformer TA11 Rated input 0-5A Rated output 0-5mA / 0-3.3mA

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model: TA11

Characteristics:

Epoxy potting, ultra-fine crystal core, small size, fully enclosed, remote monitoring of electrical load,As the input signal of electronic control system, phase loss indication, electric quantity measurement, motor running state monitoring.

Technical index:

Mounting type: PCB

Material of the core: Nanocrystalline

Flame resistance: UL94-V0

Execution standard: GB20840-2014

Operating temperature: -20℃～+70℃

Storage temperature: -30℃～+80℃

Frequency range: 20Hz-20KHz

Dielectric strength: 3.5KV 50Hz 1min

Specifications:



 DOWNLOAD
