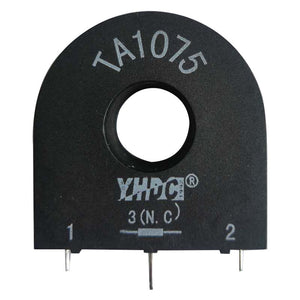

Through core type precision current transformer TA1075 Rated input 60A/75A Rated output 60mA/75mA

Custom Quote Free Sample

Epoxy resin encapsulated, mini outline size, fully enclosed.  Well replace foreign similar products.

Technical Index:
Mounting type: PCB
Material of the core: Nanocrystalline
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -35°C ~ +85°C
Storage temperature: -45°C ~ +95°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: ≥3.5KV 50Hz 1min

Electrical Parameter:

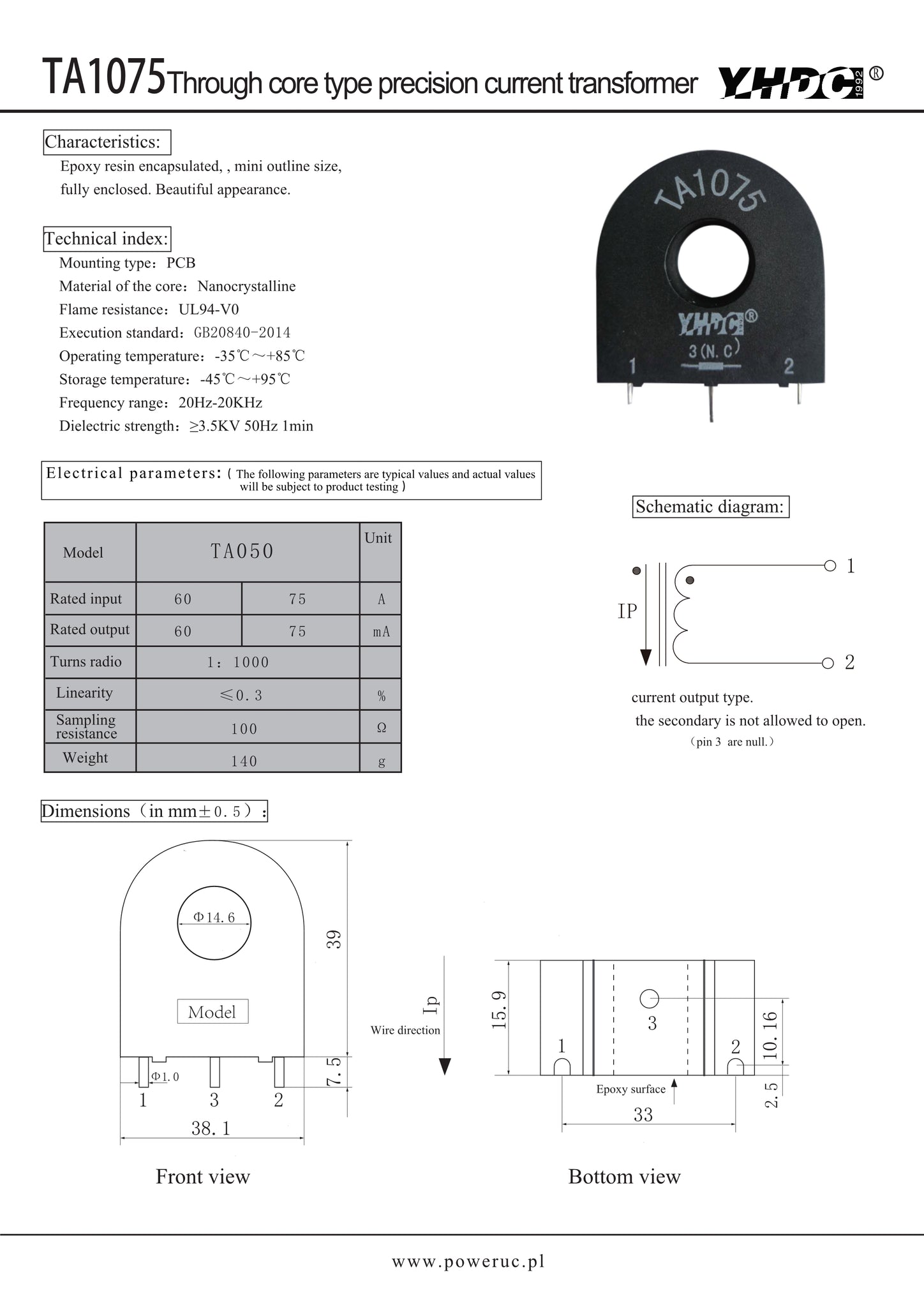

Download Spec Sheet
