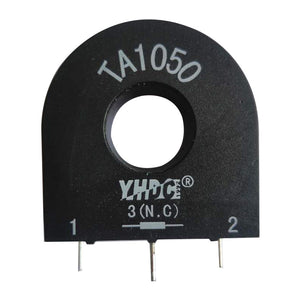

Through core type precision current transformer TA1050 Rated input 40A/50A Rated output 40mA/50mA

Through core type precision current transformer TA1050 Rated input 40A/50A Rated output 40mA/50mA

PowerUC

Shipping calculated at checkout.
Only 15 left!

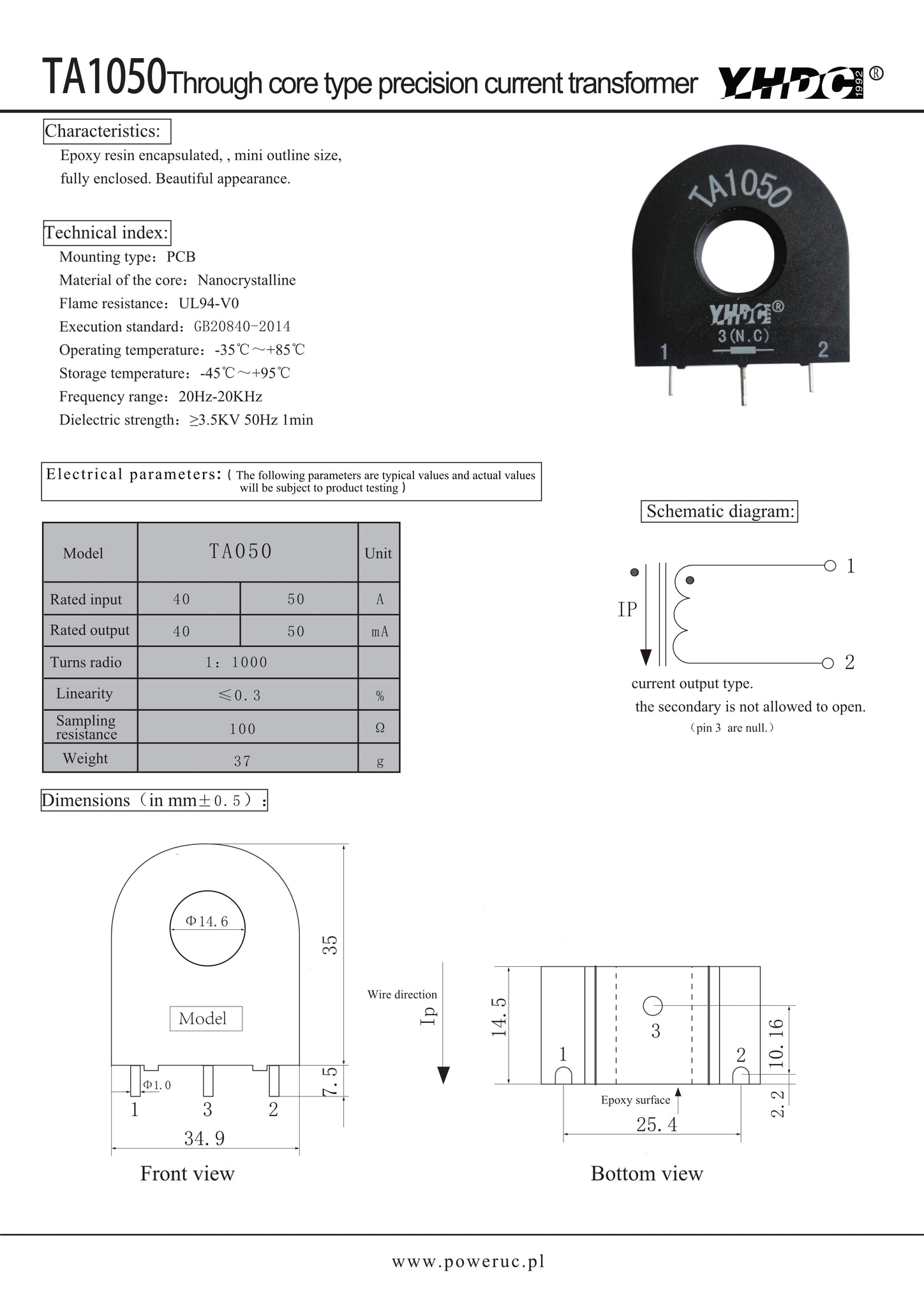

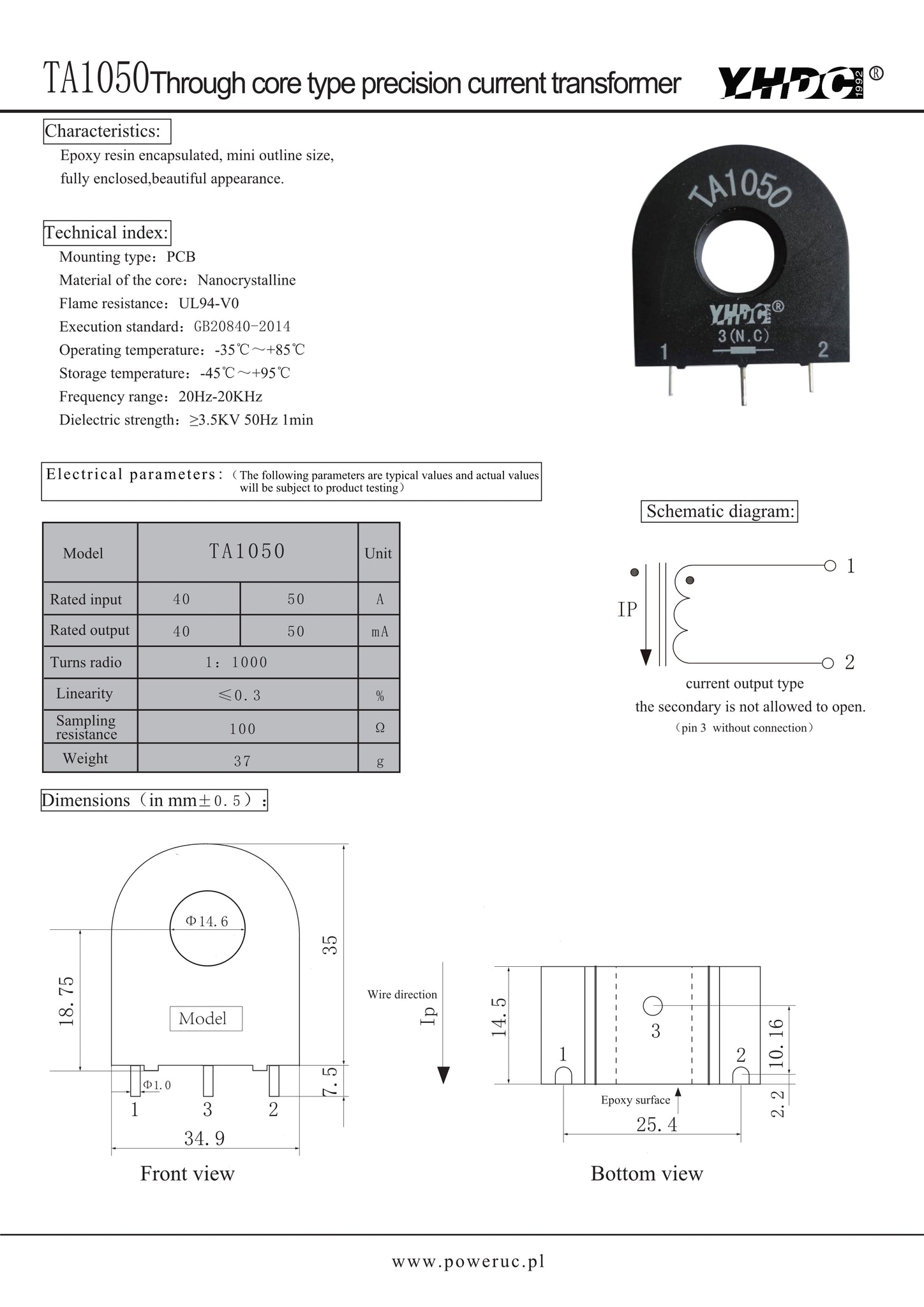

Characteristics:

Epoxy resin encapsulated, mini outline size, fully enclosed,beautiful appearance.

Technical Index:
Mounting type: PCB
Material of the core: Nanocrystalline
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -35°C ~ +85°C
Storage temperature: -45°C ~ +95°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: ≥3.5KV 50Hz 1min

Electrical Parameter:

DOWNLOAD
