Three-phase voltage transformer STV45T rated input 110 220 380 400 660V - PowerUC

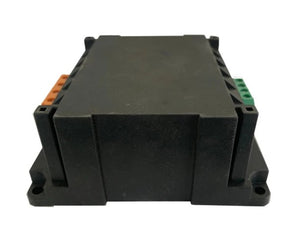

Three-phase voltage transformer STV45T rated input 110V 220V 380V 400V 660V rated output 5V 10V 100V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model: STV45T

Characteristics:
Sub-plate mounting or din rail mounting.  Crimp terminal connection, used to getting the sampling voltage, displaying the meter driving.  High dielectric strength.

Technical Index:
Material of core: Silicon steel
Flame resistance: UL94-V0
Standard: GB1208-2006
Operating temperature: -30°C ~ +70°C
Work frequency: 50Hz ~ 60Hz
Dielectric strength:Formal test: primary/secondary 3.5KV AC/1min 5mA

                              Factory test: primary/secondary 3.5KVmax AC/1s 5mA

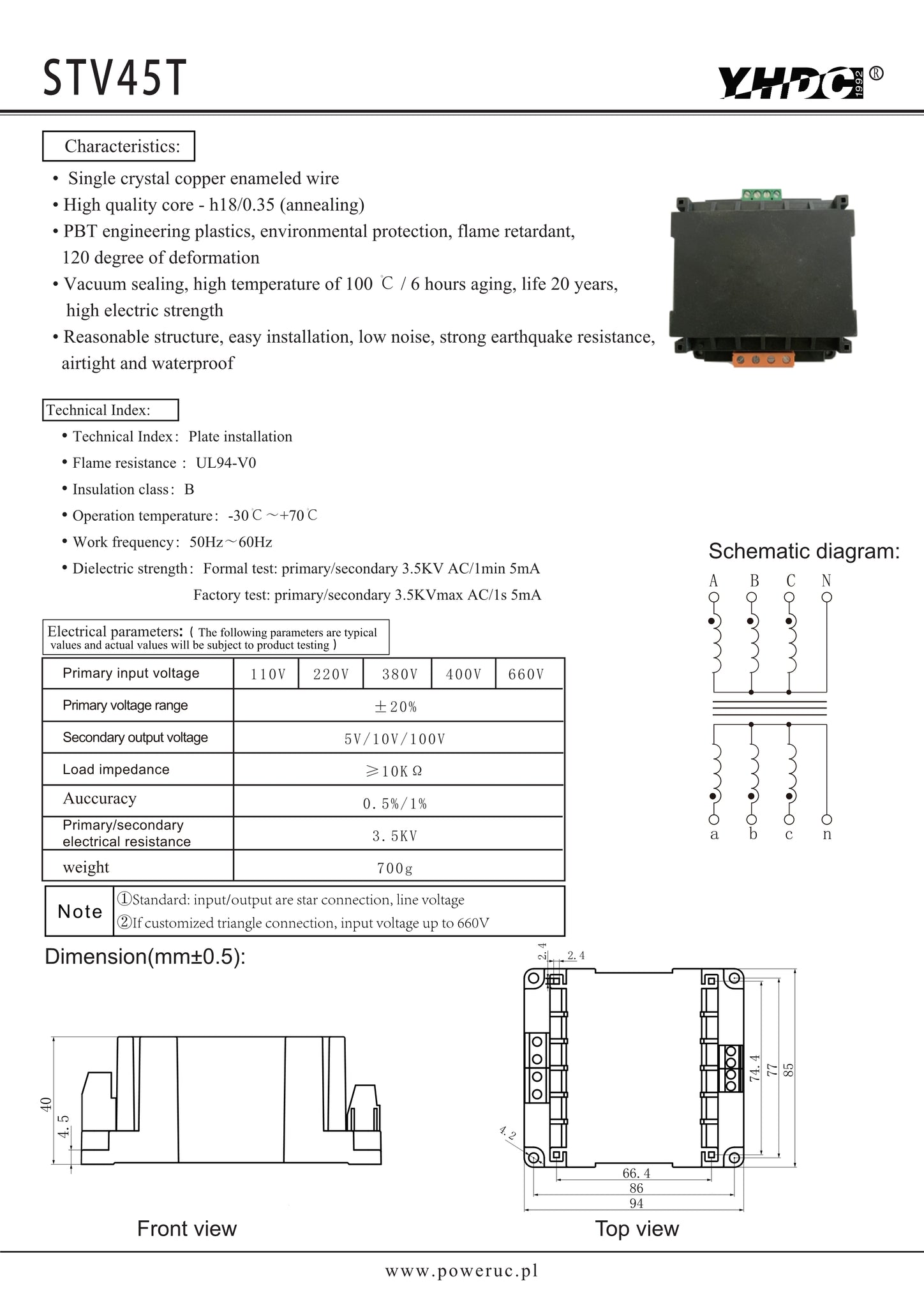

Electrical Parameter:




DOWNLOAD
