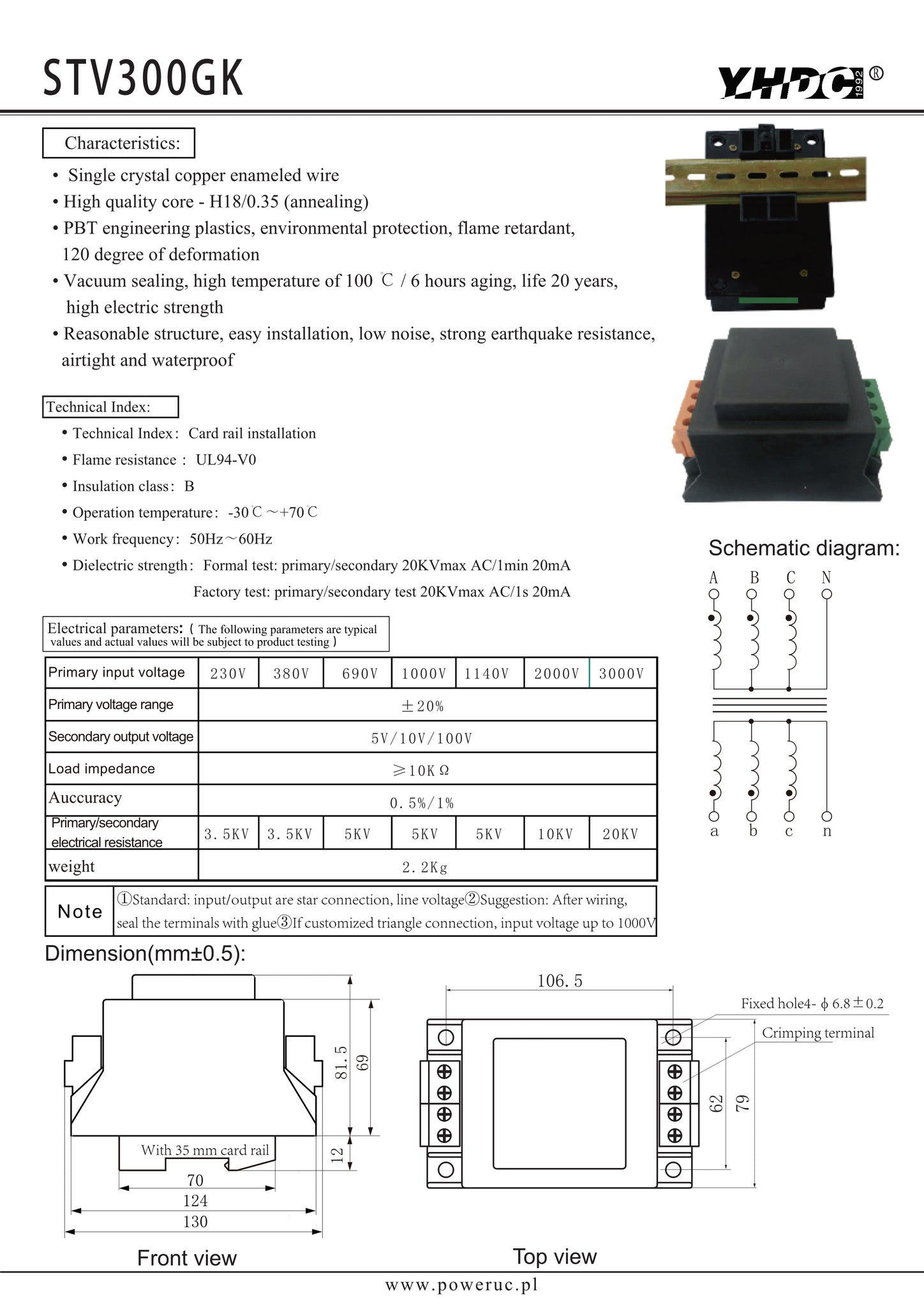

Three-phase voltage transformer STV300GK rated input 230V 380V 690V 1000V 1140V 2000V 3000V rated output 5V 10V 100V
Model: STV300GK
Characteristics:
Single crystal copper enameled wire
High quality core - h18/0.35 (annealing)
PBT engineering plastics, environmental protection, flame retardant, 120 degree of deformation
Vacuum sealing, high temperature of 100 ℃ / 6 hours aging, life 20 years, high electric strength
Reasonable structure, easy installation, low noise, strong earthquake resistance, airtight and waterproof
Technical Index:
Technical Index:Card rail installation
Flame resistance: UL94-V0
Insulation class:B
Operating temperature: -30°C ~ +70°C
Work frequency: 50Hz ~ 60Hz
Dielectric strength:Formal test: primary/secondary20KVmax AC/1min 20mA
Factory test: primary/secondary test20KVmax AC/1s 20mA
