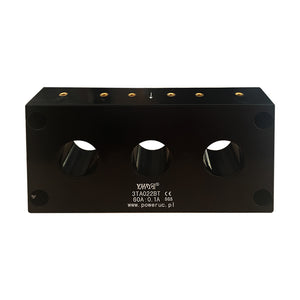

Three-phase integrated current transformer 3TA022BT Rated input 100A 200A 300A Rated output 100mA
3TA022BT
Characteristic：
Three-phase integrated current transformer, convert the primary high current to the secondary low current for easy measurement, protection and control. This type of transformer is used in power systems, industrial automation chemical, electronic measurement and other fields have a wide range of applications.
Technical index：
Mounting type：Plate mount
Material of core：Laminated silicon steel
Flame resistance： UL94-V0
Applicable standards：GB20840-2014
Operating temperature：-20℃～+70℃
Storage temperature：-30℃～+80℃
Frequency range：50Hz-60Hz
Dielectric strength：3.5KV 50Hz 1min
Electrical parameters:（The following parameters are typicalvalues and actual values will be subject to product testing）
