Three-phase current transformer 3TA17B Rated input 0-10A；0-20A；0-30A；0-40A Rated output 0-10mA

Three-phase current transformer 3TA17B Rated input 0-10A；0-20A；0-30A；0-40A Rated output 0-10mA

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

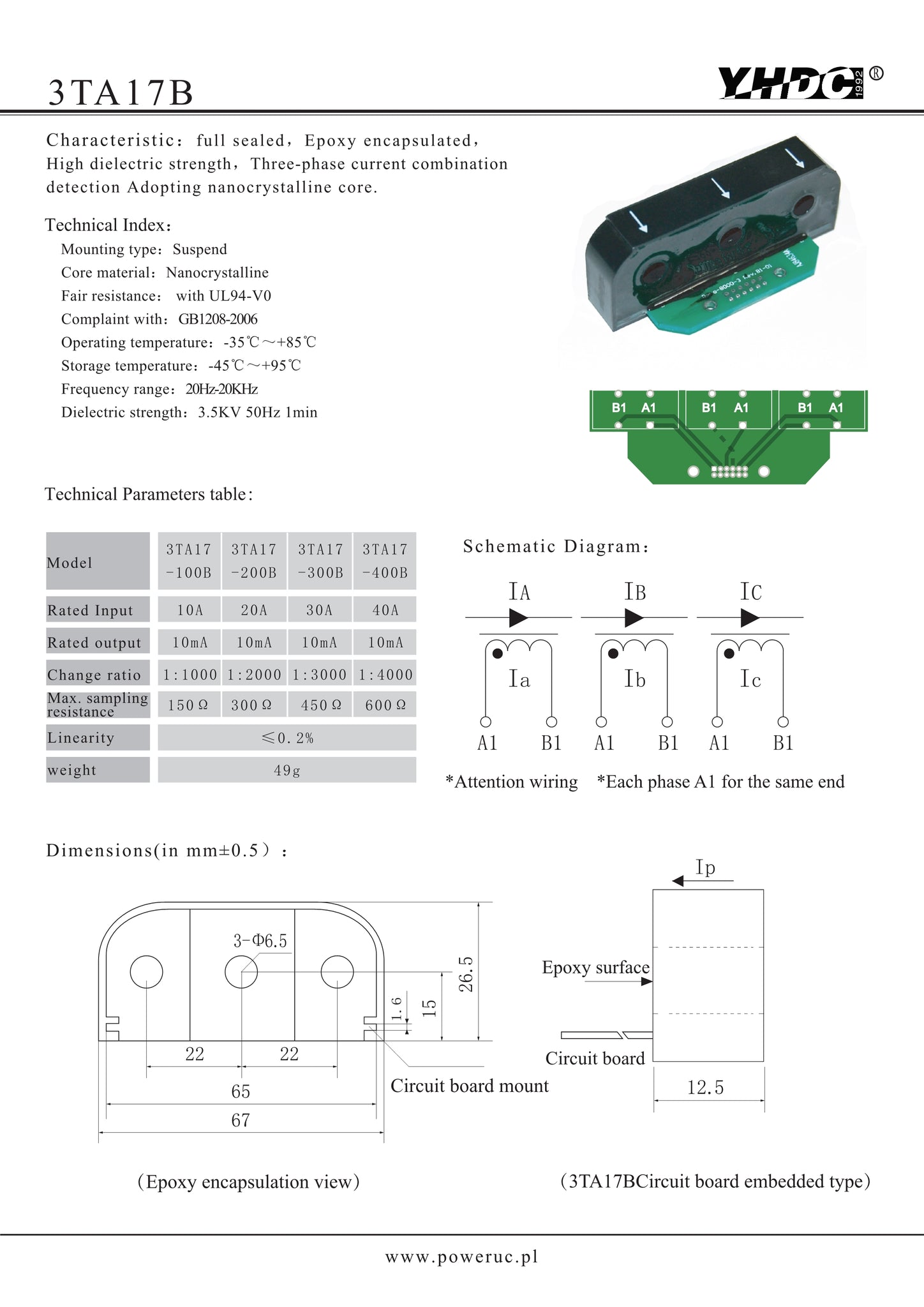

Model:3TA17B

Characteristics: full sealed,epoxy encapsulated,high dielectric strength, three phase current combination detection,adopting nanocrystalline core.

Technical index:

Mounting type：Suspend

Material of the core：Nanocrystalline

Flame resistance：UL94-V0

Execution standard：GB1208-2006

Operating temperature：-35℃～+85℃

Storage temperature：-45℃～+95℃

Frequency range：20Hz-20KHz

Dielectric strength：3.5KV 50Hz 1min

Electrical parameters:

DOWNLOAD
