Three-phase current transformer 3TA040BL Rated input 0-150A；0-200A；0-250A；0-300A；0-400A Rated output 100mA/1A/5A - PowerUC

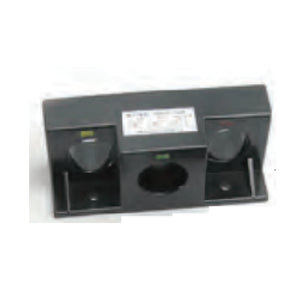

Three-phase current transformer 3TA040BL Rated input 0-150A；0-200A；0-250A；0-300A；0-400A Rated output 100mA/1A/5A

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

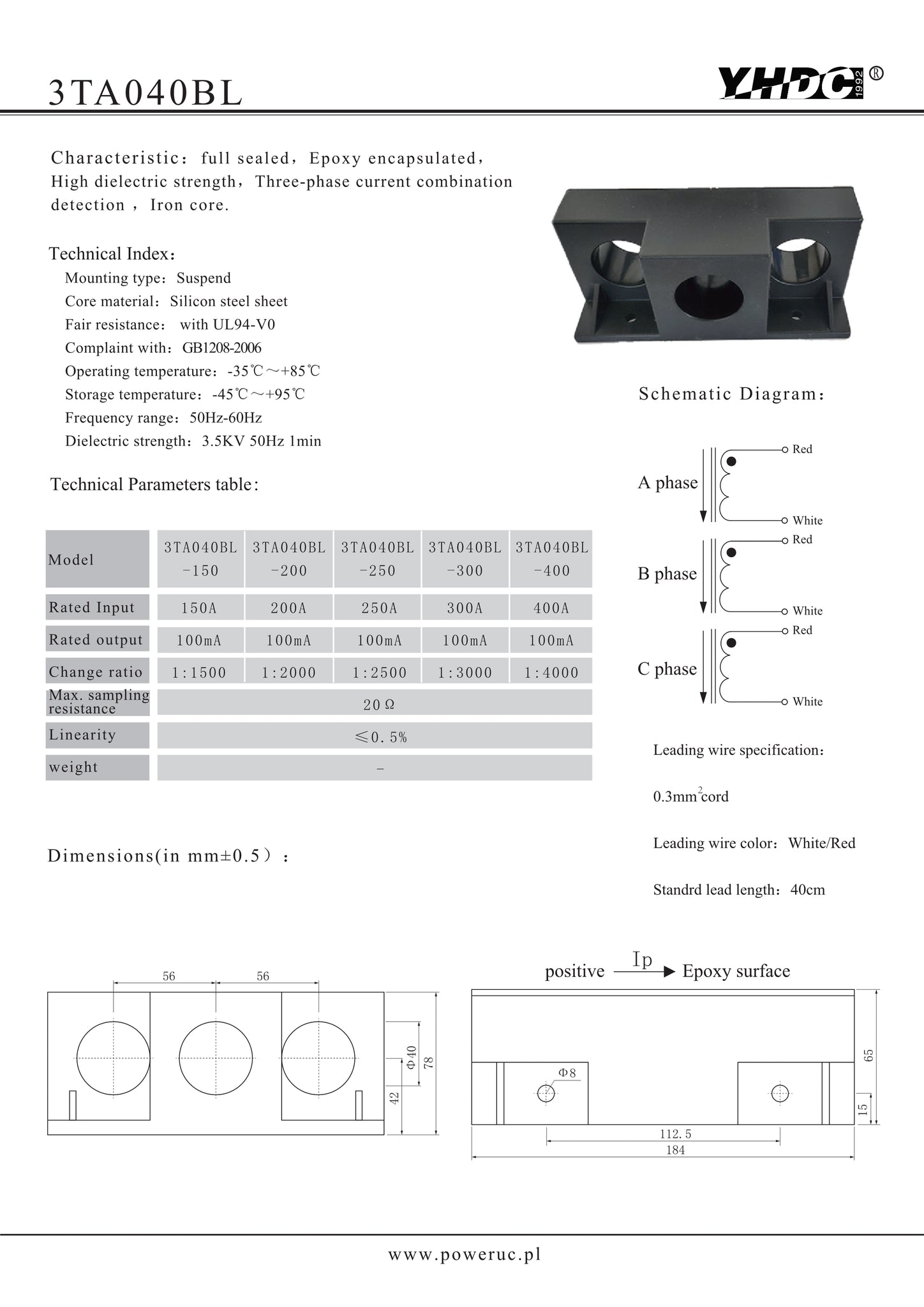

Model:3TA040BL

Characteristics:

full sealed,epoxy encapsulated,high dielectric strength, three phase current combination detection,.

Technical index:

Mounting type：Plate

Material of the core：Silicon steel sheet

Flame resistance：UL94-V0

Execution standard：GB1208-2006

Operating temperature：-35℃～+85℃

Storage temperature：-45℃～+95℃

Frequency range：50Hz-60Hz

Dielectric strength：3.5KV 50Hz 1min

Electrical parameters:


DOWNLOAD-3TA040BL-100mA

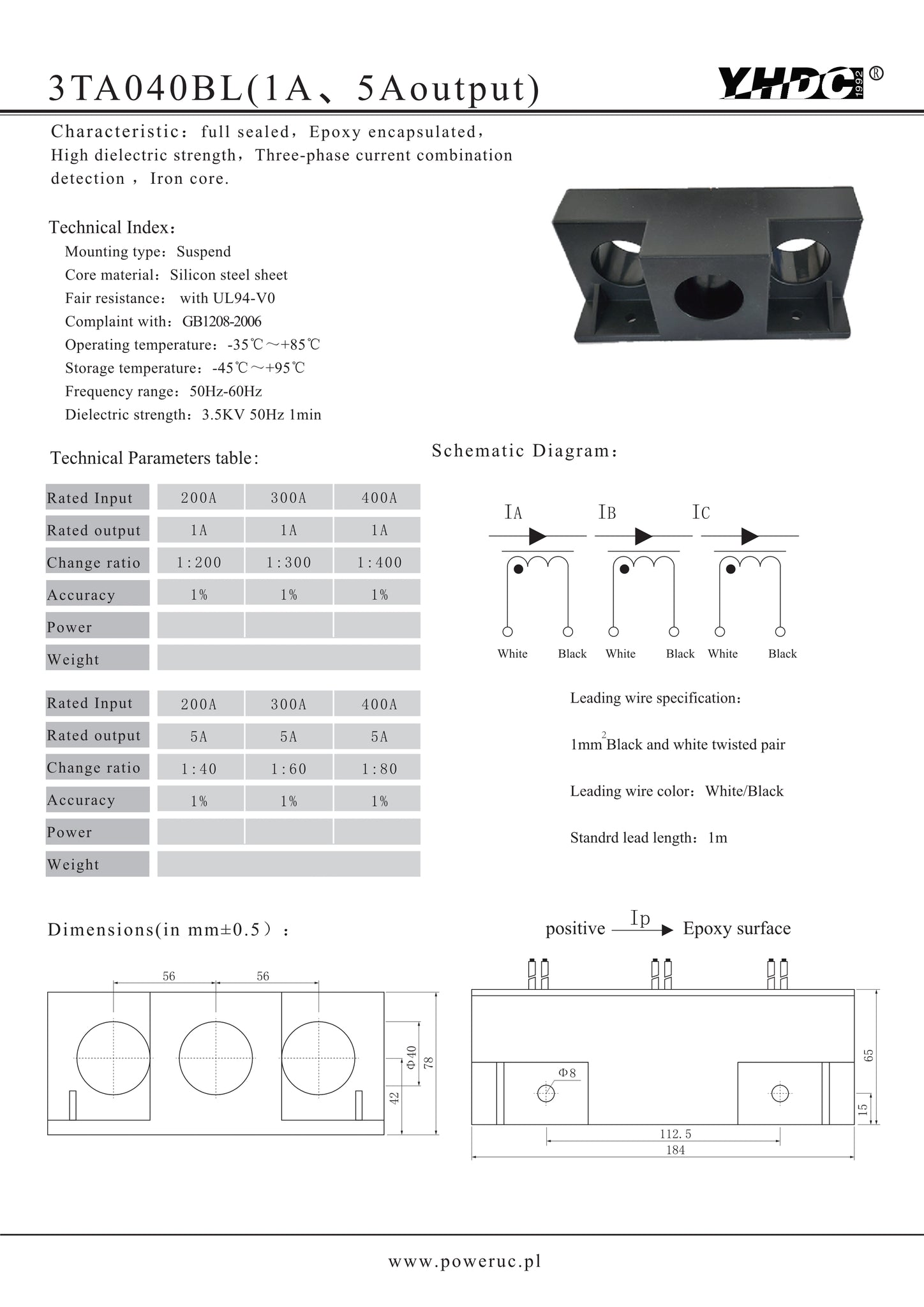

DOWNLOAD-3TA040BL-1A/5A
