Three-phase current transformer 3TA019BL Rated input 0-100A；0-150A；0-200A Rated output 0-50mA - PowerUC

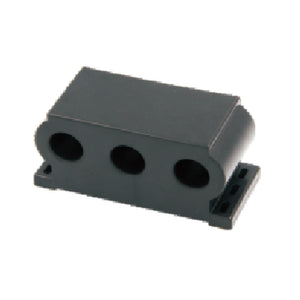

Three-phase current transformer 3TA019BL Rated input 0-100A；0-150A；0-200A Rated output 0-50mA

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model:3TA019BL

Characteristics: full sealed,epoxy encapsulated,high dielectric strength, three phase current combination detection

Technical index:

Mounting type：Suspend

Material of the core：Silicon steel sheet

Flame resistance：UL94-V0

Execution standard：GB1208-2006

Operating temperature：-35℃～+85℃

Storage temperature：-45℃～+95℃

Frequency range：50Hz-60Hz

Dielectric strength：3.5KV 50Hz 1min

Electrical parameters:
