Split core current sensor HSTS016L/G Rated input ±10A ±20A ±30A ±50A ±100A ±150A ±200A Rated output 2.5V±0.625V

Split core current sensor HSTS016L/G Rated input ±10A ±20A ±30A ±50A ±100A ±150A ±200A Rated output 2.5V±0.625V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model：HSTS016L/G

Detect DC,AC and puls e current，High insulation between primary side and the vice side circuit.

Technical indicators:

Flame resistance：UL94-V0

Operating temperature：-10～+70℃

Storage temperature：-25～+70℃

Bandwidth：DC~25kHz

Dielectric strength：2.5KV 50Hz 1min

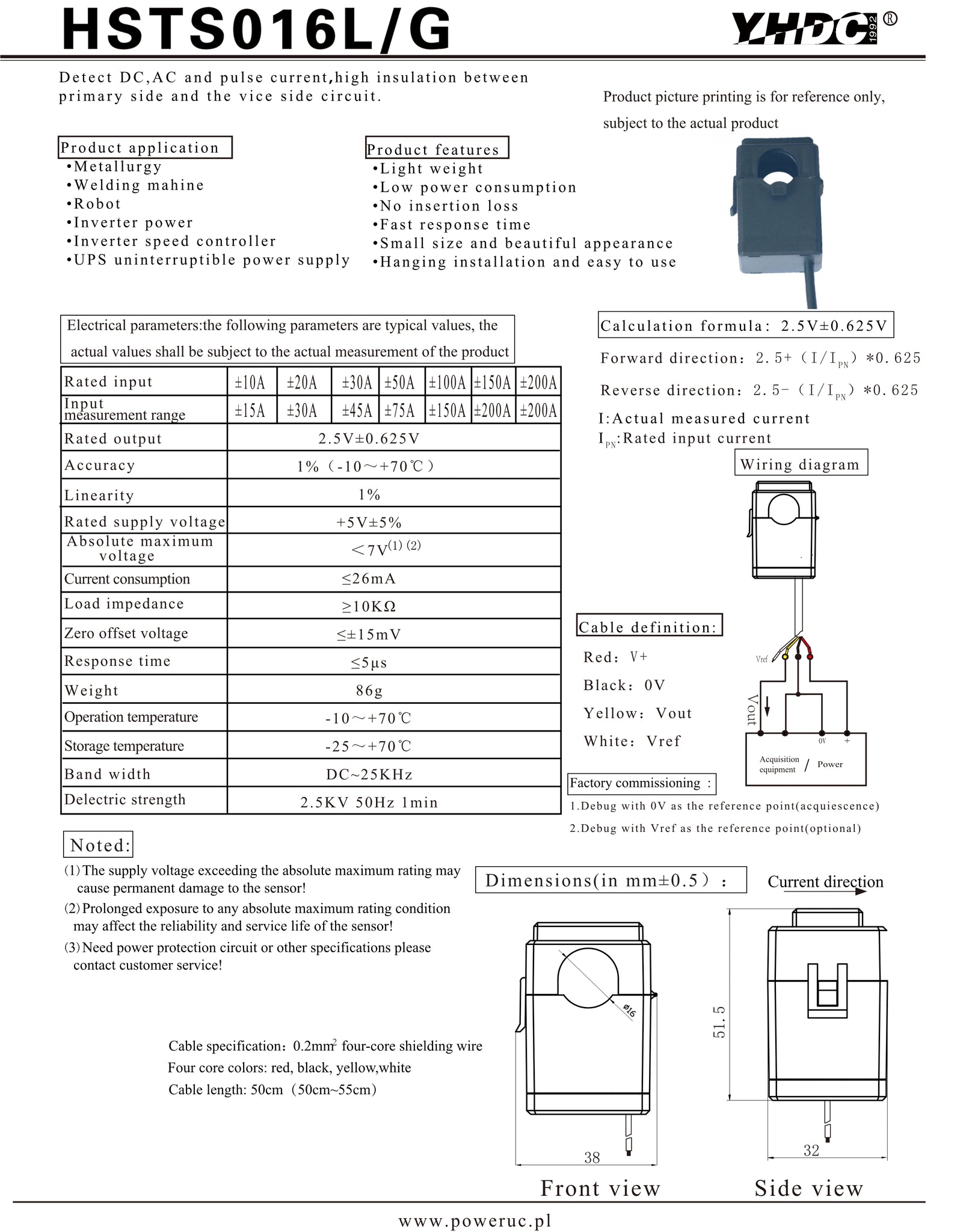

Electric parameters:

DOWNLOAD
