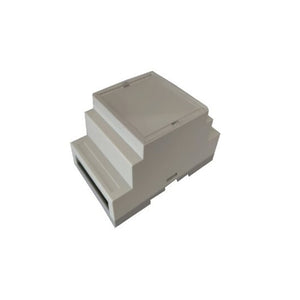

Rogowski coil Integrator TRV series integrator TRV03-001/033/333 AC-3 Rated input 100A 600A 1000A 3000A 6000A Rated output 1V/3.3V/0.333V
Introduction to integrators
The combination of the rogowski coil and integrator can achieve 90° phase shift compensation and frequency equalization, so that the output of rogowski coil is in the same phase as the primary current and is frequency independent, which is suitable for more application scenarios. TRV series integrators are instantaneous voltages that output proportional to primary current and are usually used with power analyzers, oscilloscopes, ammeters, data loggers, data acquisition cards and other devices
