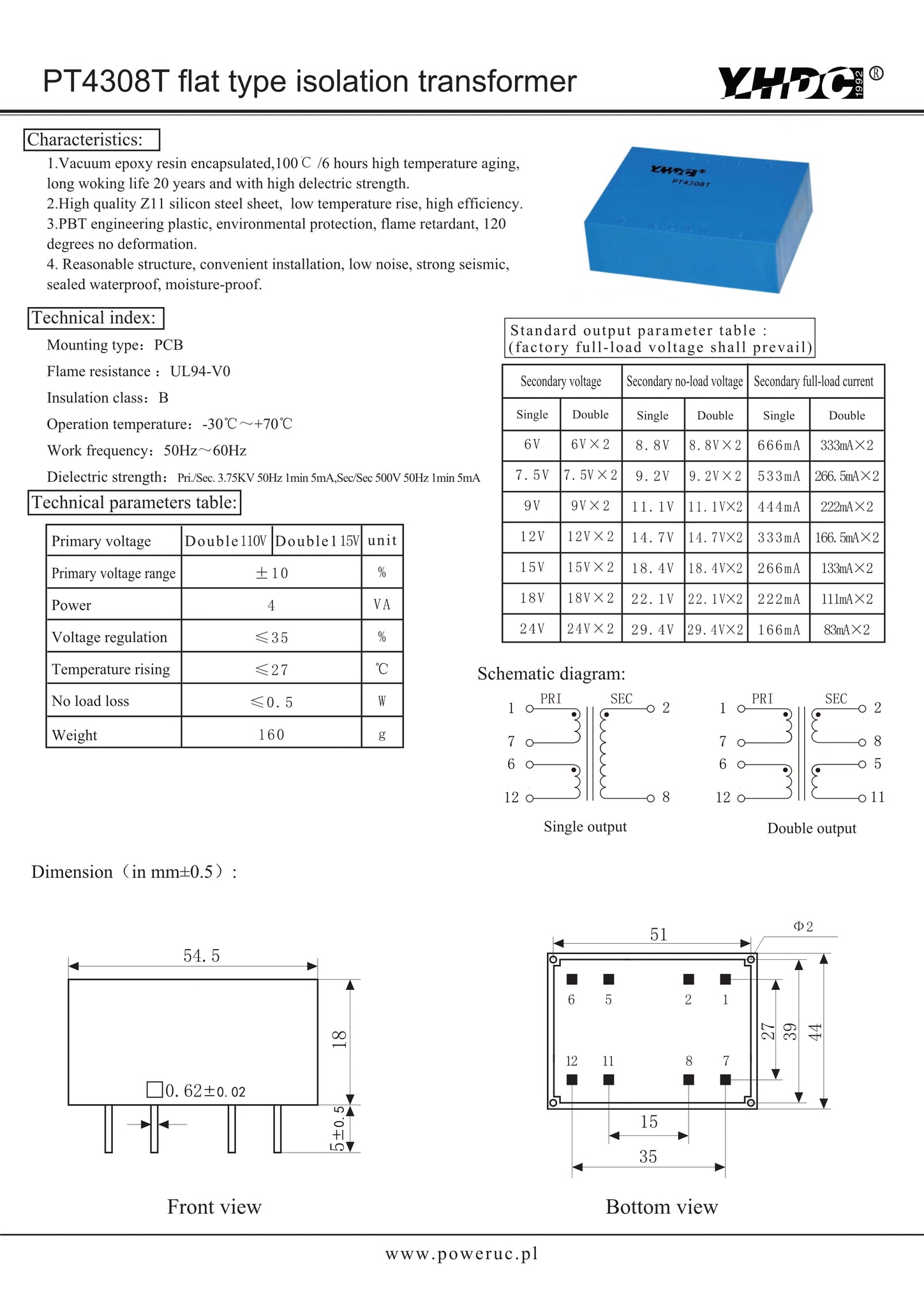

PT series flat type isolation transformer PT4308T 110V×2 / 115V×2 4VA

PowerUC

  • €3,54
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Characteristics:

1.Vacuum epoxy resin encapsulated,100℃ /6 hours high temperature aging, long woking life 20 years and with high delectric strength.

2.High quality Z11 silicon steel sheet, low temperature rise, high efficiency.

3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees no deformation.

4.Reasonable structure, convenient installation, low noise, strong seismic, sealed waterproof, moisture-proof.

Technical Index:
Mounting type: PCB
Flame resistance: UL94-V0
Insulation class: B
Operating temperature: -30°C ~ +70°C
Work frequency: 50Hz ~ 60Hz
Dielectric strength: 3.75KV 50Hz 1min

Technical Parameters:
