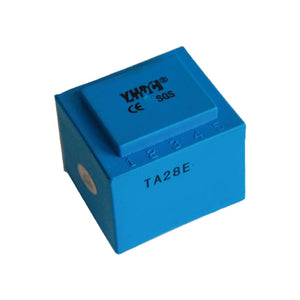

Primary core built-in type current transformer TA28E Rated input 0-50A;0-10A;0-20A Rated output 0-100mA;0-25mA;0-20mA;0-10mA;;0-5mA;0-3.3mA;0-4mA

PowerUC

  • €2,02
    Unit price per
Shipping calculated at checkout.

Only 5 left!

Characteristics:
Primary core built-in, PCB welded; electric control system current feedback, relay protecting, power monitoring.  The material of the core: EI24 silicon steel sheet.

Technical Index:
Mounting type: PCB
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -35°C ~ +85°C
Storage temperature: -45°C ~ +95°C
Frequency range: 20Hz ~ 400Hz
Dielectric strength: 3KV 50Hz 1min

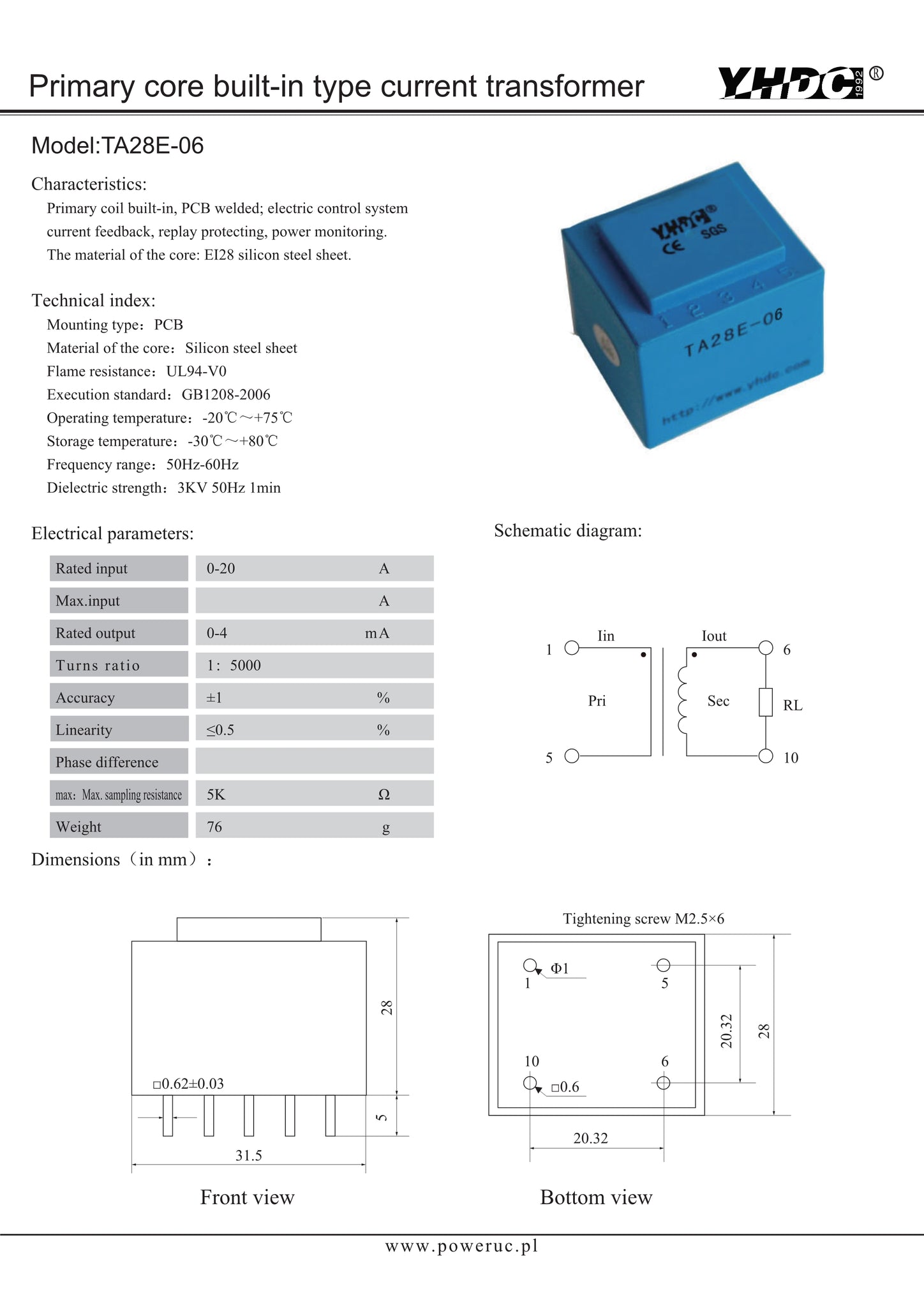

Electrical Parameters:

DOWNLOAD-TA28E-00

DOWNLOAD-TA28E-01

DOWNLOAD-TA28E-02

DOWNLOAD-TA28E-03

DOWNLOAD-TA28E-04

DOWNLOAD-TA28E-05

DOWNLOAD-TA28E-06
