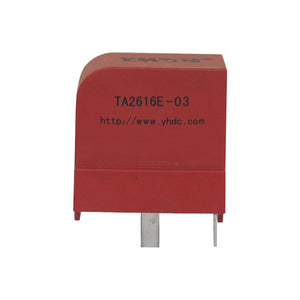

Primary core built-in type current transformer TA2616E Rated input 0-2A;0-5A;0-10A;0-20A Rated output 0-40mA;0-50mA;0-20mA;0-10mA - PowerUC

Primary core built-in type current transformer TA2616E Rated input 0-2A;0-5A;0-10A;0-20A Rated output 0-40mA;0-50mA;0-20mA;0-10mA

PowerUC

  • €2,64
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Characteristics:
Primary core built-in, nanocrystalline core, overcurrent / undercurrent measuring, leakage current detecting, current metering, power monitoring.

Technical Index:
Mounting type: PCB
Material of the core: Nanocyrstalline
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: 3KV 50Hz 1min

Electrical Parameters:

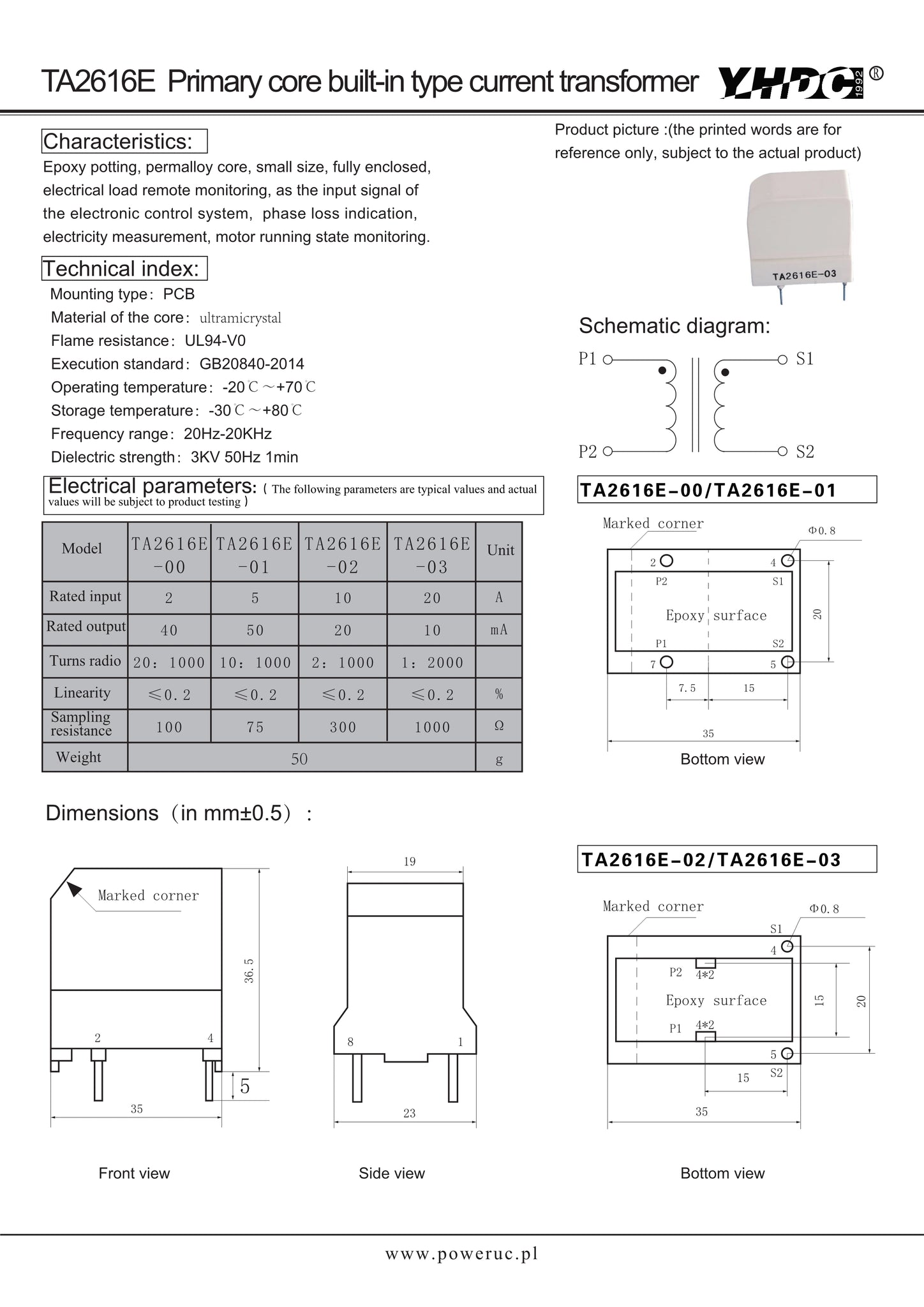

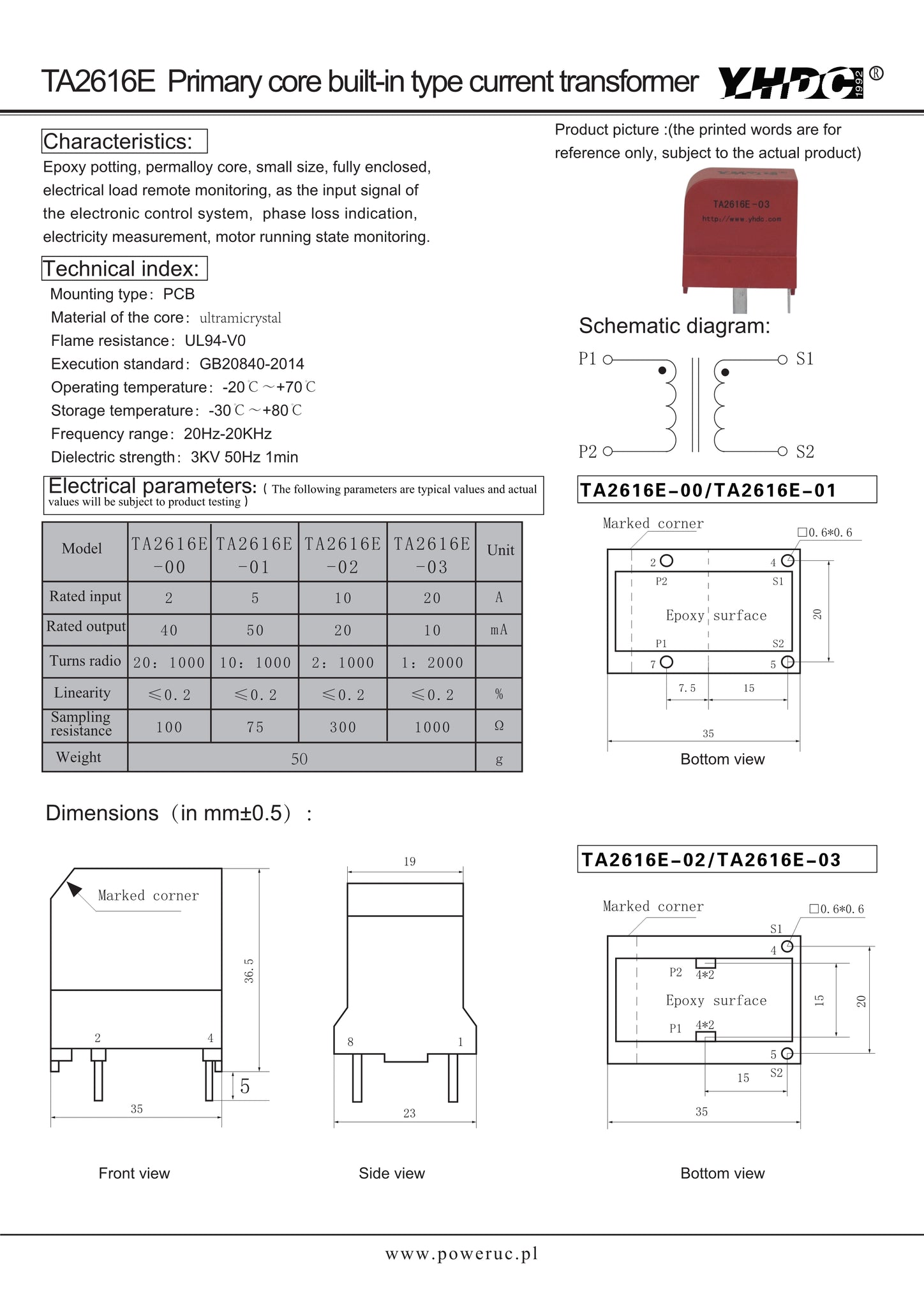

DOWNLOAD
