Primary core built-in type current transformer TA2515BZ Rated input 0-5A Rated output 0-20mA；0-10mA;；0-5mA
Primary core built-in type current transformer TA2515BZ Rated input 0-5A Rated output 0-20mA；0-10mA;；0-5mA - PowerUC

Primary core built-in type current transformer TA2515BZ Rated input 0-5A Rated output 0-20mA；0-10mA;；0-5mA

PowerUC

Shipping calculated at checkout.
Only 1 left!

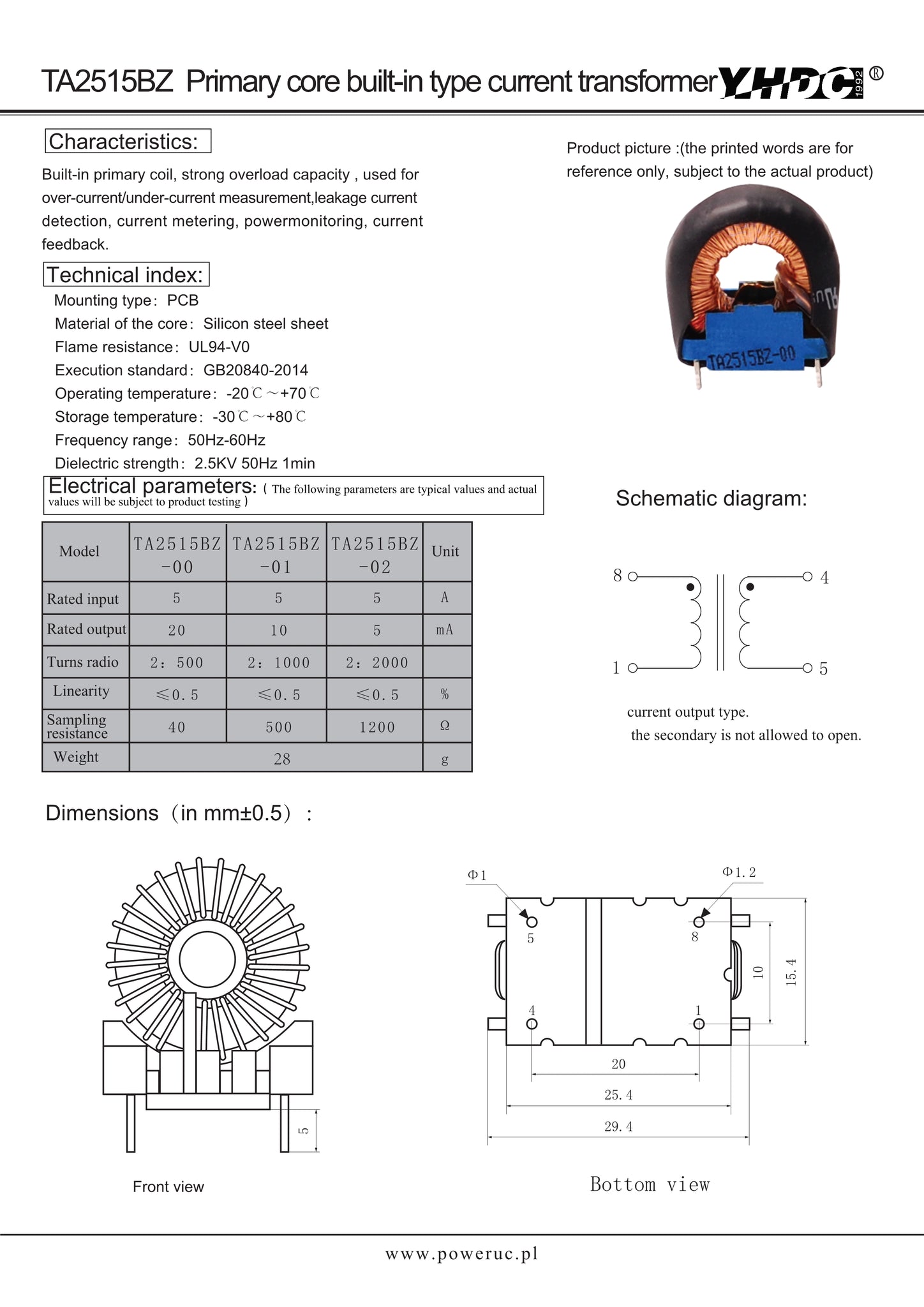

Characteristics:

Primary coil built-in, silicon steel sheet core, strong overload capacity, rated current 5A. overcurrent /undercurrent measuring, leakage current detecting, current metering, power monitoring and current feedback.

Technical index:

Mounting type：PCB

Material of the core：Silicon steel sheet

Flame resistance：UL94-V0

Execution standard：GB20840-2014

Operating temperature：-20℃～+70℃

Storage temperature：-30℃～+80℃

Frequency range：50Hz-60Hz

Dielectric strength：2.5KV 50Hz 1min

Electrical parameters:
