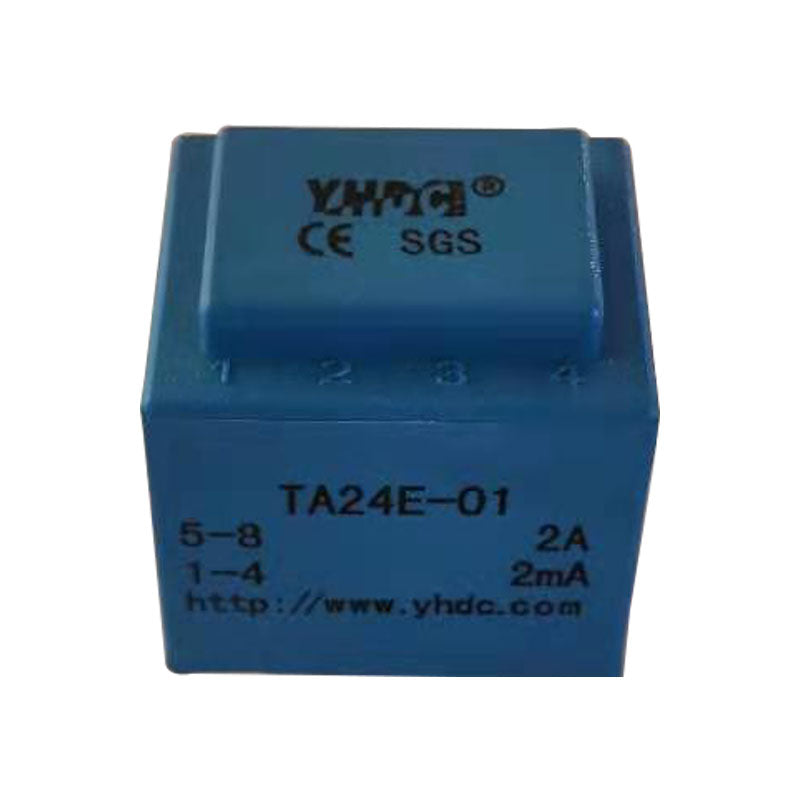

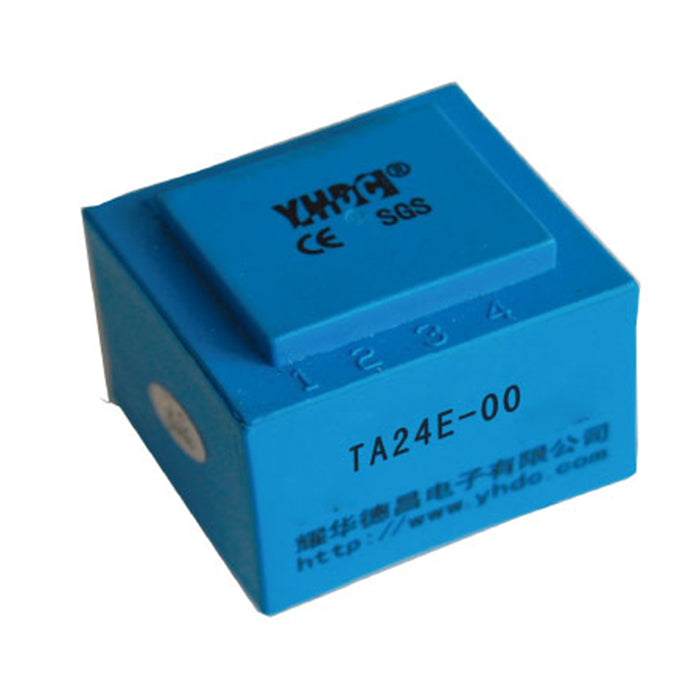

Primary core built-in type current transformer TA24E Rated input 0-2A；0-5A Rated output 0-2mA；0-2.5mA

Primary core built-in type current transformer TA24E Rated input 0-2A；0-5A Rated output 0-2mA；0-2.5mA

PowerUC

Shipping calculated at checkout.
Only 1 left!

Characteristics:
Primary core built-in, PCB welded; electric control system current feedback, relay protecting, power monitoring.  The material of the core: EI24 silicon steel sheet.

Technical Index:
Mounting type: PCB
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 50Hz ~ 60KHz
Dielectric strength: 3KV 50Hz 1min

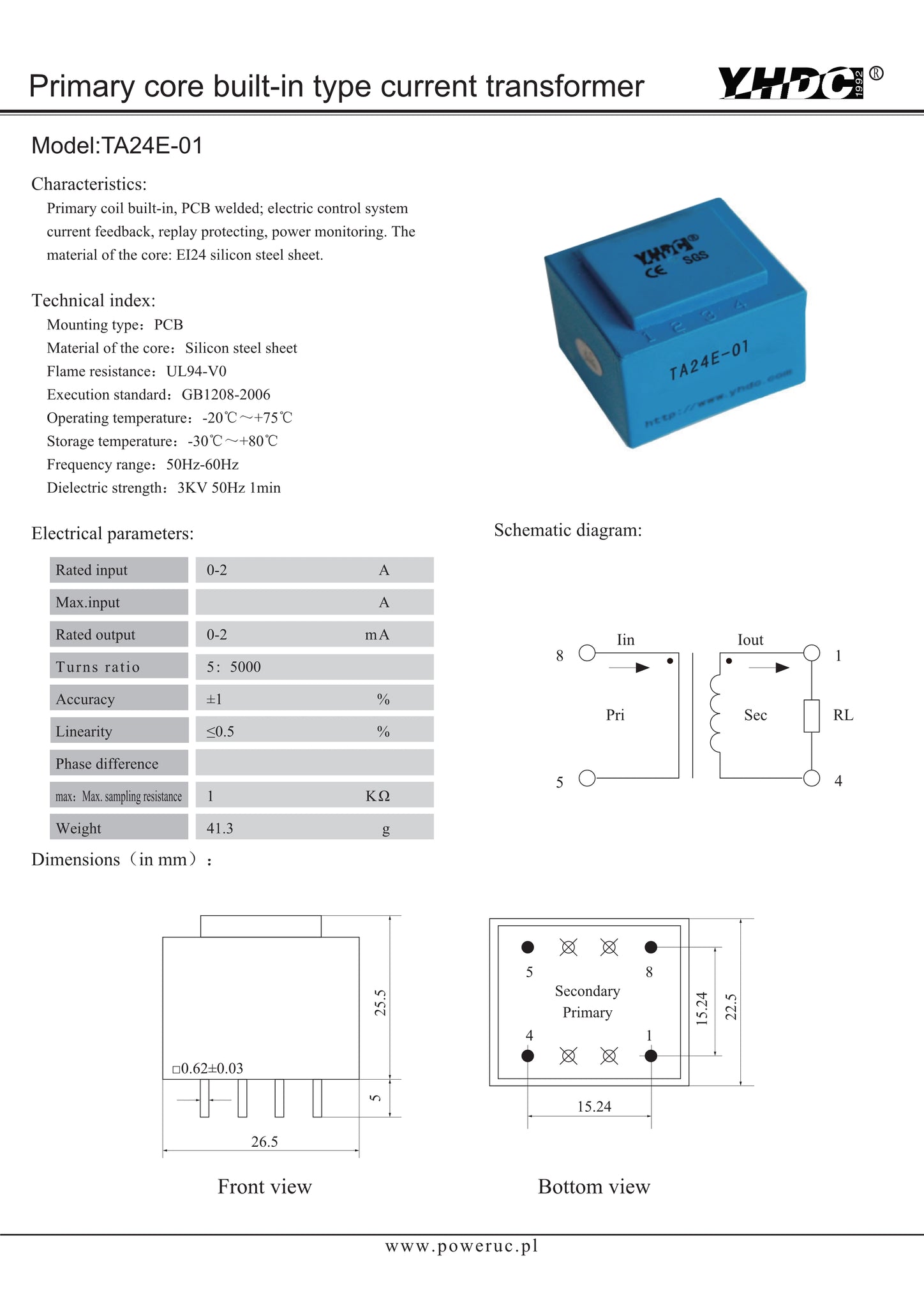

Electrical Parameters:
