Primary core built-in type current transformer TA19E Rated input 0-0.5A；0-2.5A；0-5A；0-1A Rated output 0-1.25mA；0-2.5mA；0-1.5mA;；0-1.67mA - PowerUC
Primary core built-in type current transformer TA19E Rated input 0-0.5A；0-2.5A；0-5A；0-1A Rated output 0-1.25mA；0-2.5mA；0-1.5mA;；0-1.67mA

Primary core built-in type current transformer TA19E Rated input 0-0.5A；0-2.5A；0-5A；0-1A Rated output 0-1.25mA；0-2.5mA；0-1.5mA;；0-1.67mA

PowerUC

Shipping calculated at checkout.
Only 2 left!

Characteristics:
Primary core built-in, permalloy core, excellent linearity.  High accuracy, especially suitable for low current measurement application.

Technical Index:
Mounting type: PCB
Material of the core: Permalloy
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: 2KV 50Hz 1min

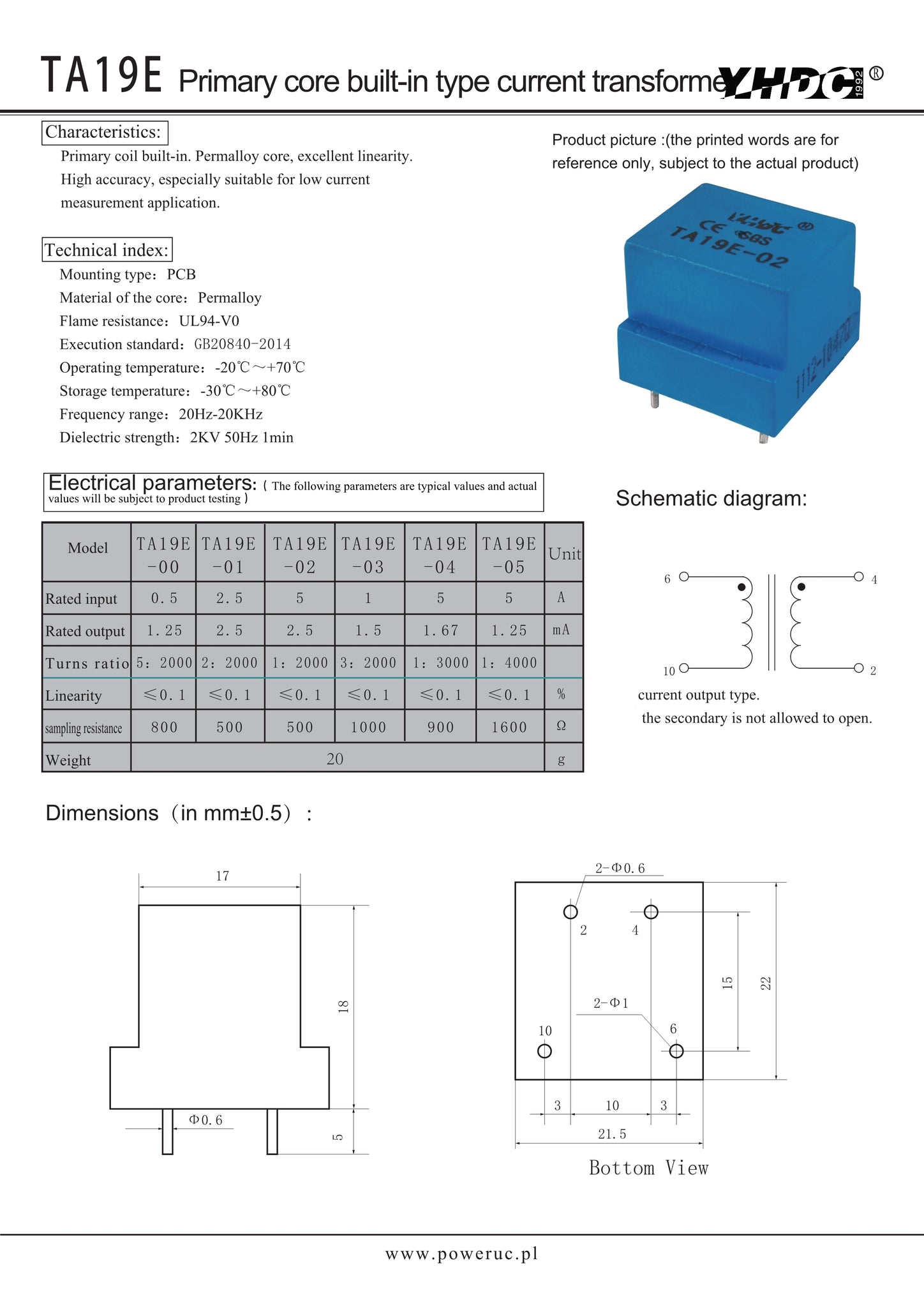

Electrical Parameters:

DOWNLOAD
