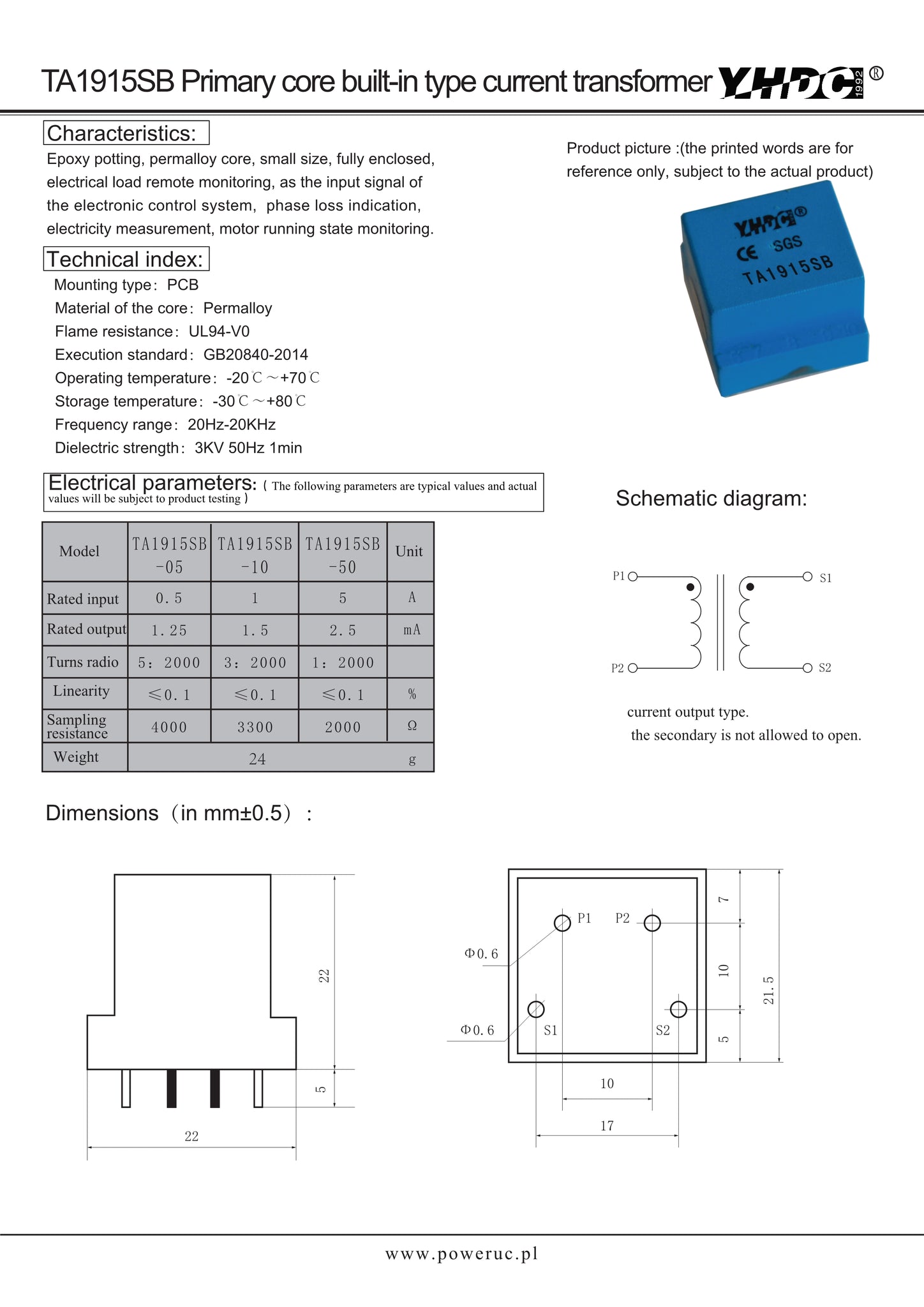

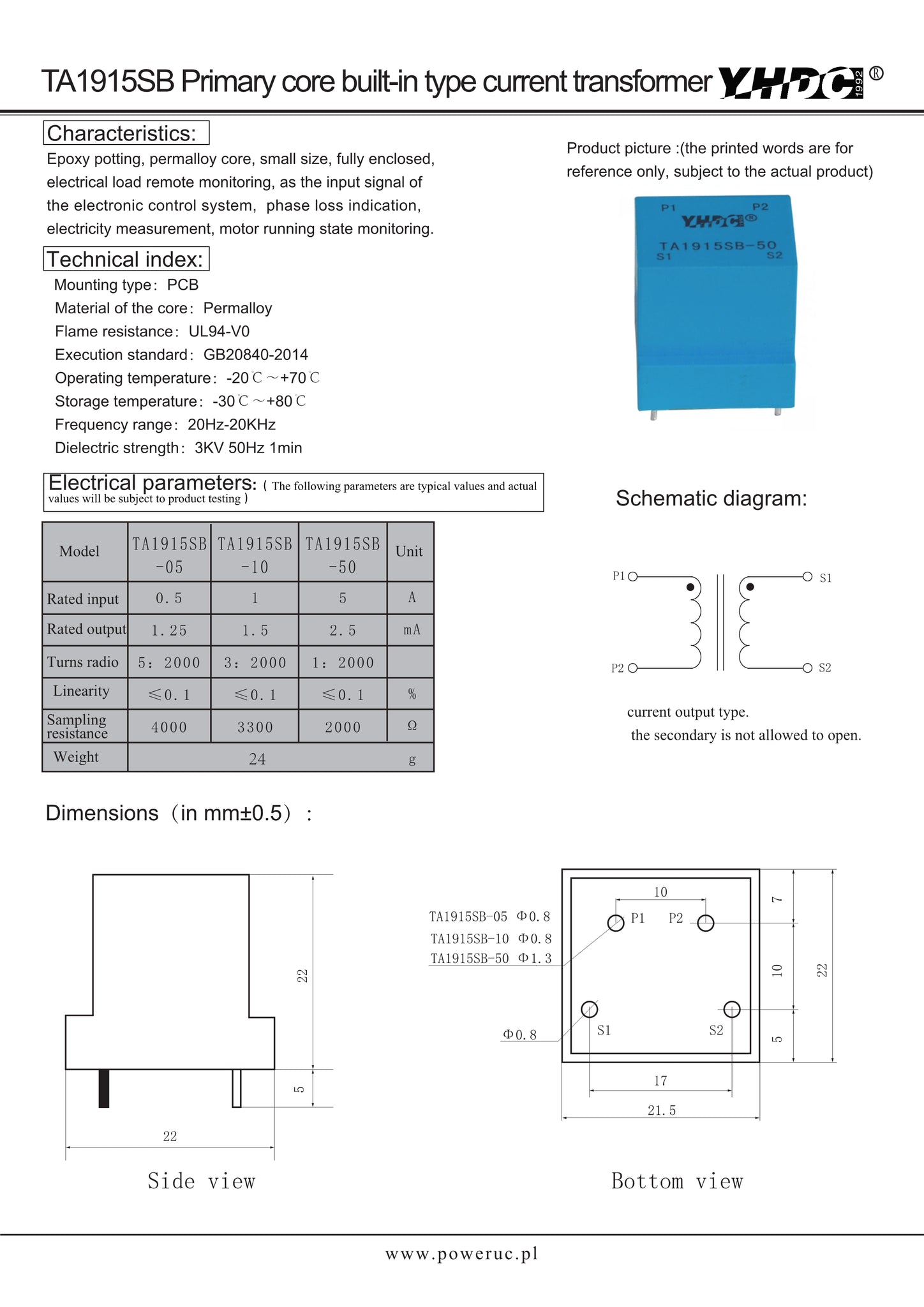

Primary core built-in type current transformer TA1915SB Rated input 0-0.5A；0-1A；0-5A Rated output 0-1.25mA；0-1.5mA；0-2.5mA

Primary core built-in type current transformer TA1915SB Rated input 0-0.5A；0-1A；0-5A Rated output 0-1.25mA；0-1.5mA；0-2.5mA

PowerUC

Shipping calculated at checkout.
Only 1 left!

Characteristics:

Epoxy potting, permalloy core, small size, fully enclosed, electrical load remote monitoring, as the input signal of the electronic control system, phase loss indication, electricity measurement, motor running state monitoring.

Technical Index:
Mounting type: PCB
Material of the core: Permalloy
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: 3KV 50Hz 1min

Electrical Parameters:

DOWNLOAD
