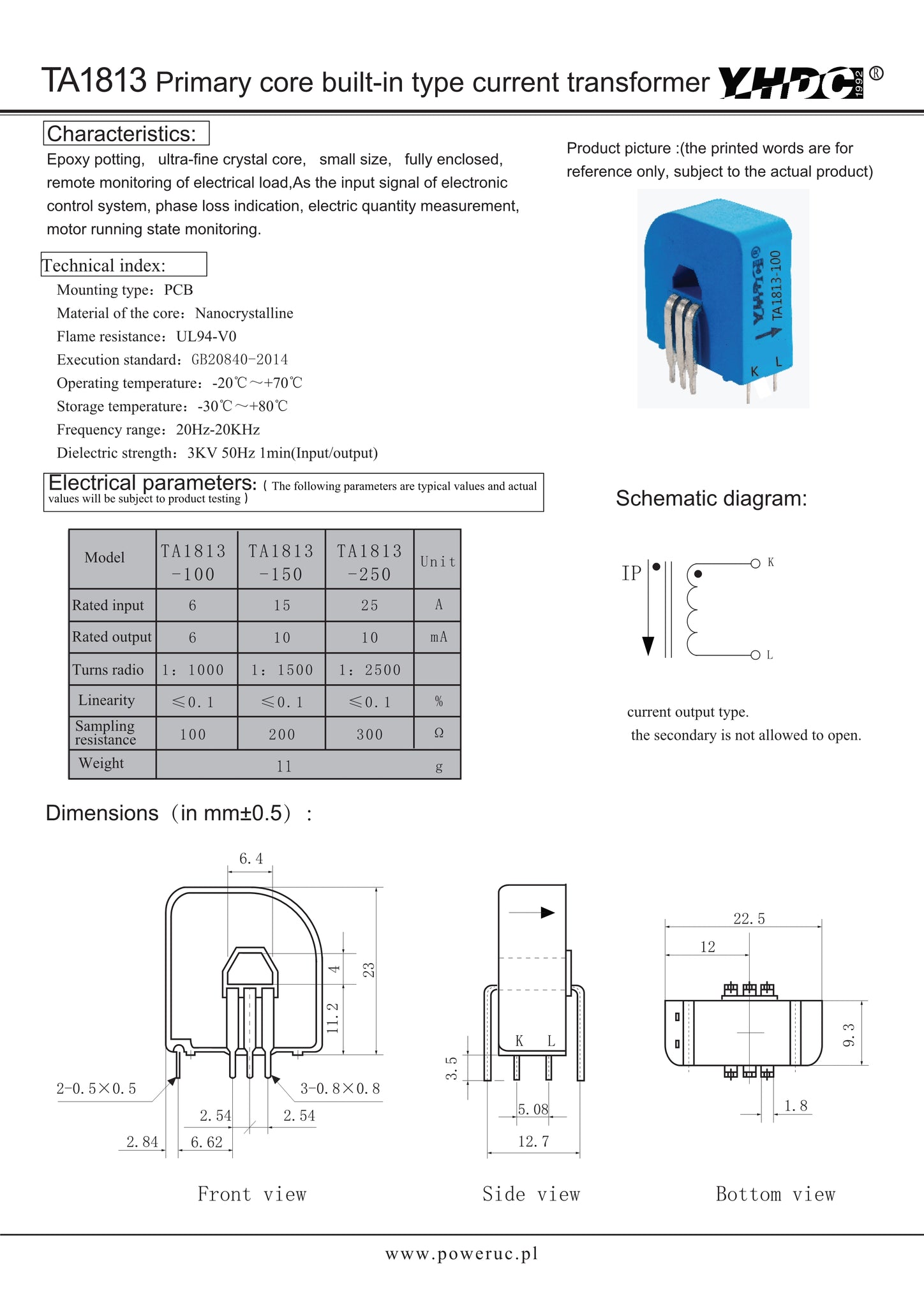

Primary core built-in type current transformer TA1813 Rated input 0-6A;0-15A;0-25A Rated output 0-6mA;0-10mA

PowerUC

  • €1,90
    Unit price per
Shipping calculated at checkout.

Only 1 left!

Characteristics:
Bus-bar built-in, PCB welding type, three ranges achieved by changing primary bus-bar connection.

Technical Index:
Mounting type: PCB
Material of the core: Permalloy
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -35°C ~ +85°C
Storage temperature: -45°C ~ +95°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: 2KV 50Hz 1min

Electrical Parameters:
