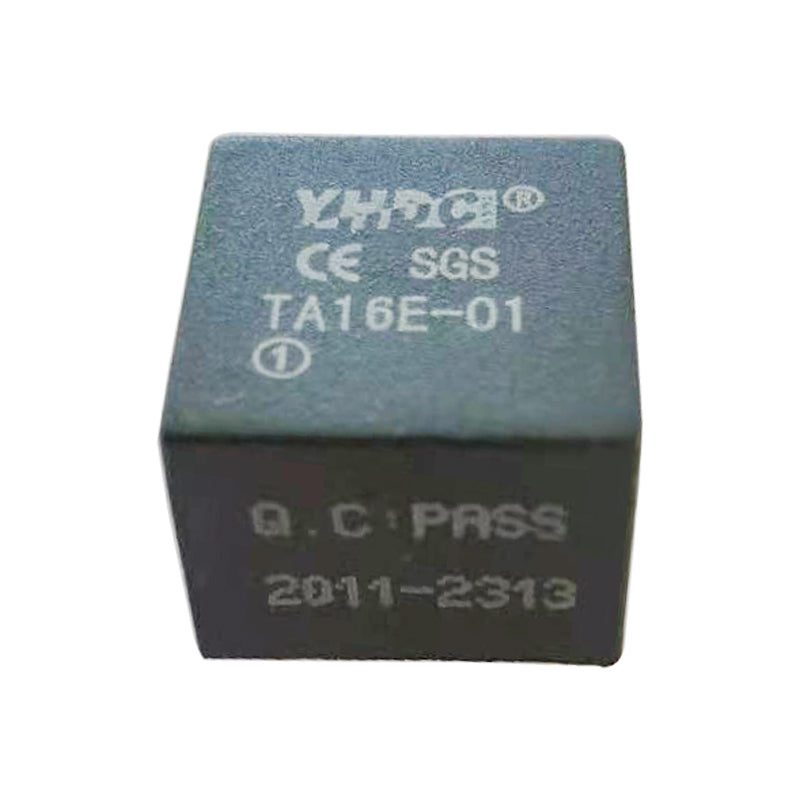

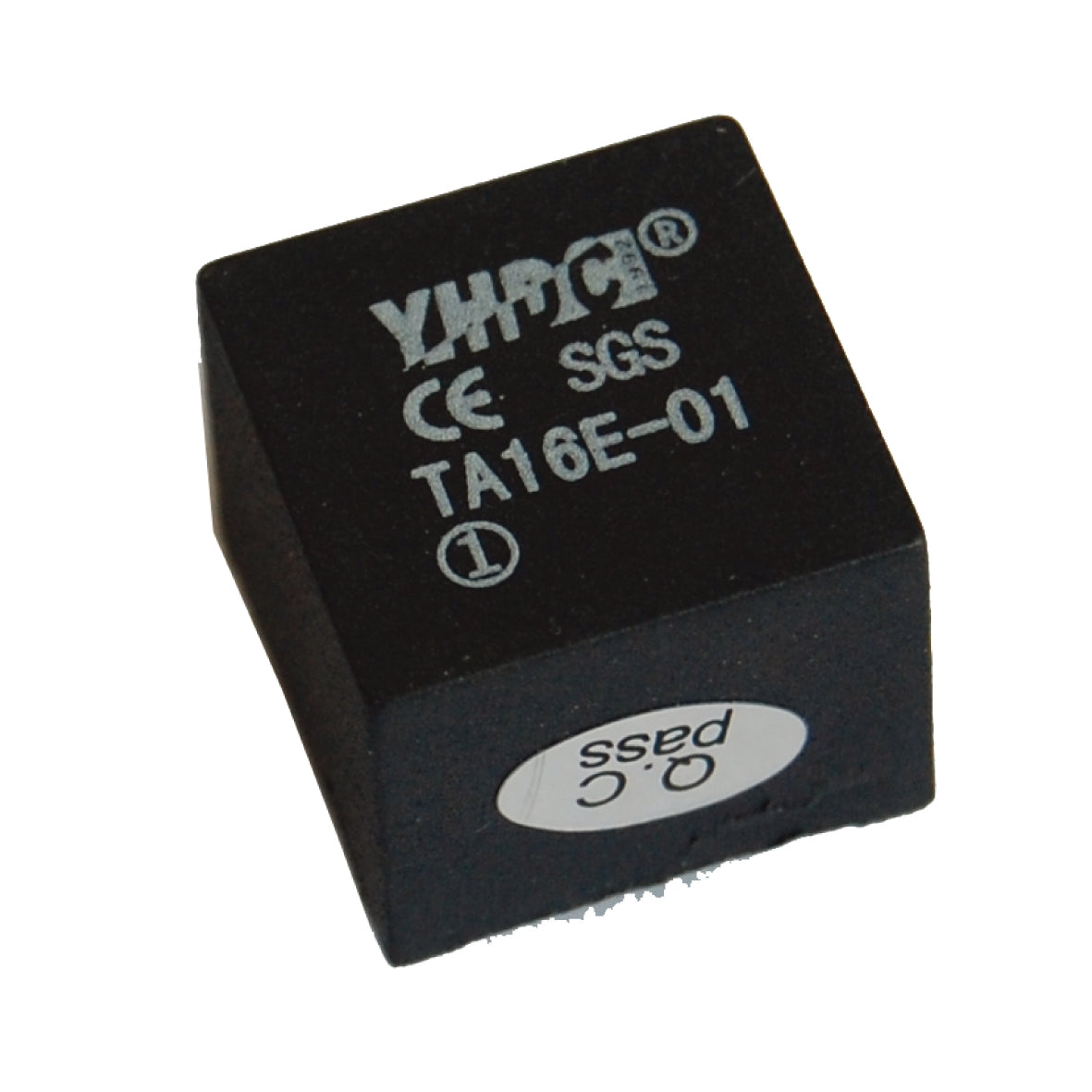

Primary core built-in type current transformer TA16E Rated input 0-5A;0-0.1A Rated output 0-5mA;0-2.5mA

PowerUC

  • €1,49
    Unit price per
Shipping calculated at checkout.

Only 5 left!

Characteristics:
Primary coil built-in, PCB welding, epoxy resin encapsulated, permalloy core.

Technical Index:
Mounting type: PCB
Material of the core: Permalloy
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -20°C ~ +75°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: 2KV 50Hz 1min

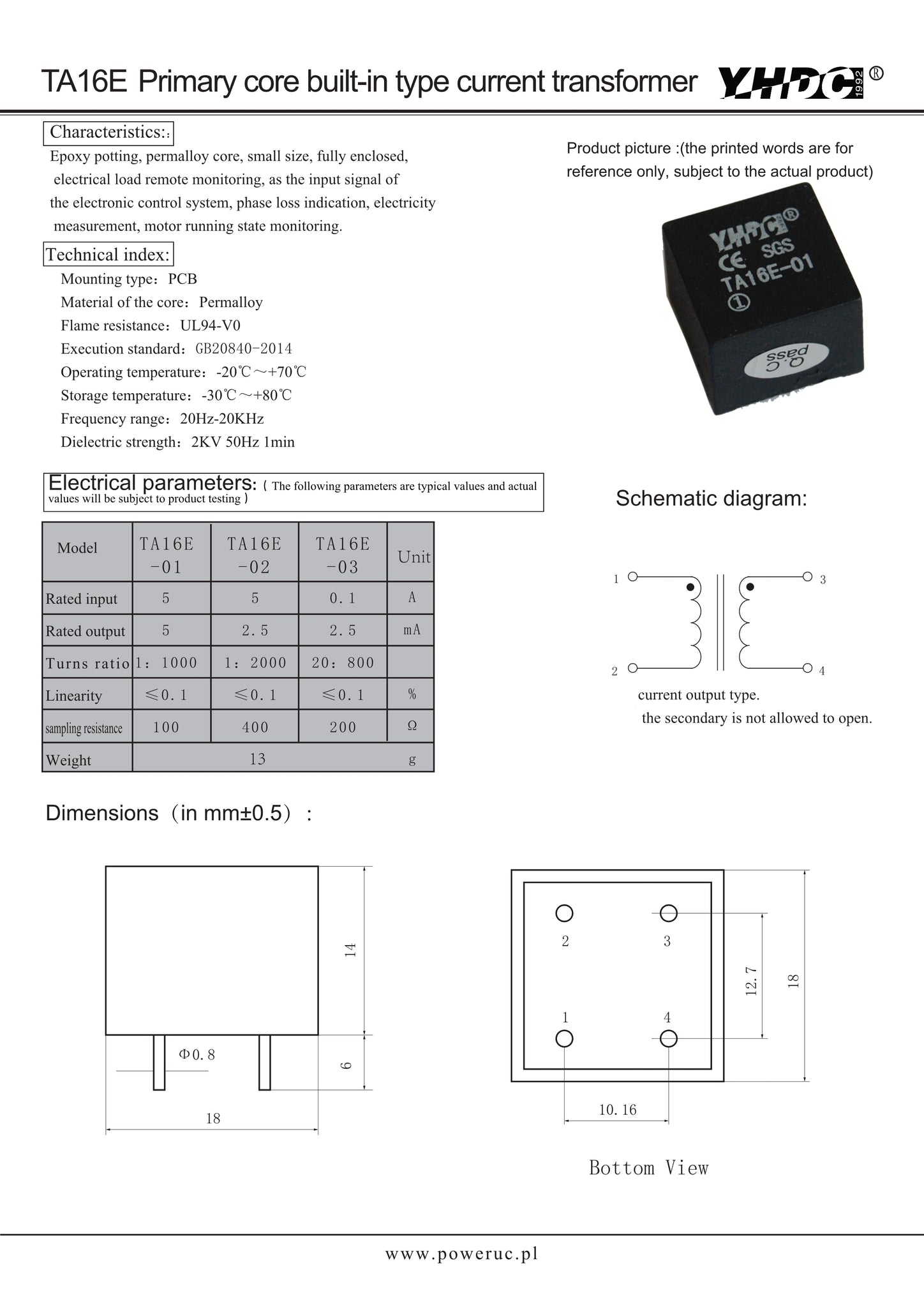

Electrical Parameters:

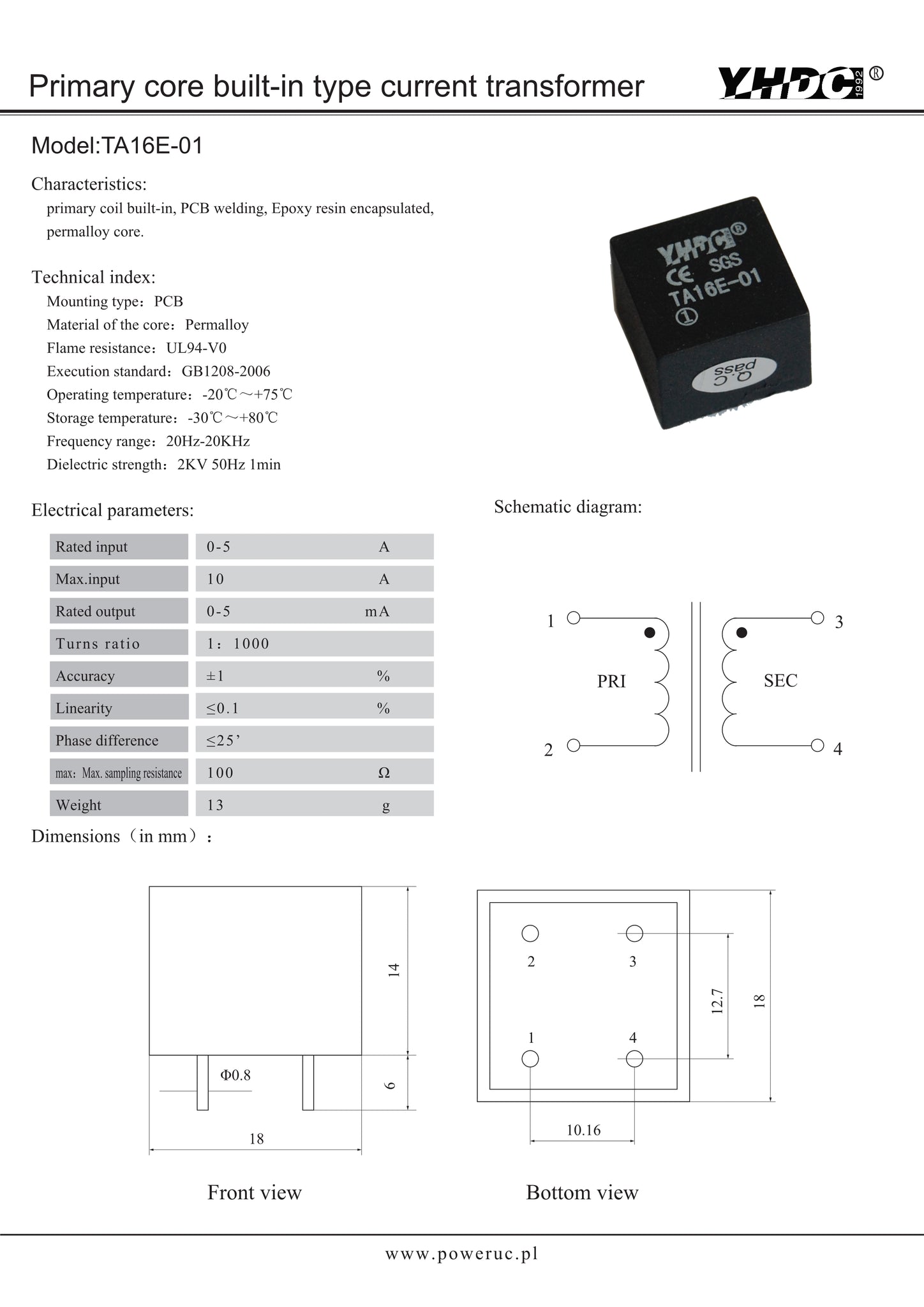

DOWNLOAD-TA16E-01

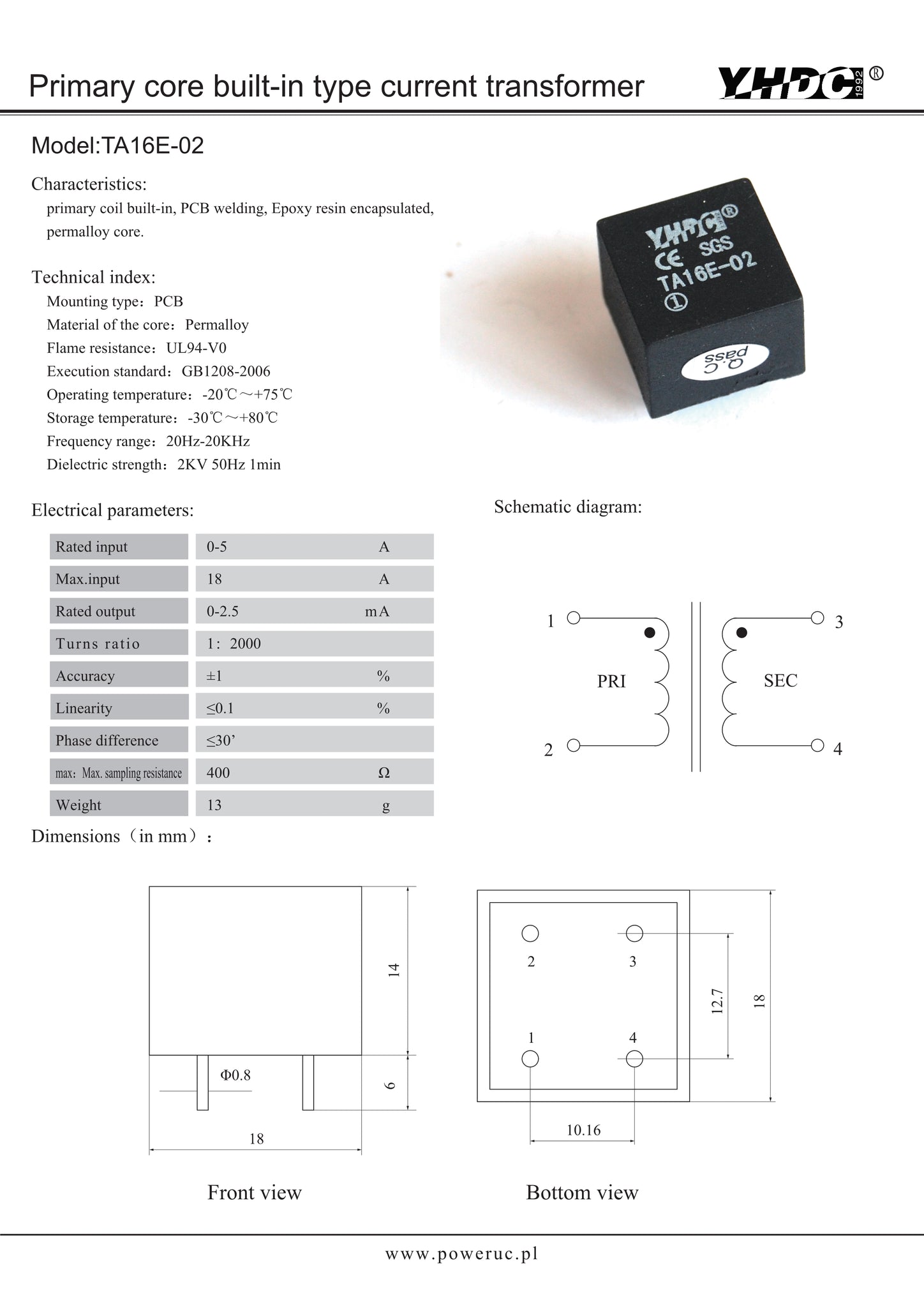

DOWNLOAD-TA16E-02

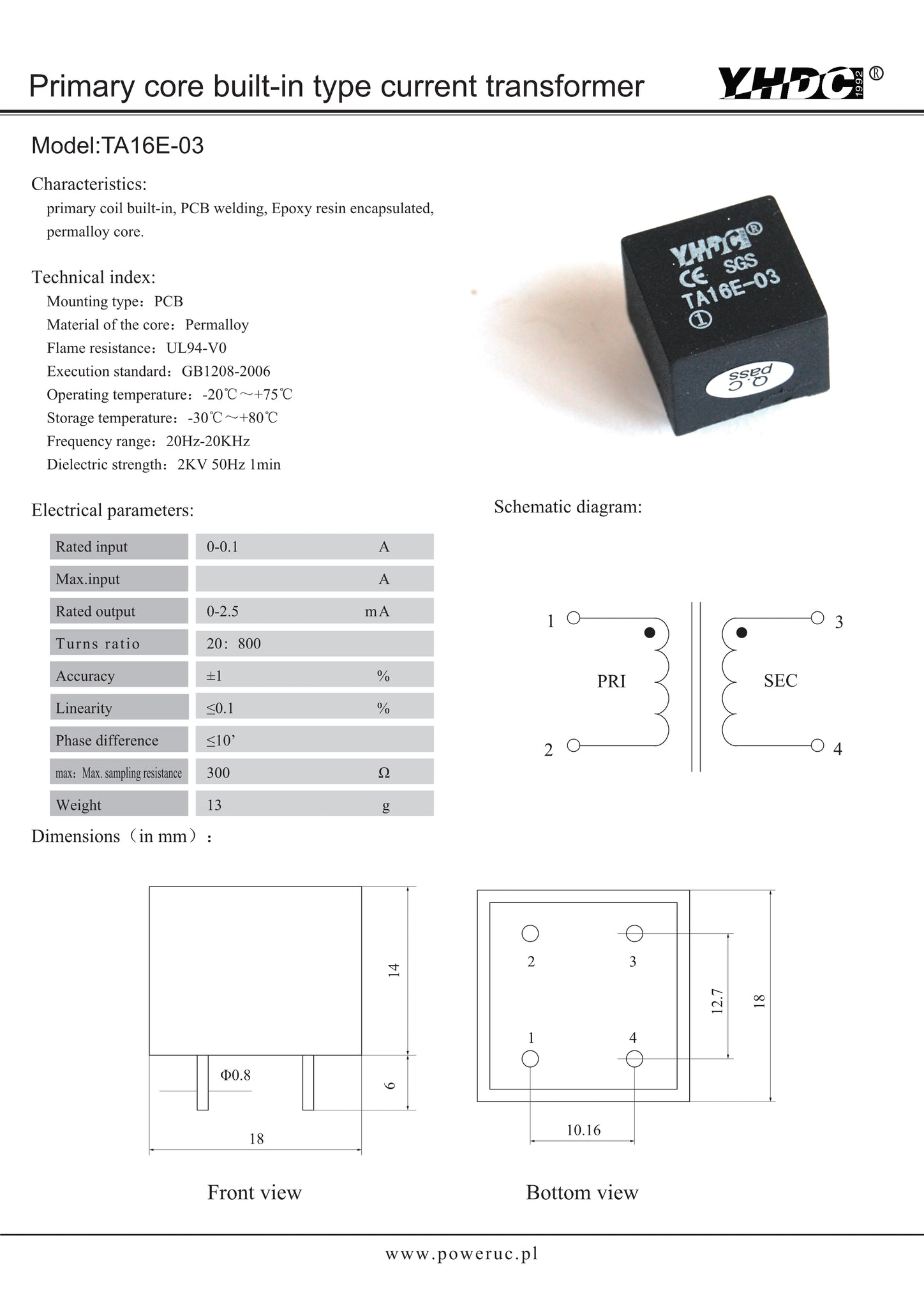

DOWNLOAD-TA16E-03
