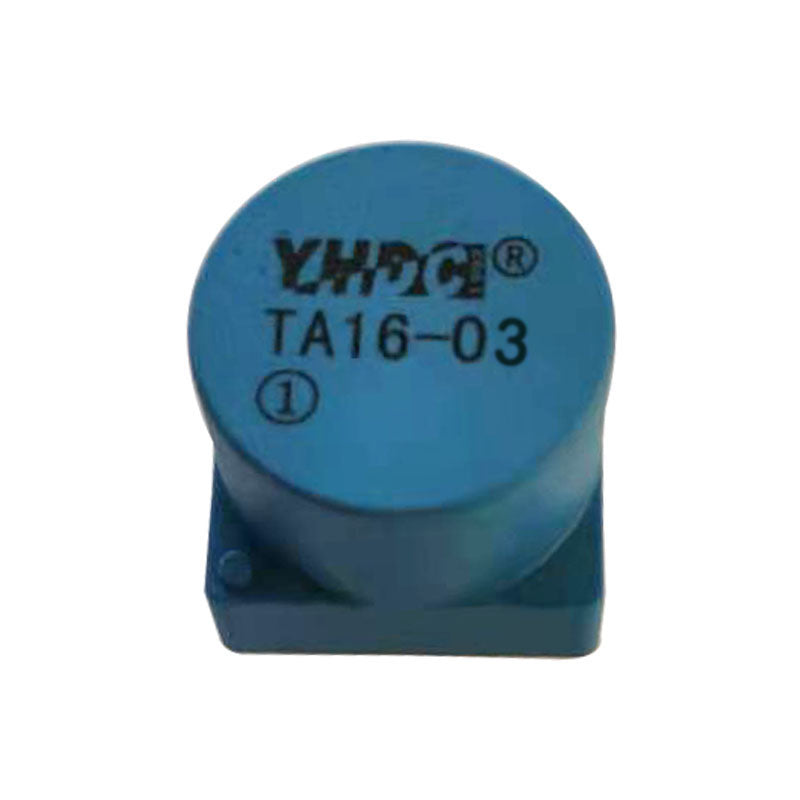

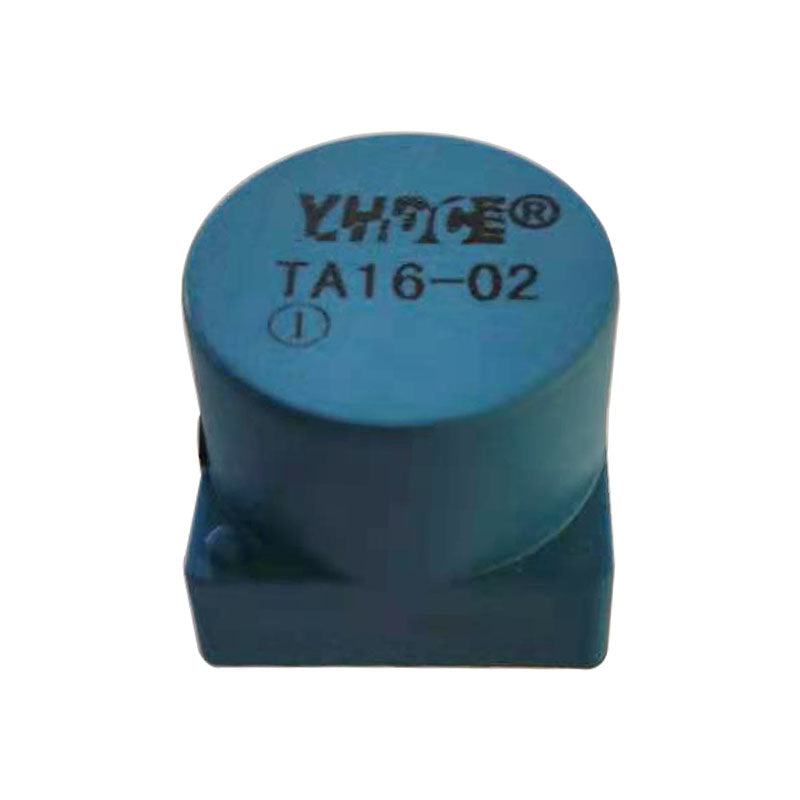

Primary core built-in type current transformer TA16 Rated input 0-5A；0-0.1A Rated output 0-5mA；0-2.5mA - PowerUC
Primary core built-in type current transformer TA16 Rated input 0-5A；0-0.1A Rated output 0-5mA；0-2.5mA
Primary core built-in type current transformer TA16 Rated input 0-5A；0-0.1A Rated output 0-5mA；0-2.5mA
Primary core built-in type current transformer TA16 Rated input 0-5A；0-0.1A Rated output 0-5mA；0-2.5mA

Primary core built-in type current transformer TA16 Rated input 0-5A；0-0.1A Rated output 0-5mA；0-2.5mA

PowerUC

Shipping calculated at checkout.
Only 10 left!

Characteristics:
Epoxy resin encapsulated, Nanocrystalline core, primary coil built-in, PCB welding.

Technical Index:
Mounting type: PCB
Material of the core: Nanocrystalline
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: 2KV 50Hz 1min

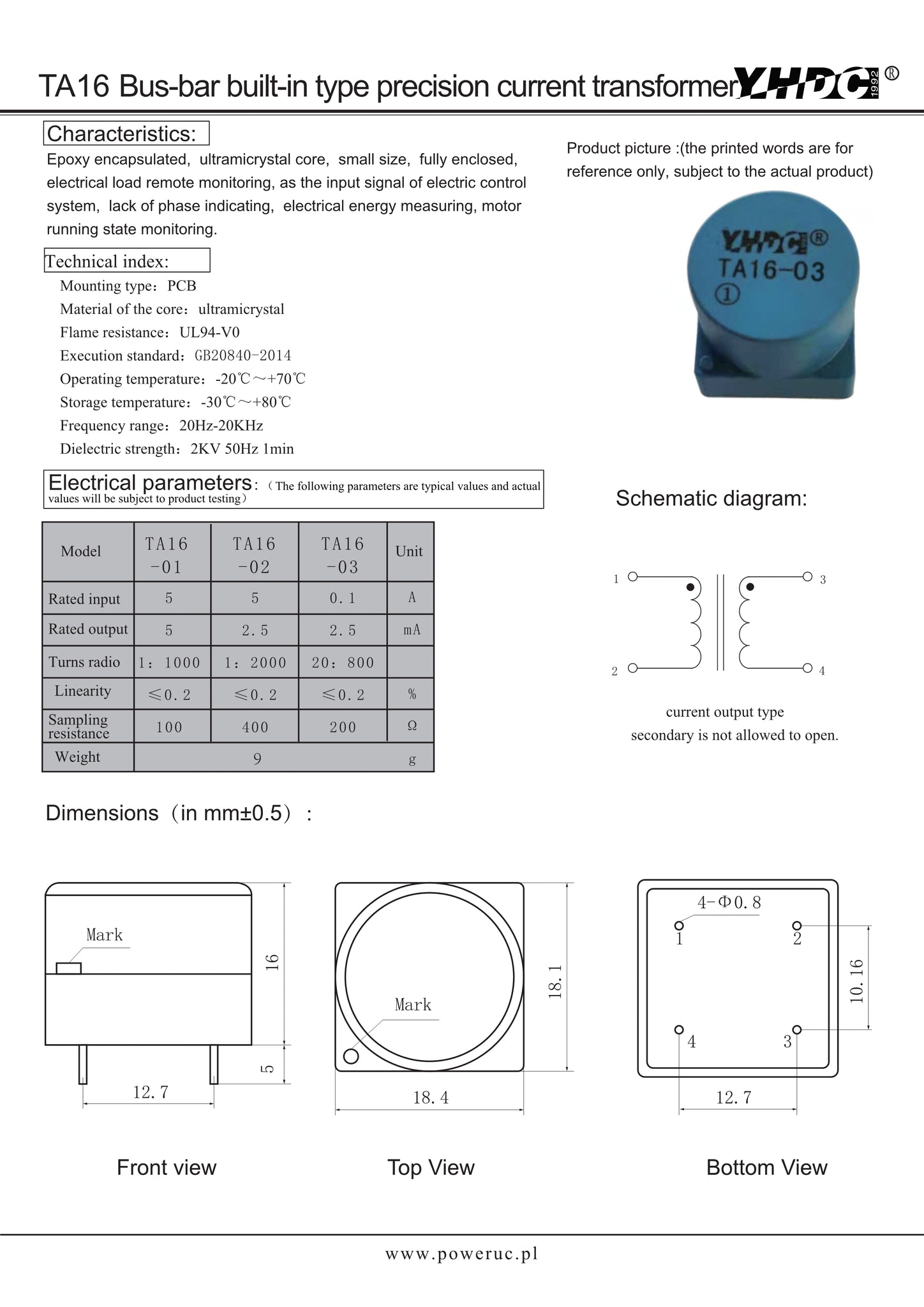

Electrical Parameters:

DOWNLOAD
