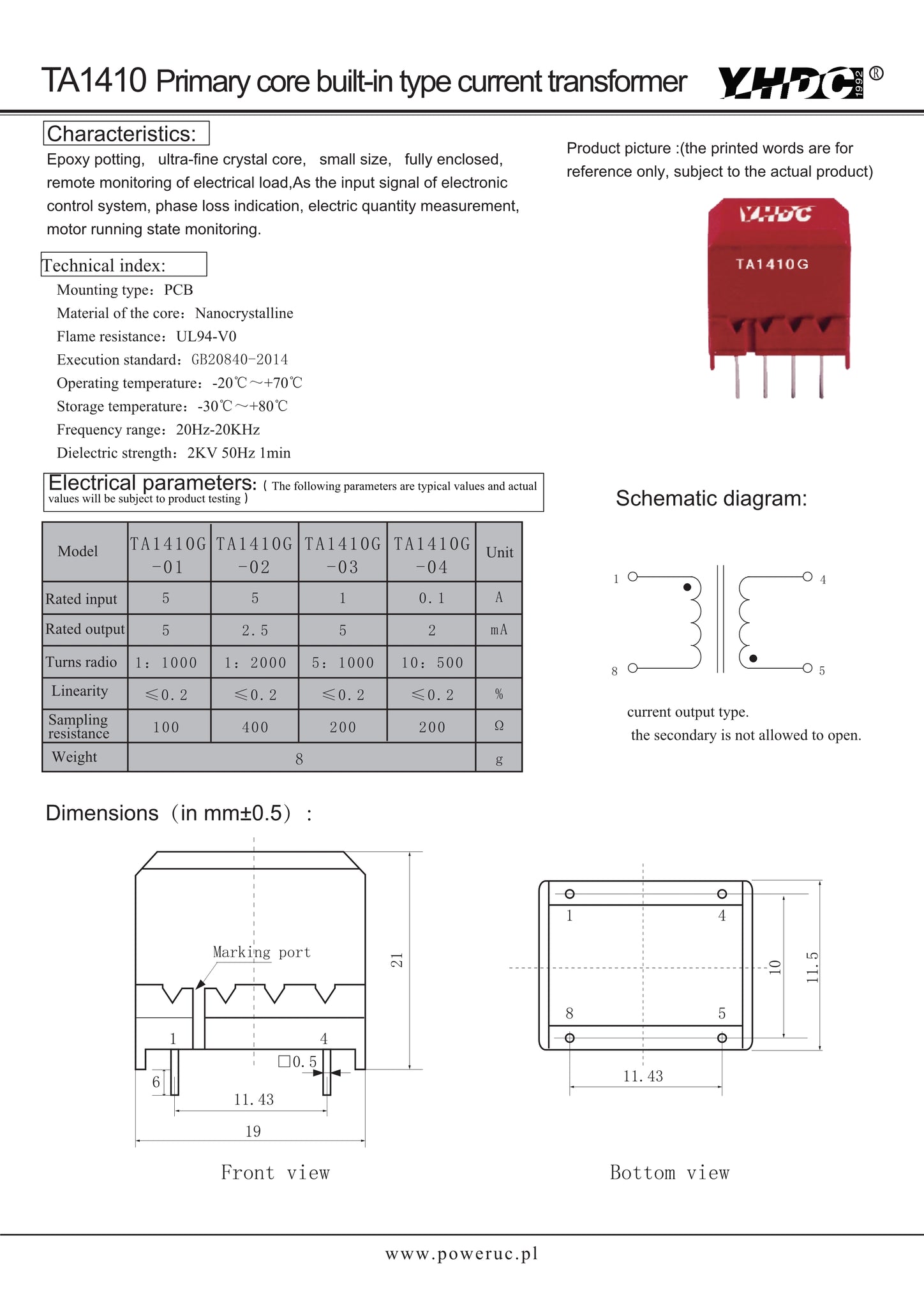

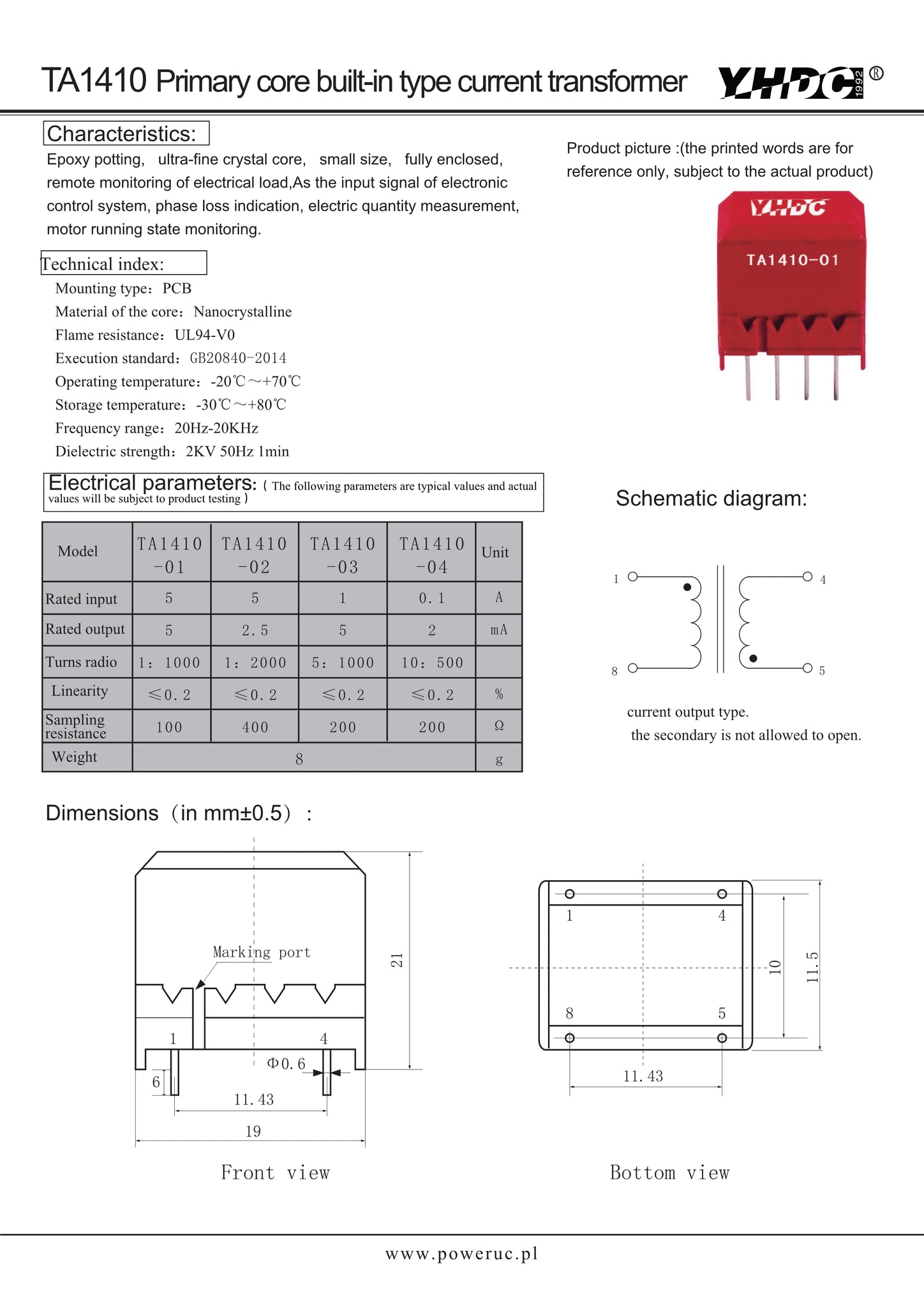

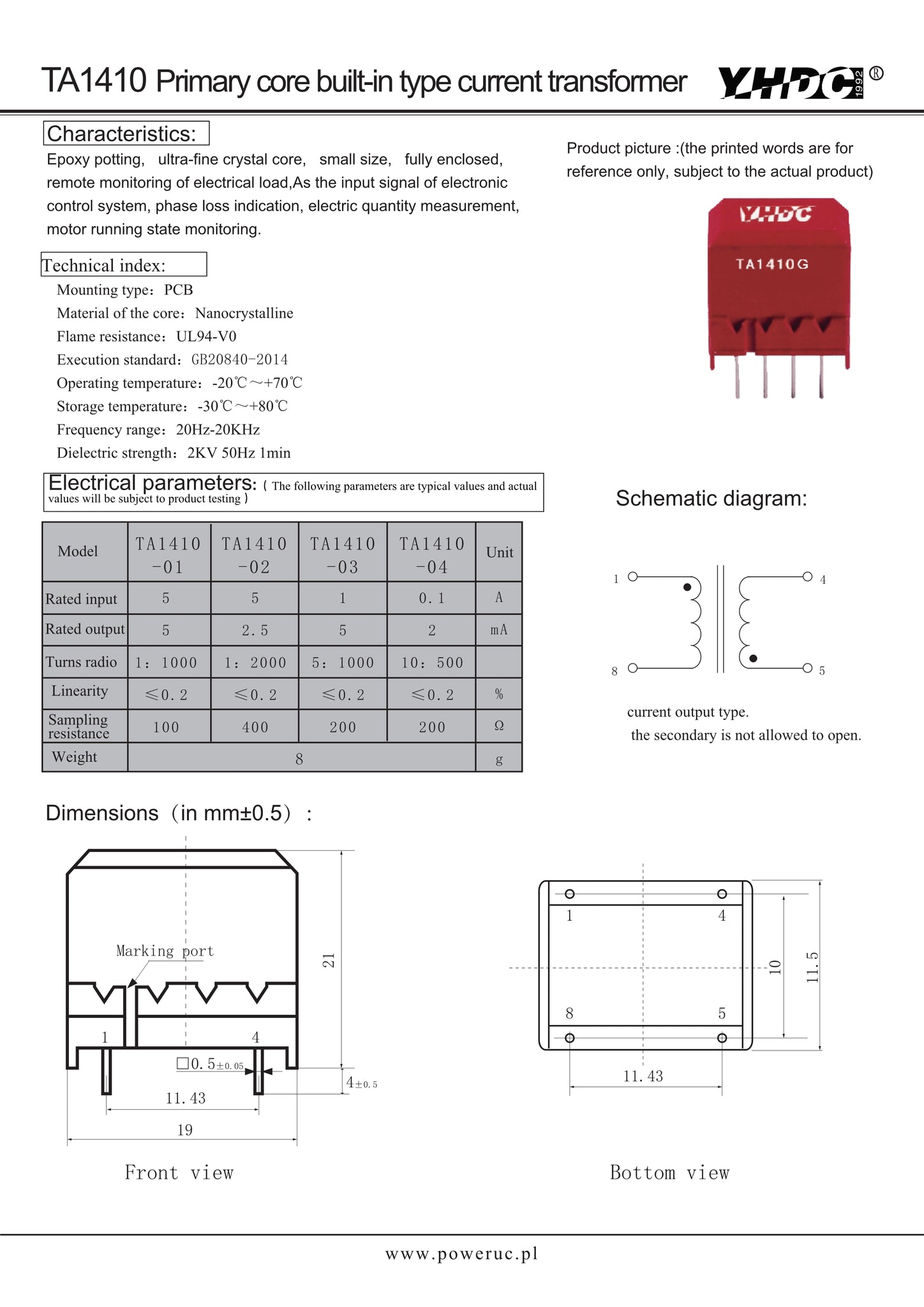

Primary core built-in type current transformer TA1410 Rated input 0-5A；0-1A；0-0.1A Rated output 0-5mA；0-2.5mA；0-2mA - PowerUC

Primary core built-in type current transformer TA1410 Rated input 0-5A；0-1A；0-0.1A Rated output 0-5mA；0-2.5mA；0-2mA

PowerUC

Shipping calculated at checkout.
Only 10 left!

Characteristics:

Epoxy potting, ultra-fine crystal core, small size, fully enclosed, remote monitoring of electrical load,As the input signal of electronic control system, phase loss indication, electric quantity measurement, motor running state monitoring.

Technical Index:
Mounting type: PCB
Material of the core: Nanocrystalline
Flame resistance: UL94-V0
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 20Hz ~ 20KHz
Dielectric strength: 2KV 50Hz 1min

Electrical Parameters:

DOWNLOAD
