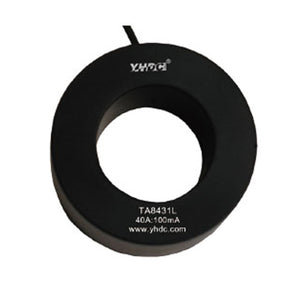

Power unit current transformer TA8431L Rated input 200A 400A Rated output 0-0.2A;0-0.133A;0-0.1A - PowerUC

Power unit current transformer TA8431L Rated input 200A 400A Rated output 0-0.2A;0-0.133A;0-0.1A

PowerUC

  • €3,78
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Characteristics:
Suspended mounting, high overload capacity.  Electronics, electric power equipment current monitoring.  Electric control system of current signal input.  Phase loss monitoring.  Monitoring the motor working condition.

    Technical Index:
    Suspended mounting, output with cable
    Material of the core: Silicon steel sheet
    Flame resistance: UL94-V0
    Execution standard: GB20840-2014
    Operating temperature: -20°C ~ +70°C
    Storage temperature: -30°C ~ +80°C
    Frequency range: 50Hz ~ 60Hz
    Dielectric strength: 6KV 50Hz 1min

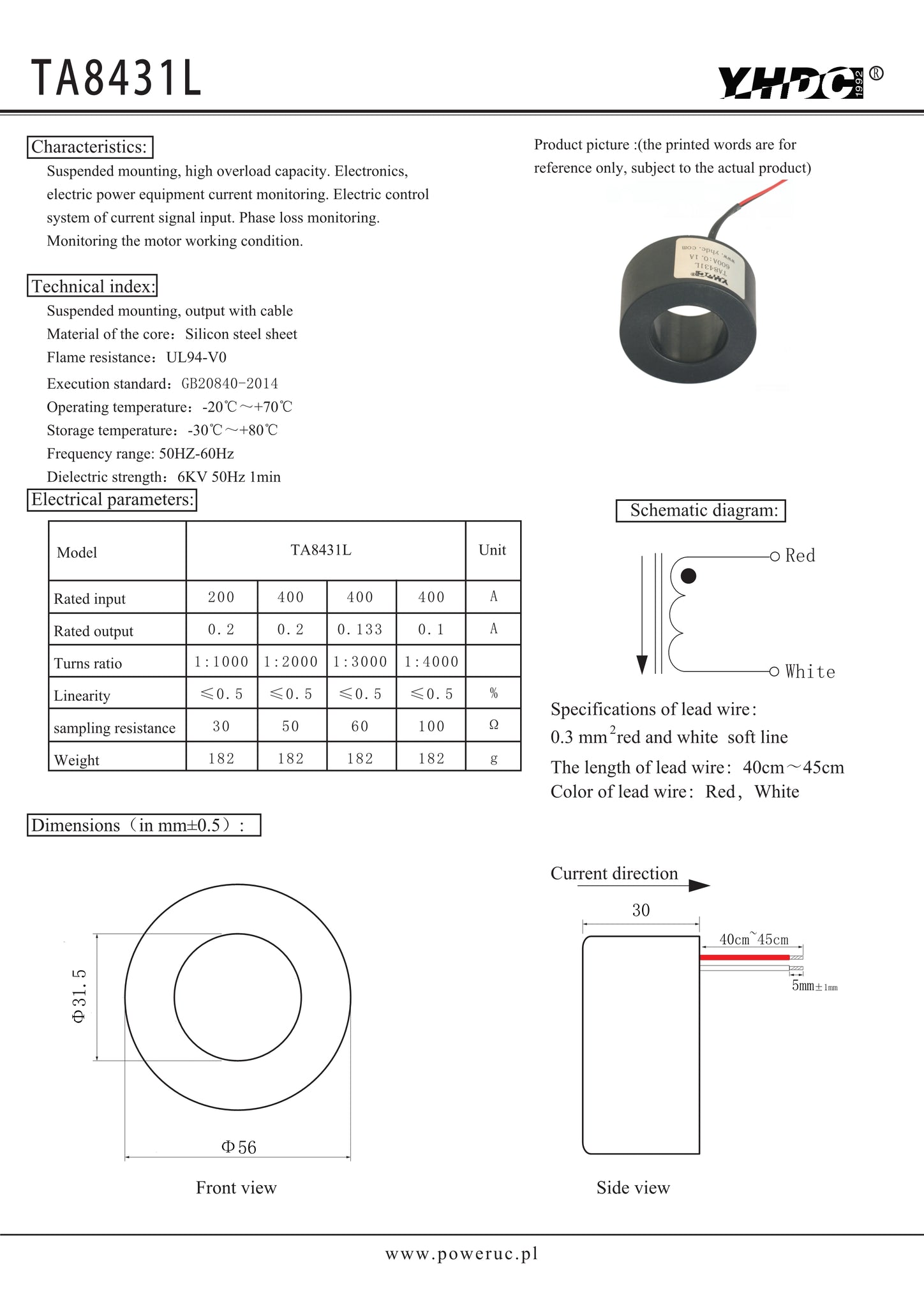

    Electrical Parameters:

    DOWNLOAD
