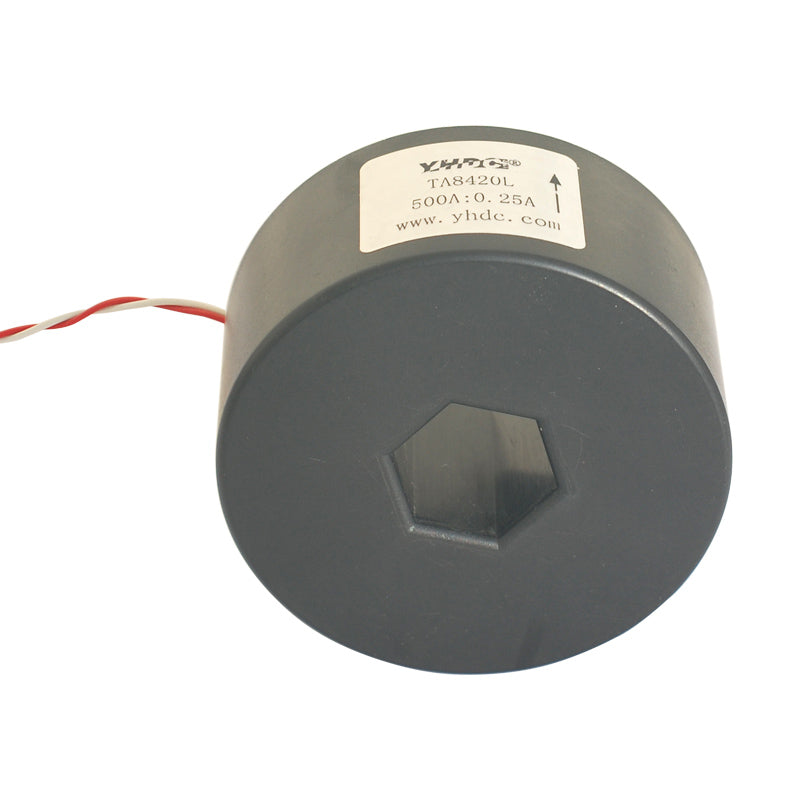

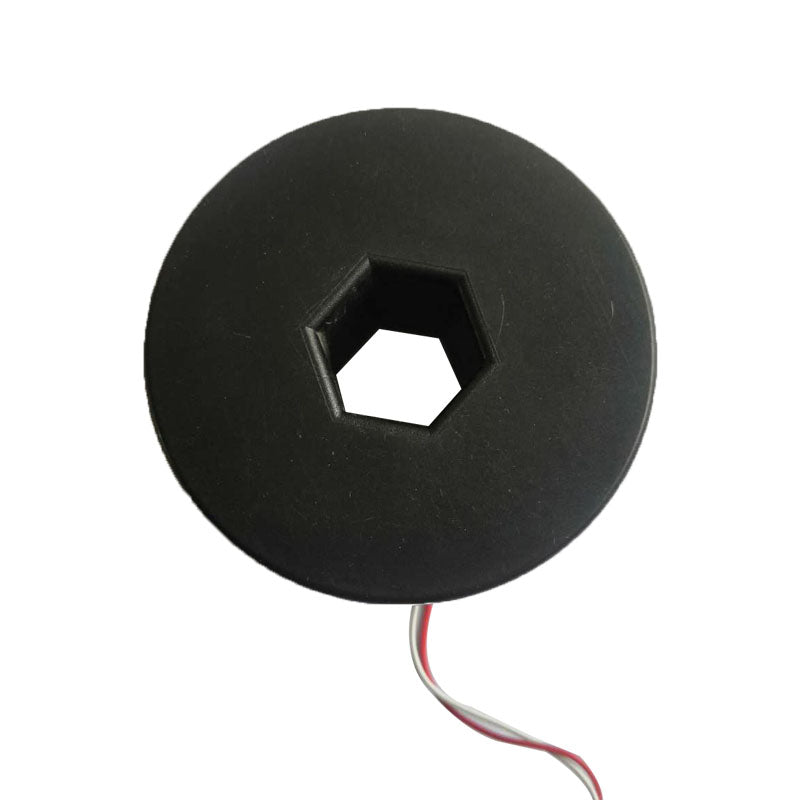

Power unit current transformer TA8420L Rated input 300A 500A 600A 800A Rated output 0-0.3A;0-0.25A;0-0.2A
Characteristics:
Suspended mounting, high overload capacity. Electronics, electric power equipment current monitoring. Electric control system of current signal input. Phase loss monitoring. Monitoring the motor working condition.
Technical Index:
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -20°C ~ +75°C
Storage temperature: -30°C ~ +80°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: 6KV 50Hz 1min

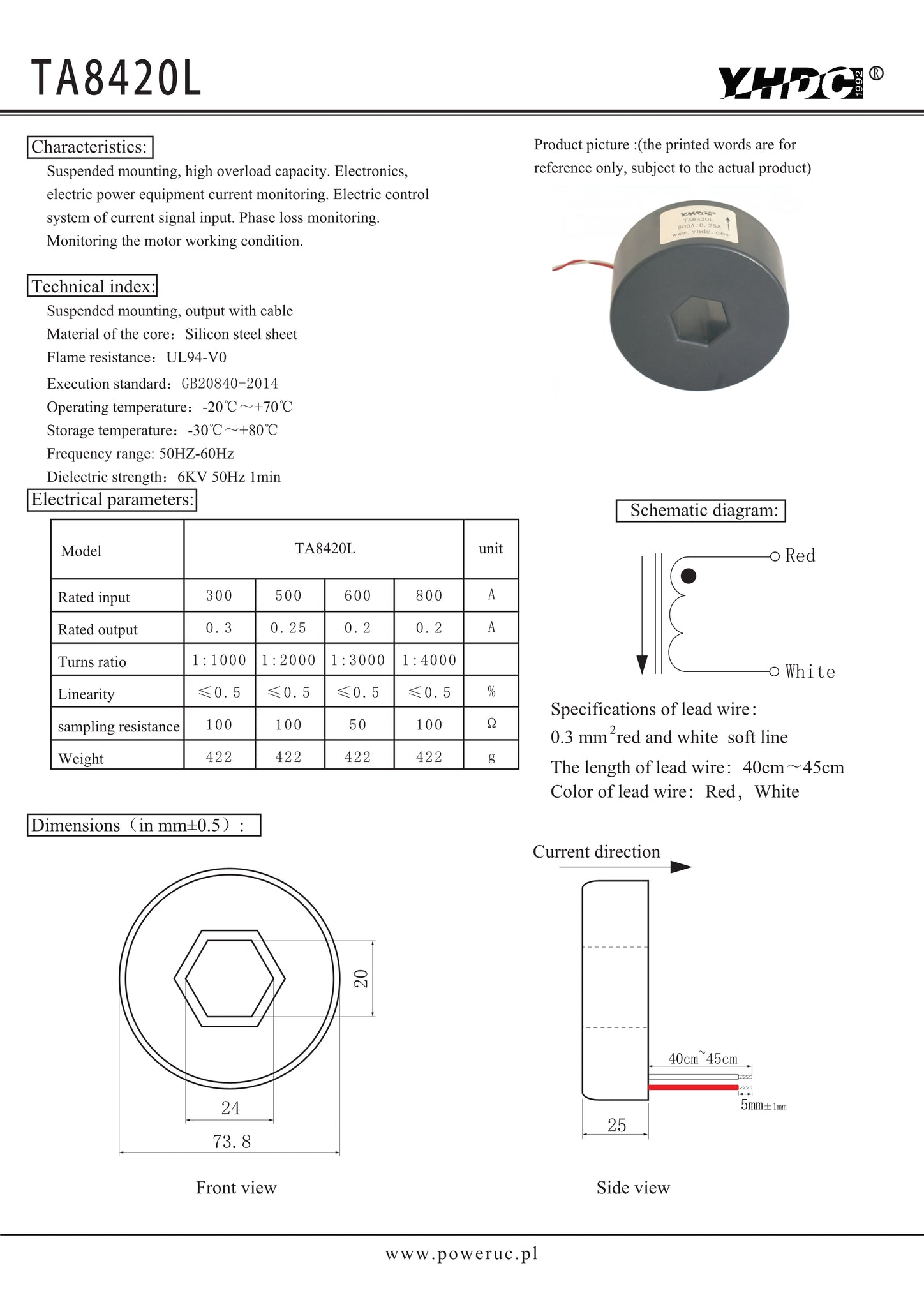

Electrical Parameters:

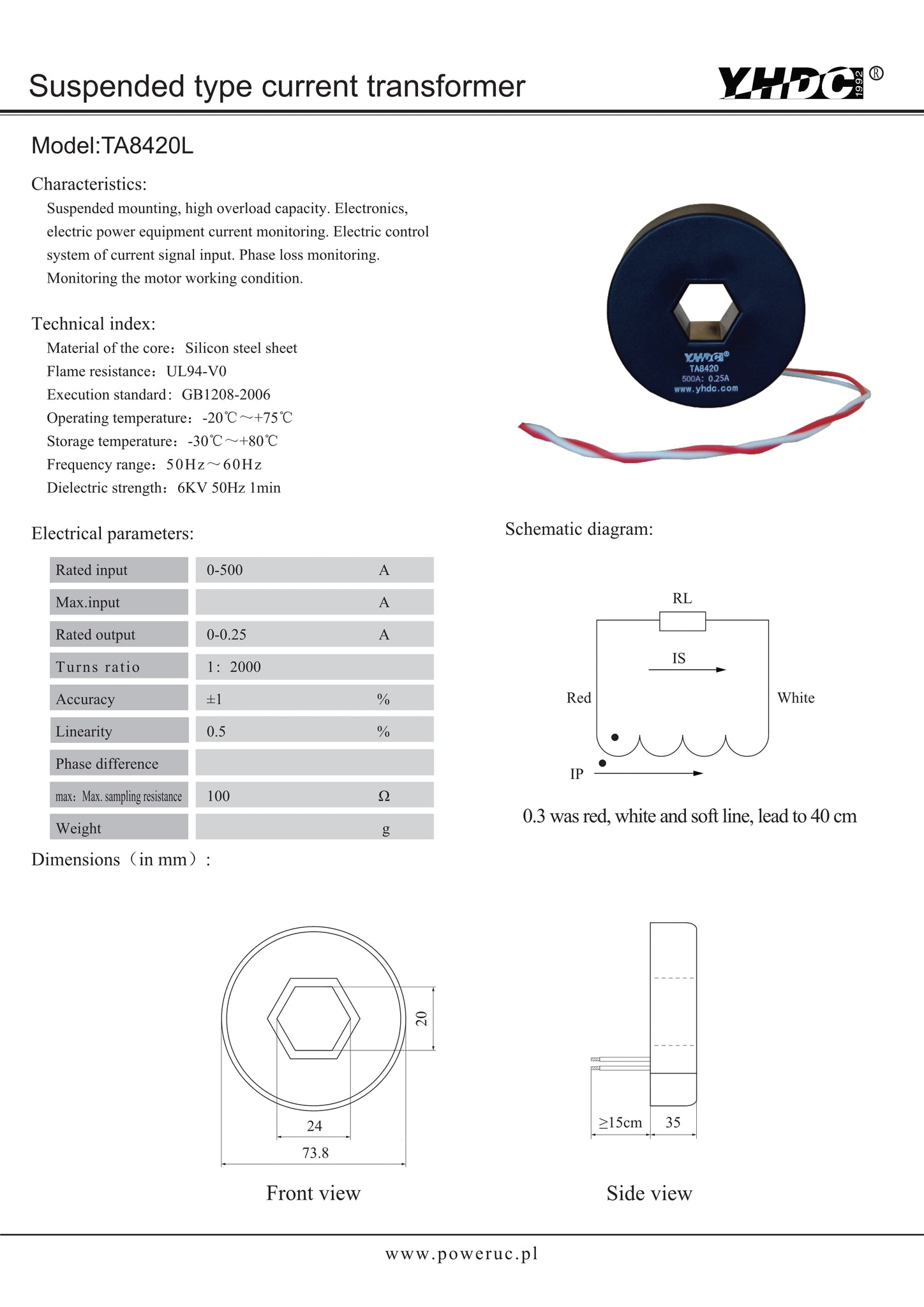

DOWNLOAD-300A-0.3A
DOWNLOAD-500A-0.25A

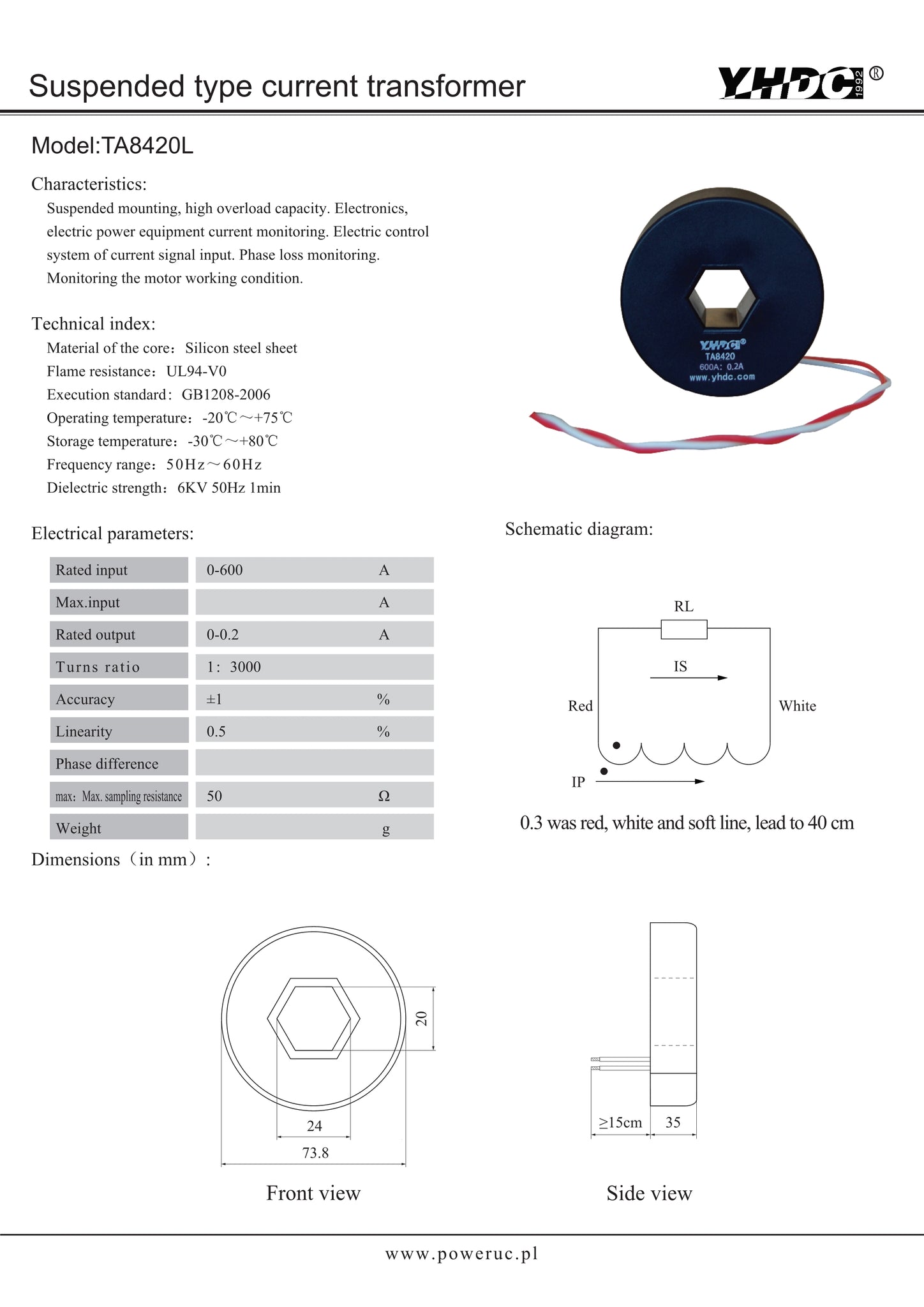

DOWNLOAD-600A-0.2A

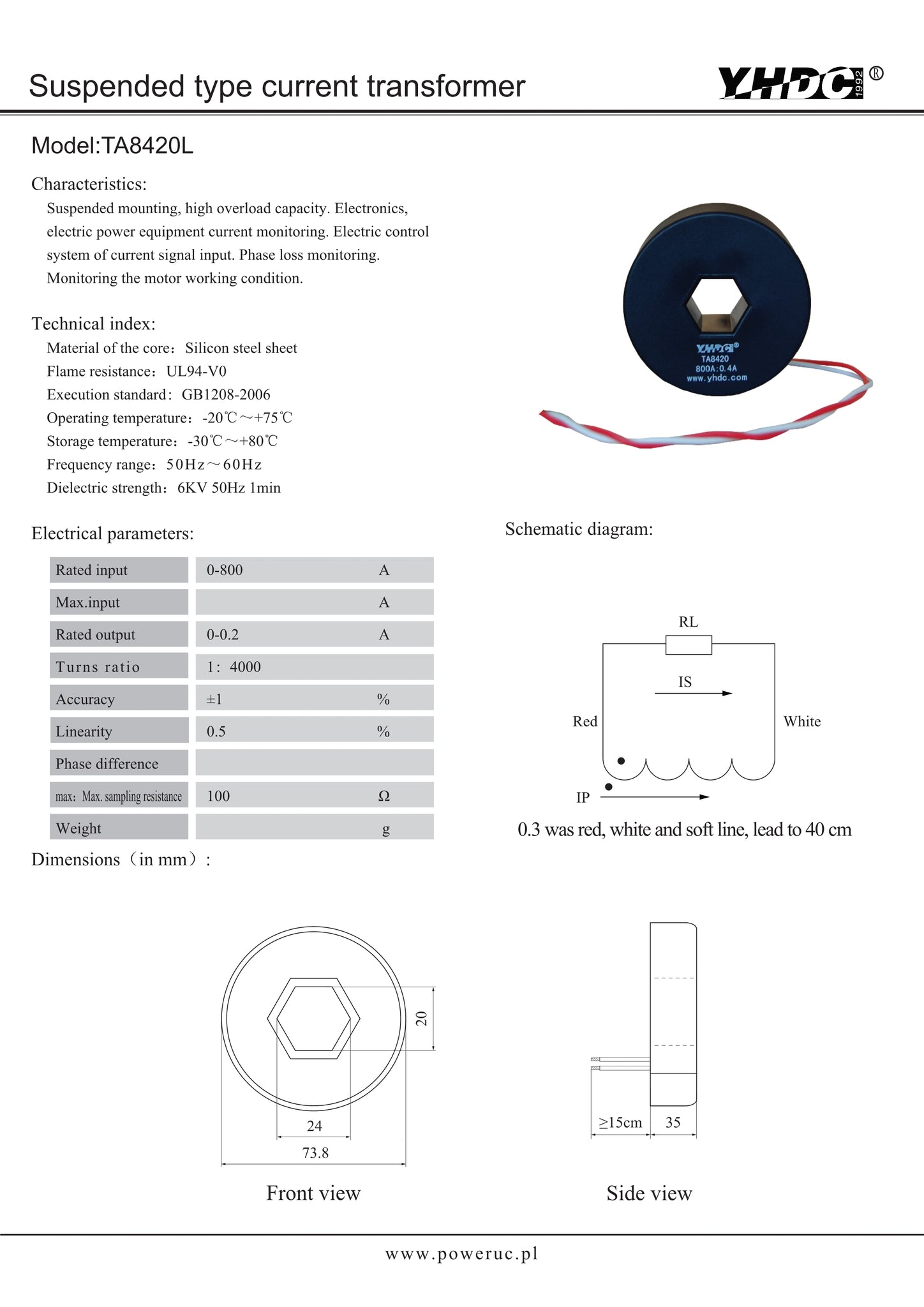

DOWNLOAD-800A-0.2A
