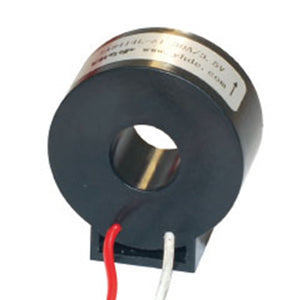

Power unit current transformer TA8414L Rated input 30A 45A 60A Rated output 3.53V - PowerUC

Power unit current transformer TA8414L Rated input 36A 45A 60A 100A Rated output 3.53V 100mA 50mA 33.3mA


  • €2,57
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

High accuracy, good consistency, simple circuit, without external power supply, perform reliably.  Current and voltage transformation in place at a time.  Directly change the measured current isolation to voltage output.

    Technical Index:
    Suspended mounting, output with cable
    Material of the core: Silicon steel sheet
    Flame resistance: UL94-V0
    Operating temperature: -20°C ~ +75°C
    Storage temperature: -30°C ~ +80°C
    Frequency range: 50Hz ~ 2000Hz
    Dielectric strength: 5KV 50Hz 1min

    Electrical Parameters:
