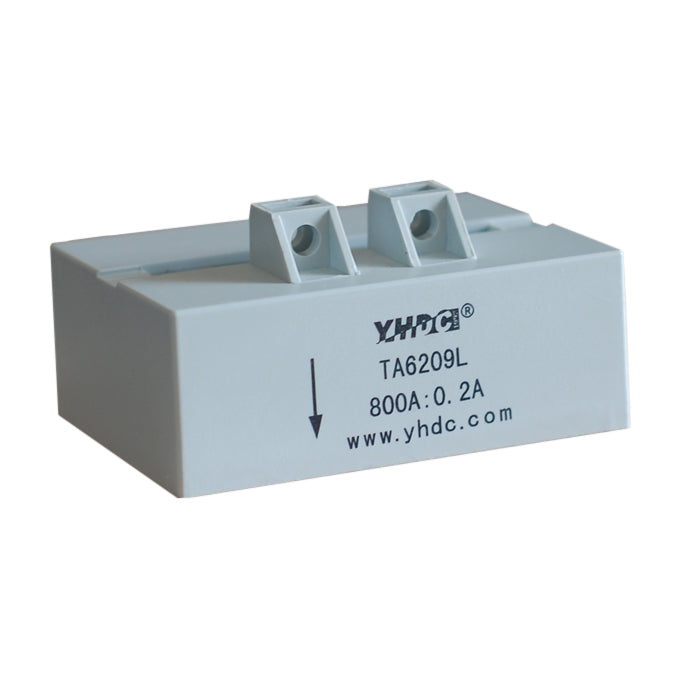

Power unit current transformer TA6209L rated input 600A 800A Rated output 0-0.1A；0-0.2A - PowerUC
Power unit current transformer TA6209L rated input 800A Rated output 0-0.1A；0-0.2A - PowerUC

Power unit current transformer TA6209L rated input 600A 800A Rated output 0-0.1A；0-0.2A

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after
Characteristics:
  1. Directly fixed on the copper platoon of 9x62.
  2. Fully enclosed, mechanical and environmental with excellent performance, strong capability of voltage isolation, safe and reliable.

Technical Index:
Suspended mounting, output with cable
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Working voltage: 660V
Execution standard: GB20840-2014
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 50Hz ~ 60Hz
Dielectric strength: 6KV 50Hz 1min

Electrical Parameters:
