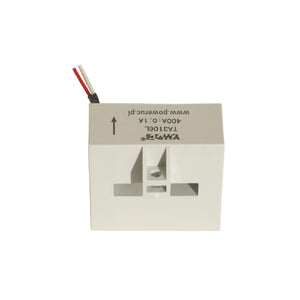

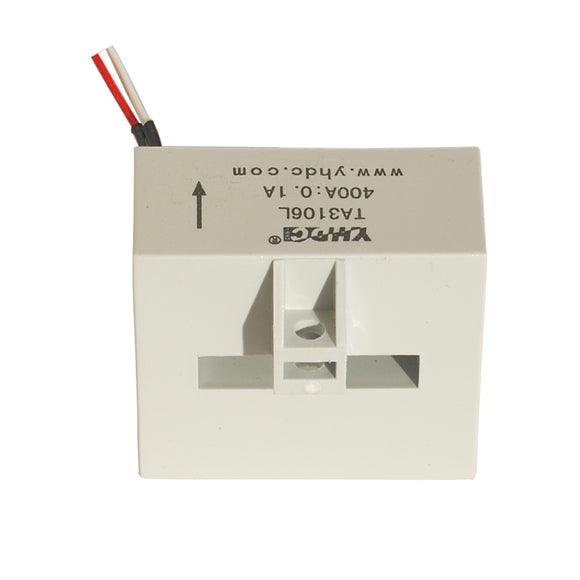

Power unit current transformer TA3106L rated input 200A 400A Rated output 0-0.2A;0-0.133A;0-0.1A - PowerUC

Power unit current transformer TA3106L rated input 200A 400A Rated output 0-0.2A;0-0.133A;0-0.1A

PowerUC

  • €4,34
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

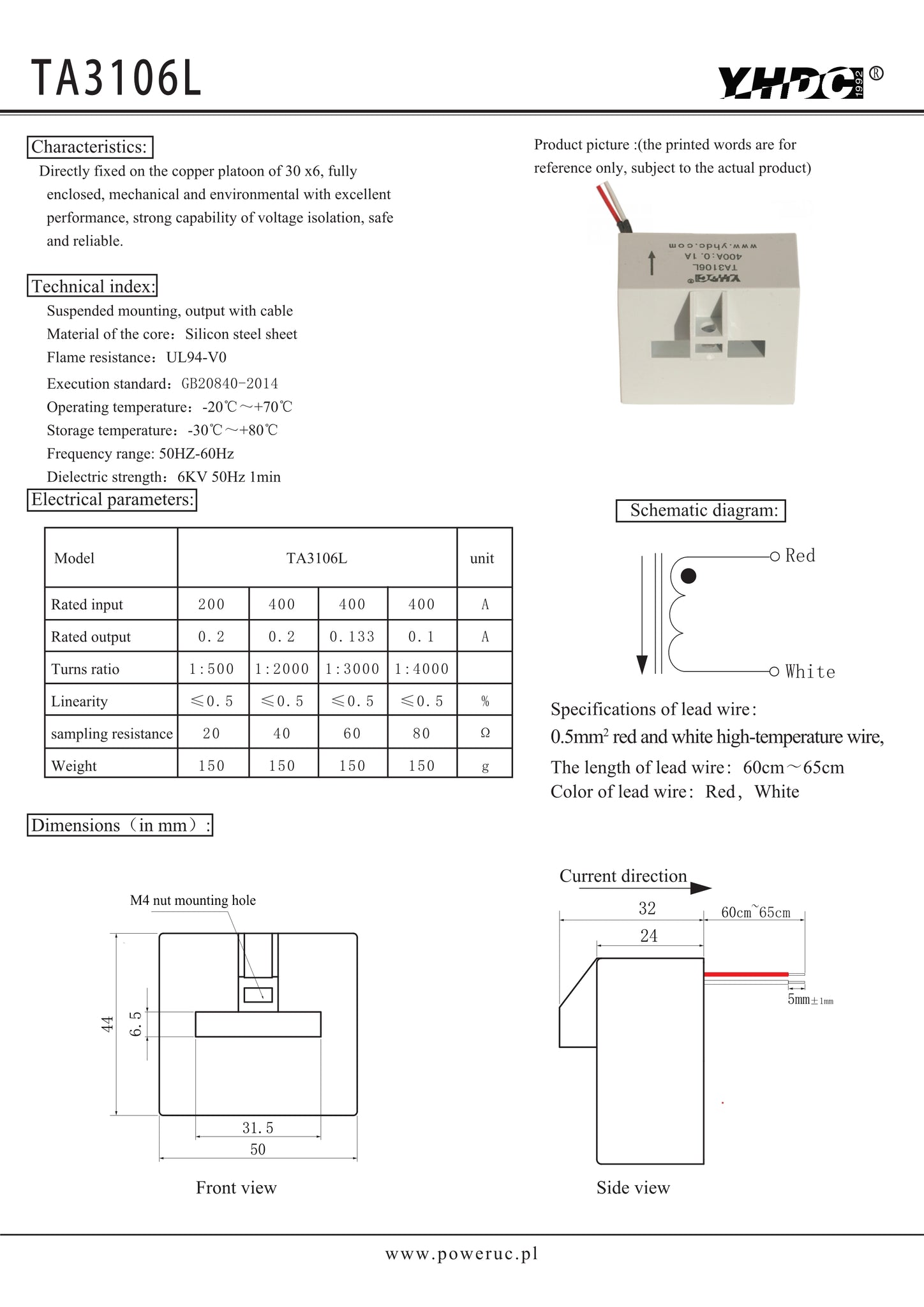

Characteristics:
  1. Directly fixed on the copper platoon of 30x6.
  2. Fully enclosed, mechanical and environmental with excellent performance , strong capability of voltage isolation , safe and reliable.
Technical Index:

Suspended mounting, output with cable
Material of the core: Silicon steel sheet
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -35°C ~ +85°C
Storage temperature: -45°C ~ +95°C
Dielectric strength: 6KV 50Hz 1min

Electrical Parameters:
