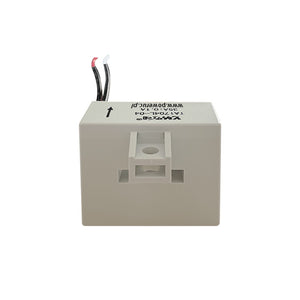

Power unit current transformer TA1704L rated input 15A 20A 25A 35A 40A 50A 65A 75A Rated output 0.1A
Characteristics:
Directly fixed on the copper platoon of 17 x4, fully enclosed, mechanical and environmental with excellent performance, strong capability of voltage isolation, safe and reliable.
Technical Index:
Mounting type：Free hanging (In-Line)
Material of the core： Laminated silicon steel
Flame resistance：UL94-V0
Applicable standards: GB20840-2014
Operating temperature：-20℃～+70℃
Storage temperature：-30℃～+80℃
Work frequency： 50HZ-60Hz
Dielectric strength：6KV 50Hz 1min
Electrical Parameters:
