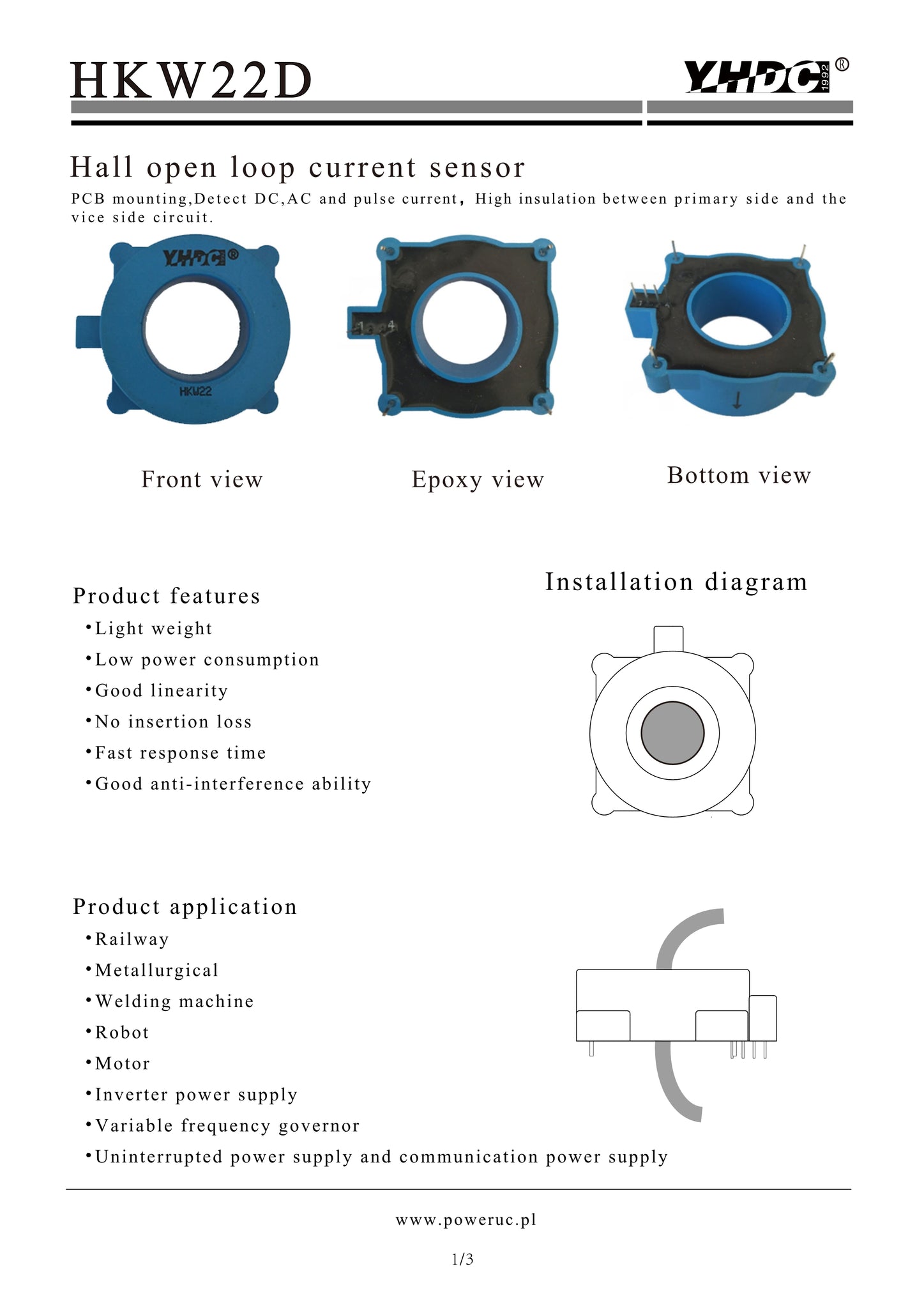

Open loop current sensor HKW22D Rated input ±200A ±400A ±600A ±800A Rated output 2.5V±1.25V
Open loop current sensor HKW22D Rated input ±200A ±400A ±600A ±800A Rated output 2.5V±1.25V

Open loop current sensor HKW22D Rated input ±200A ±400A ±600A ±800A Rated output 2.5V±1.25V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after


PCB mounting,Detect DC,AC and puls e current，High insulation between primary side and the vice side circuit.

Technical Indicators:
Flame resistance: UL94-V0
Working temperature: -40°C ~ +80°C
Storage temperature: -40°C ~ +80°C
Bandwidth: DC ~ 10KHz
Dielectric strength: 2.5KV 50Hz 1min

Electrical parameters:

DOWNLOAD
