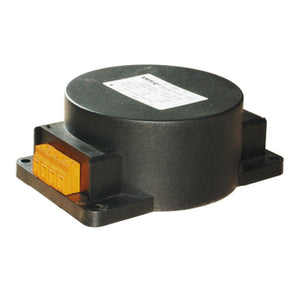

Mini voltage type current transformer TVD120 rated voltage 200V - PowerUC

Mini voltage type current transformer TVD120 rated voltage 200V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

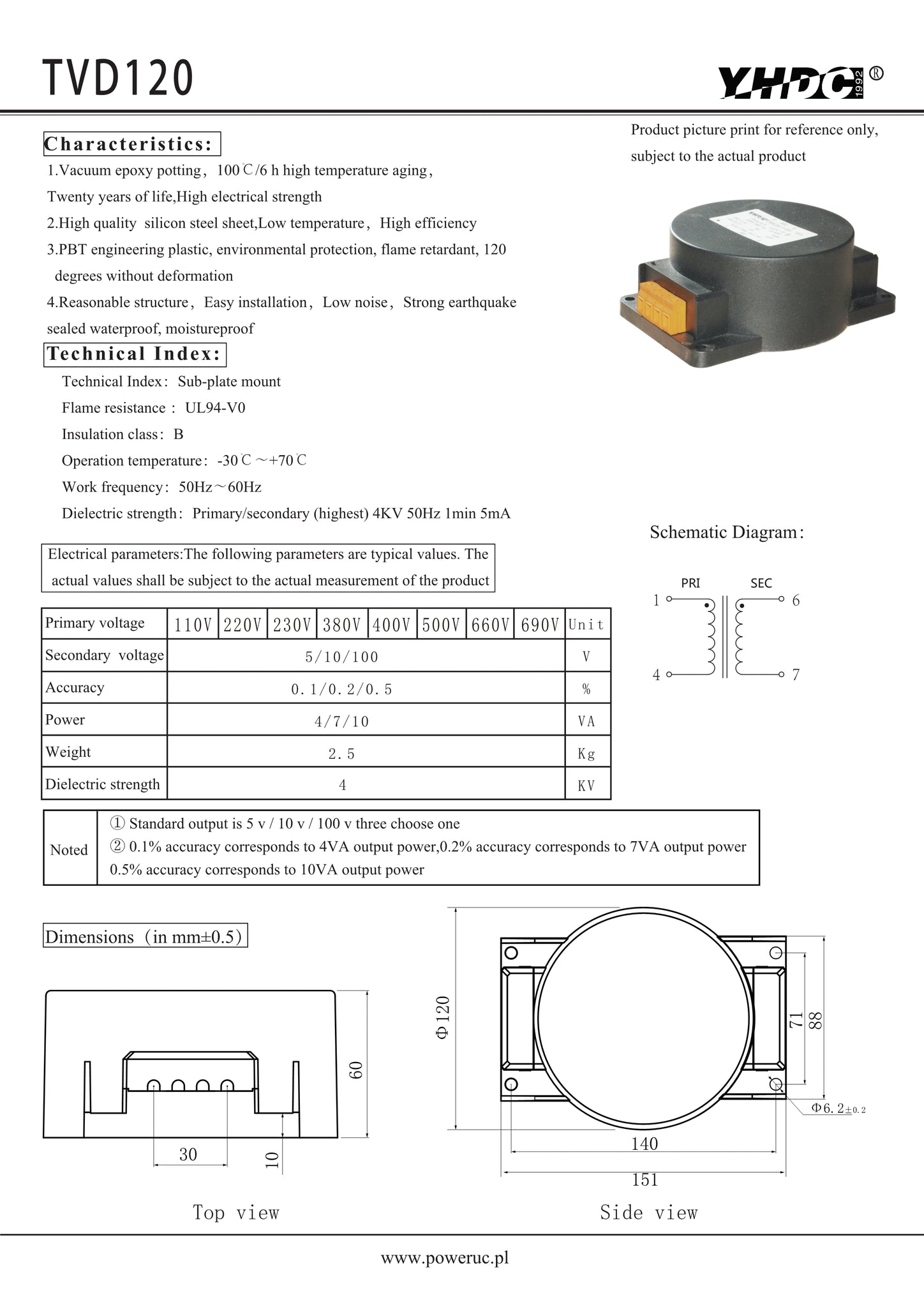

Characteristics:

1.Vacuum epoxy potting,100℃/6 h high temperature aging, Twenty years of life,High electrical strength

2.High quality silicon steel sheet,Low temperature,High efficiency

3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees without deformation

4.Reasonable structure,Easy installation,Low noise,Strong earthquake sealed waterproof, moistureproof

Technical Index:

Technical Index:Sub-plate mount

Flame resistance :UL94-V0

Insulation class:B

Operation temperature:-30℃~+70℃

Work frequency:50Hz~60Hz

Dielectric strength:Primary/secondary (highest) 4KV 50Hz 1min 5mA

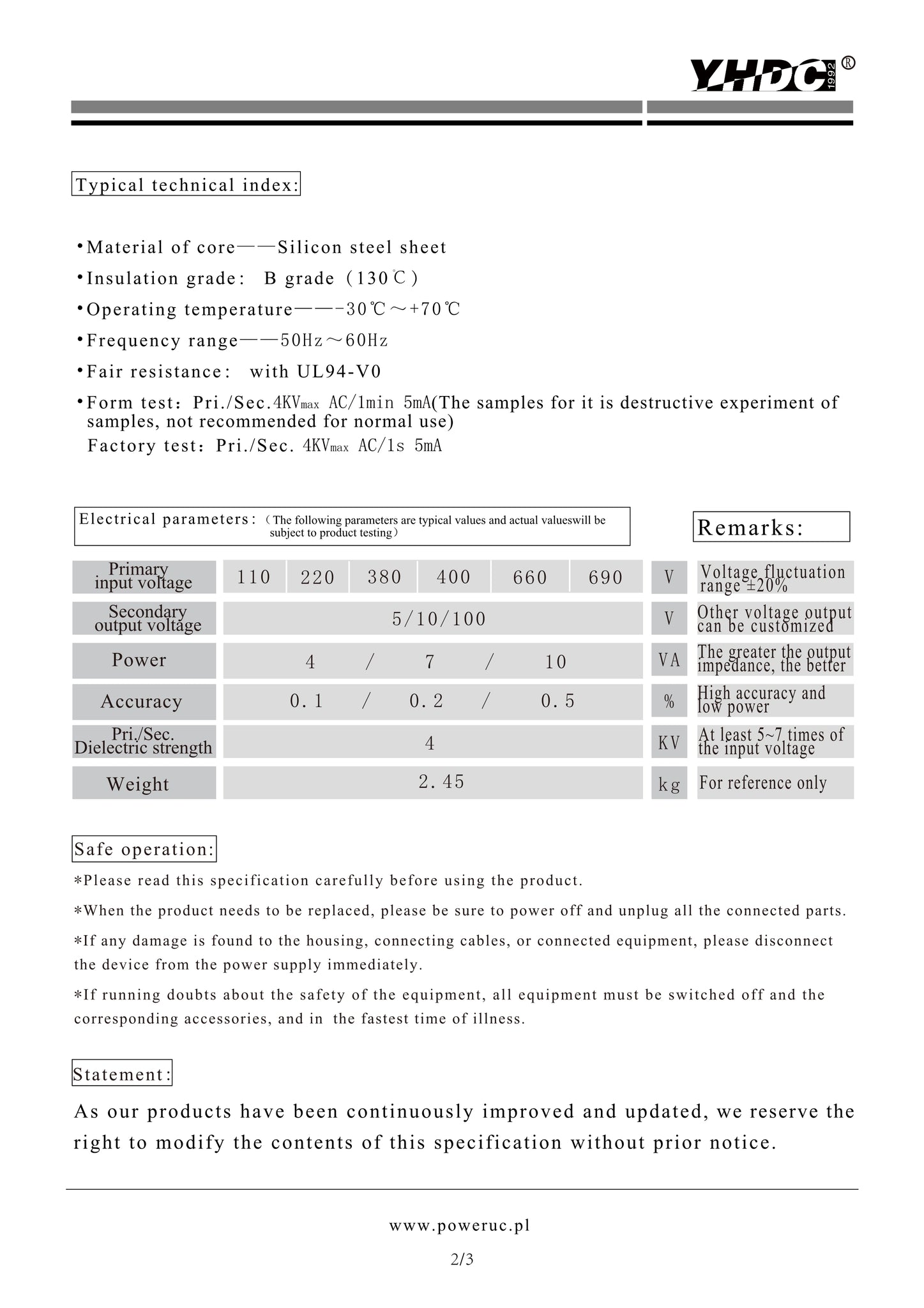

Electrical Parameters:

DOWNLOAD
