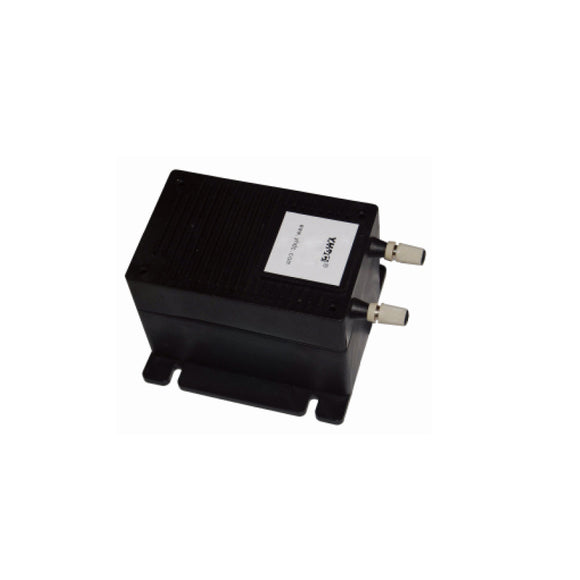

Mini voltage type current transformer TV60GB rated voltage 1000V/1140V/1500V/2000V/3000V/4000V

Mini voltage type current transformer TV60GB rated voltage 1000V/1140V/1500V/2000V/3000V/4000V

PowerUC

  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Characteristics:

1.Vacuum epoxy resin encapsulated,100 /6 hours high temperature aging,
long woking life 20 years and with high delectric strength
2.High quality laminated silicon steel, low temperature rise, high efficiency.
3.PBT engineering plastic, environmental protection, flame retardant, 120
degrees no deformation
4. Reasonable structure, convenient installation, low noise, strong seismic,
sealed waterproof, moisture-proof

Technical Index:

Mounting typePlate mount
Flame resistance UL94-V0
Insulation classB
Operation temperature-30℃~+70
Work frequency50Hz60Hz
Dielectric strengthPrimary/secondary (highest) 30KV 50Hz 1min 5mA

Electrical Parameters:
