Mini voltage type current transformer TV6023BK rated voltage 380V - PowerUC

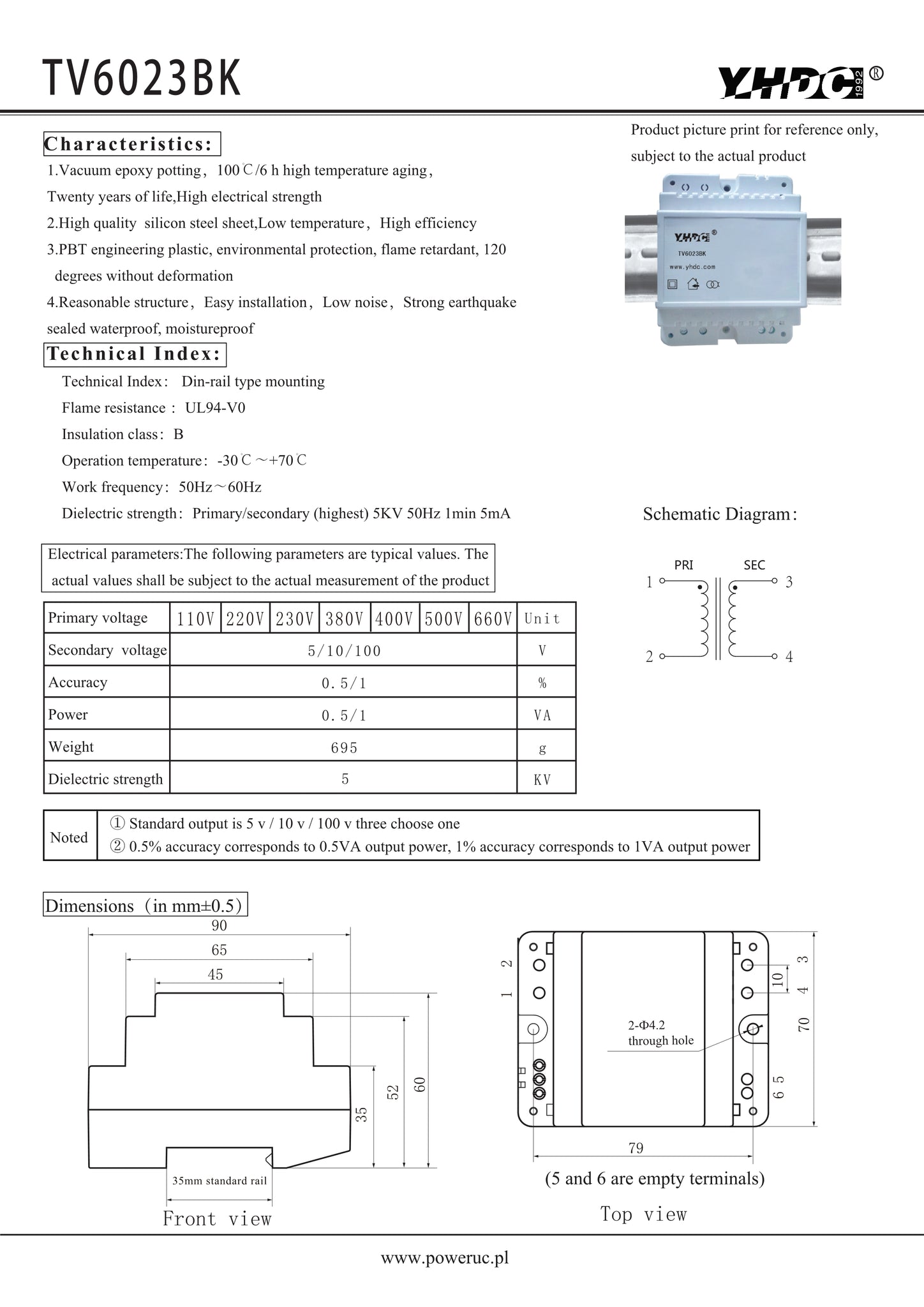

Mini voltage type current transformer TV6023BK rated voltage 380V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:

1.Vacuum epoxy potting，100℃/6 h high temperature aging， Twenty years of life,High electrical strength

2.High quality silicon steel sheet,Low temperature，High efficiency

3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees without deformation

4.Reasonable structure，Easy installation，Low noise，Strong earthquake sealed waterproof, moistureproof

Technical Index:

Technical Index： Din-rail type mounting

Flame resistance ：UL94-V0

Insulation class：B

Operation temperature：-30℃～+70℃

Work frequency：50Hz～60Hz

Dielectric strength：Primary/secondary (highest) 5KV 50Hz 1min 5mA

Electrical Parameters:
