Mini voltage type current transformer TV30GB rated voltage 100V 220V 230V 400V 500V 660V 690V 1000V 1140V 1500V 2000V 3000V - PowerUC

Mini voltage type current transformer TV30GB rated voltage 100V 220V 230V 400V 500V 660V 690V 1000V 1140V 1500V 2000V 3000V

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model:TV30GB

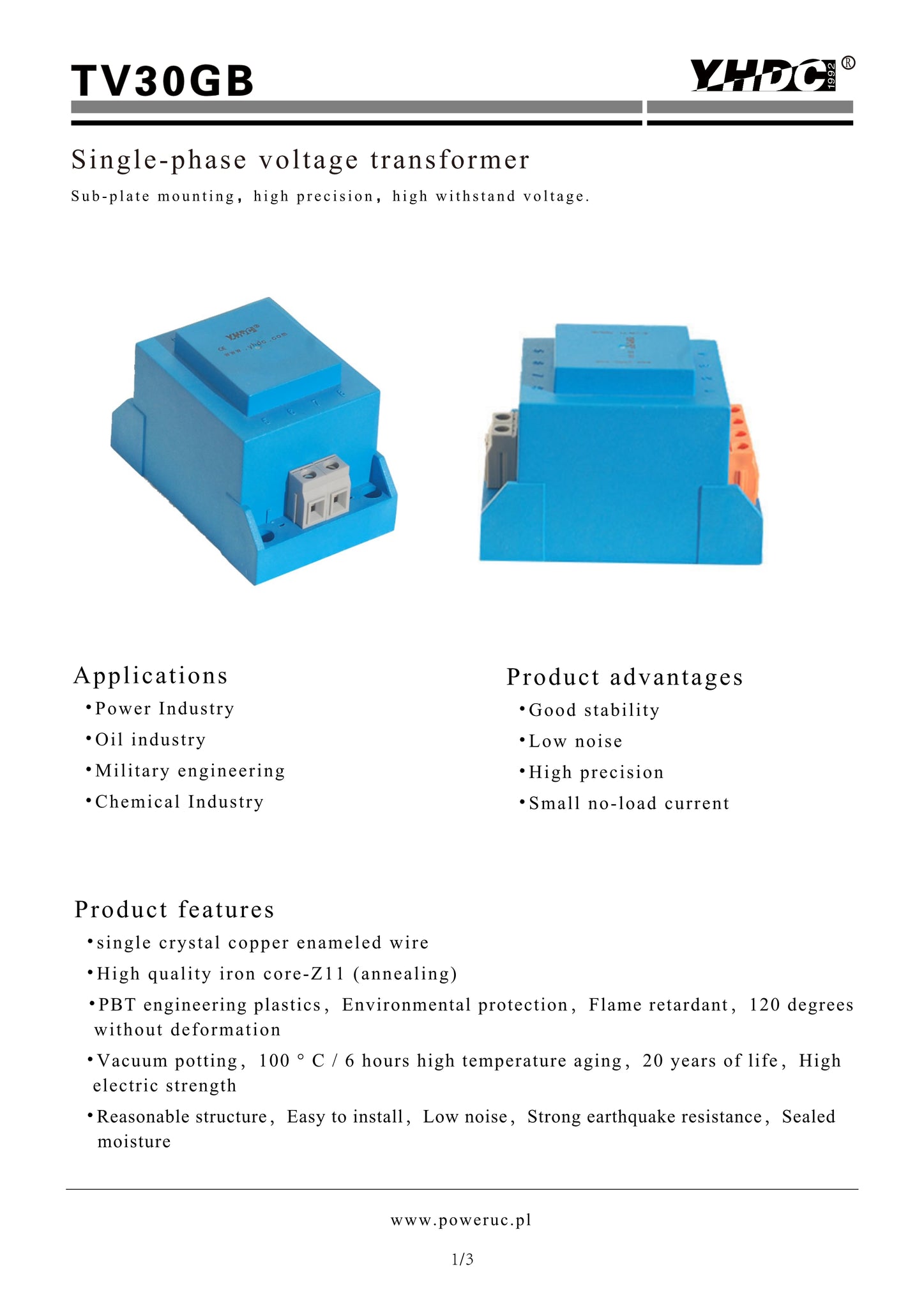

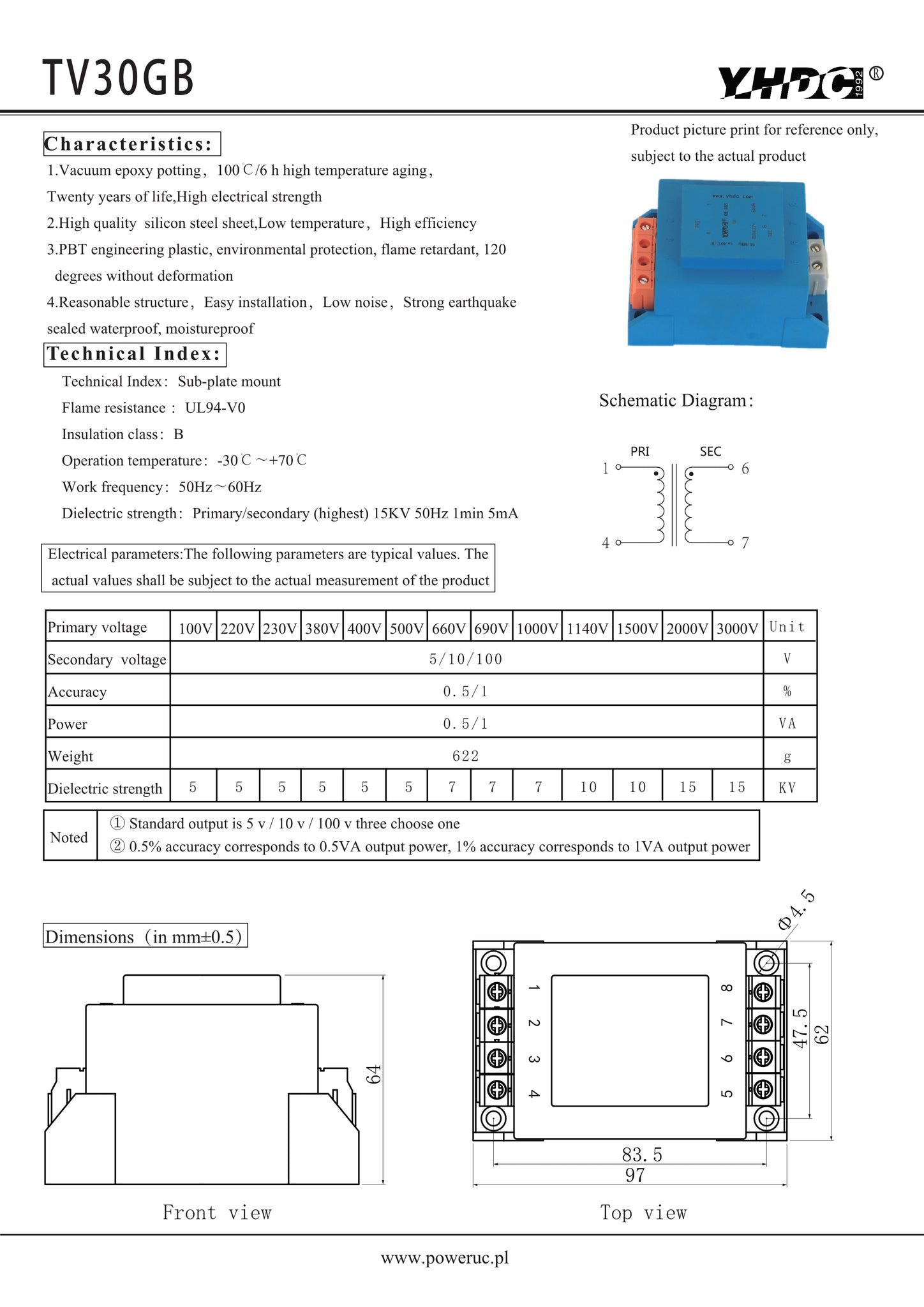

Characteristics:

1.Vacuum epoxy potting，100℃/6 h high temperature aging， Twenty years of life,High electrical strength

2.High quality silicon steel sheet,Low temperature，High efficiency

3.PBT engineering plastic, environmental protection, flame retardant, 120 degrees without deformation

4.Reasonable structure，Easy installation，Low noise，Strong earthquake sealed waterproof, moistureproof

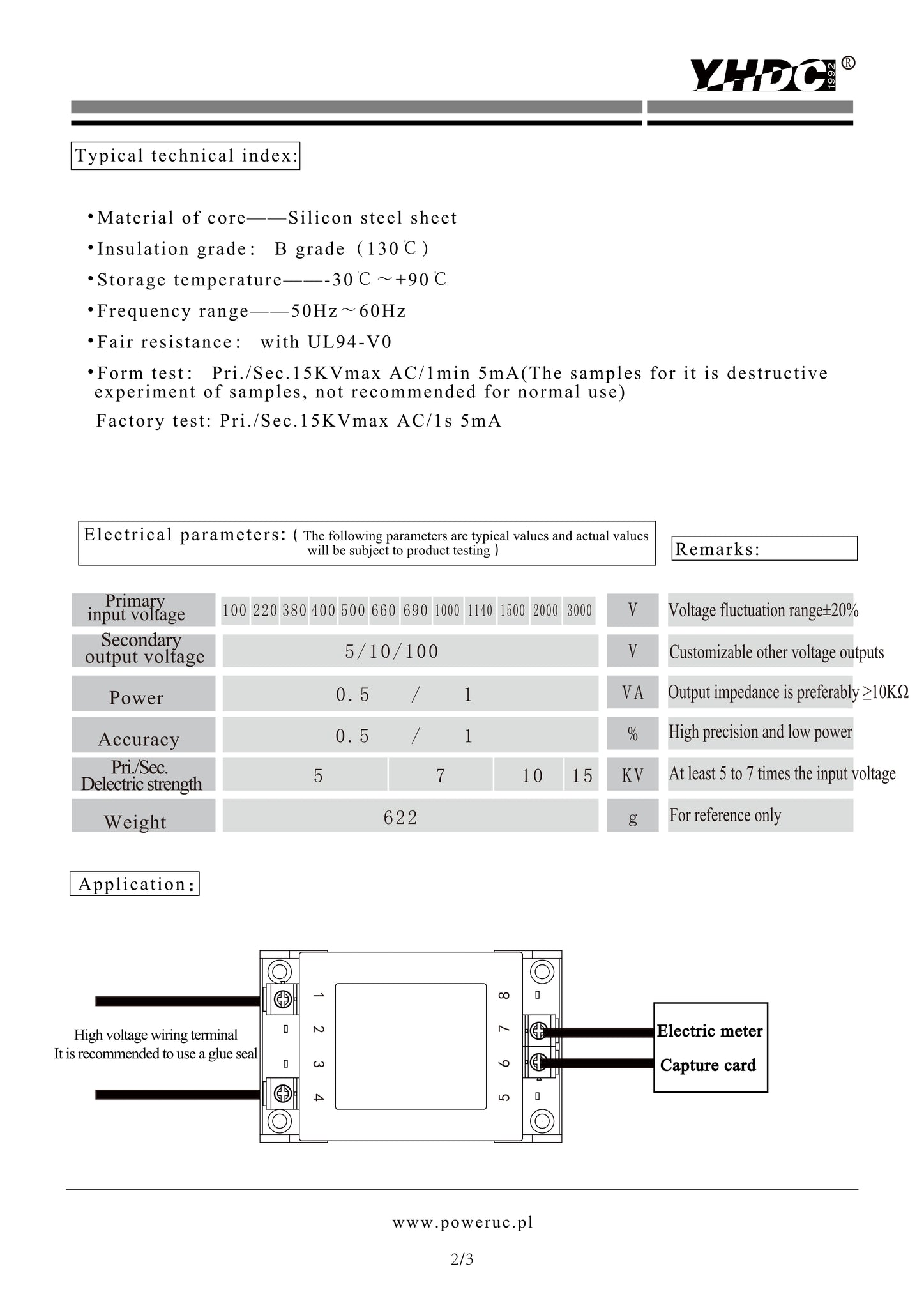

Technical Index:

Technical Index：Sub-plate mount

Flame resistance ：UL94-V0

Insulation class：B

Operation temperature：-30℃～+70℃

Work frequency：50Hz～60Hz

Dielectric strength：Primary/secondary (highest) 15KV 50Hz 1min 5mA Electrical parameters:The following parameters are typical values. The actual values shall be subject to the actual measurement of the product

Electrical Parameters:

DOWNLOAD
