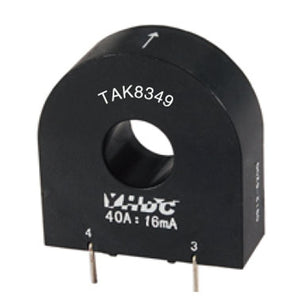

Mini high-frequency current transformer TAK8349-200 Rated input 75A - PowerUC

Mini high-frequency current transformer TAK8349 Rated input 30A/40A/75A Rated output 600mA/400mA/375mA/250mA/188mA/150mA/37.5mA


  • €0,00
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after


High frequency pulse current detection, switching power supply circuit protection.

Technical Index:
Mounting type: PCB
Material of core: Ferrite
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 2KHz ~ 500KHz
Dielectric strength: 3.5KV 50Hz 1min

Electrical Parameters:
