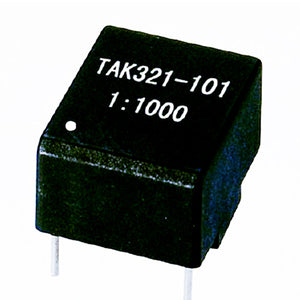

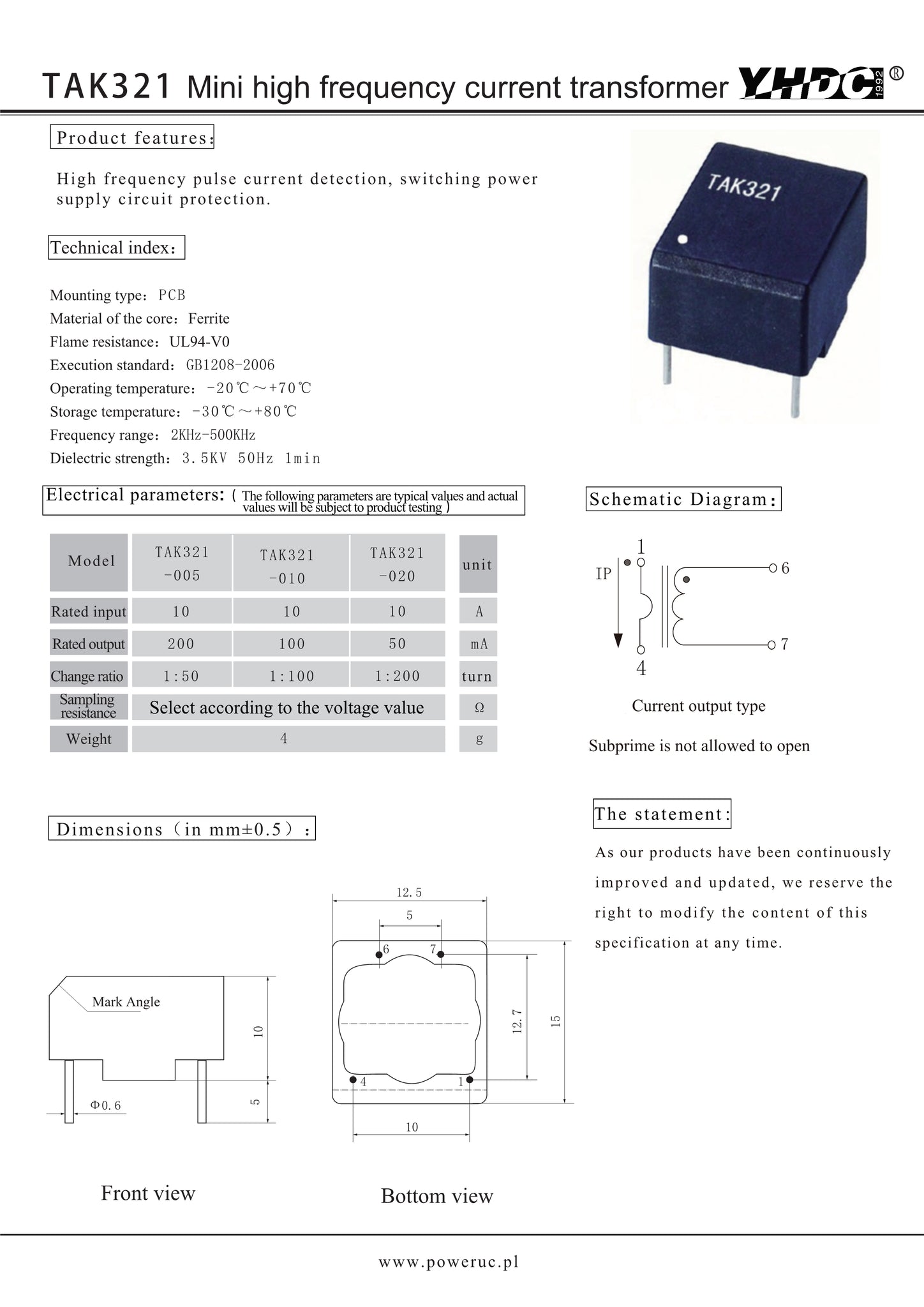

Mini high-frequency current transformer TAK321 Rated input 10A
Characteristics:
Busbar built-in, mini size, PCB welding.
Technical Index:
Mounting type: PCB
Material of core: Ferrite
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 2KHz ~ 500KHz
Dielectric strength: 3.5KV 50Hz 1min
Electrical Parameters:
DOWNLOAD
