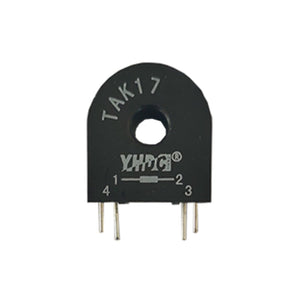

1Mini high-frequency current transformer TAK17 Rated input 10A/24A/35A/48A/50A Rated output 200mA/240mA/175mA/160mA/87.5mA/100mA - PowerUC

Mini high-frequency current transformer TAK17 Rated input 10A/24A/35A/48A/50A Rated output 200mA/240mA/175mA/160mA/87.5mA/100mA

PowerUC

Shipping calculated at checkout.
Only 10 left!



Characteristics:

Used for high frequency pulse current detection and switching power supply circuit protection.

Technical Index:
Mounting type: PCB
Material of core: Ferrite
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 2KHz ~ 500KHz
Dielectric strength: 3.5KV 50Hz 1min

Electrical Parameters:
