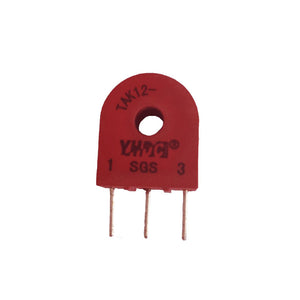

Mini high-frequency current transformer TAK12 Rated input 20A

Custom Quote Free Sample

Used for high-frequency impulse current detecting and switching power circuit protecting.

Technical Index:
Mounting type: PCB
Material of core: Ferrite
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -35°C ~ +85°C
Storage temperature: -45°C ~ +95°C
Frequency range: 2KHz ~ 500KHz
Dielectric strength: 3.5KV 50Hz 1min

Electrical Parameters:

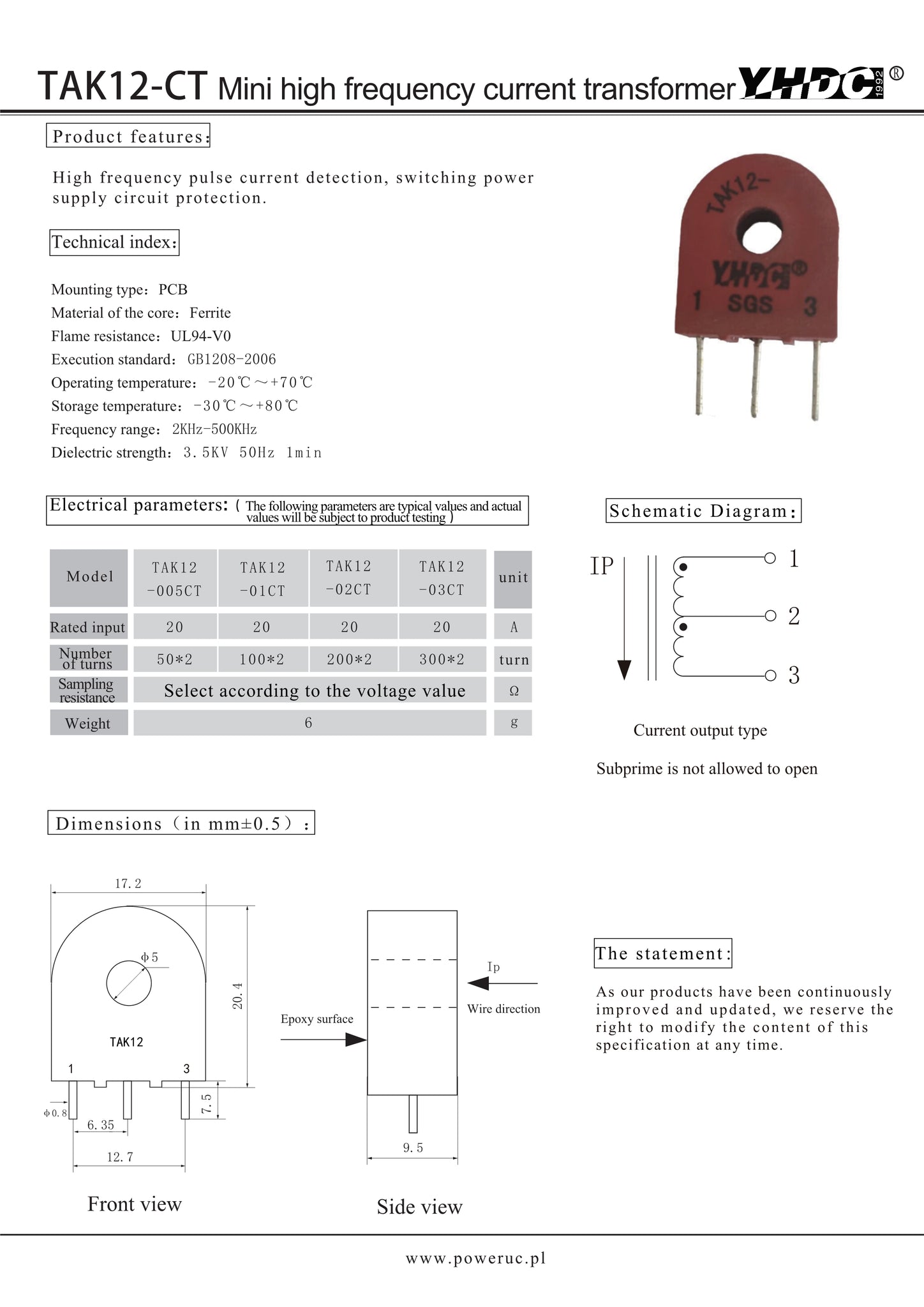

Download Spec Sheet
