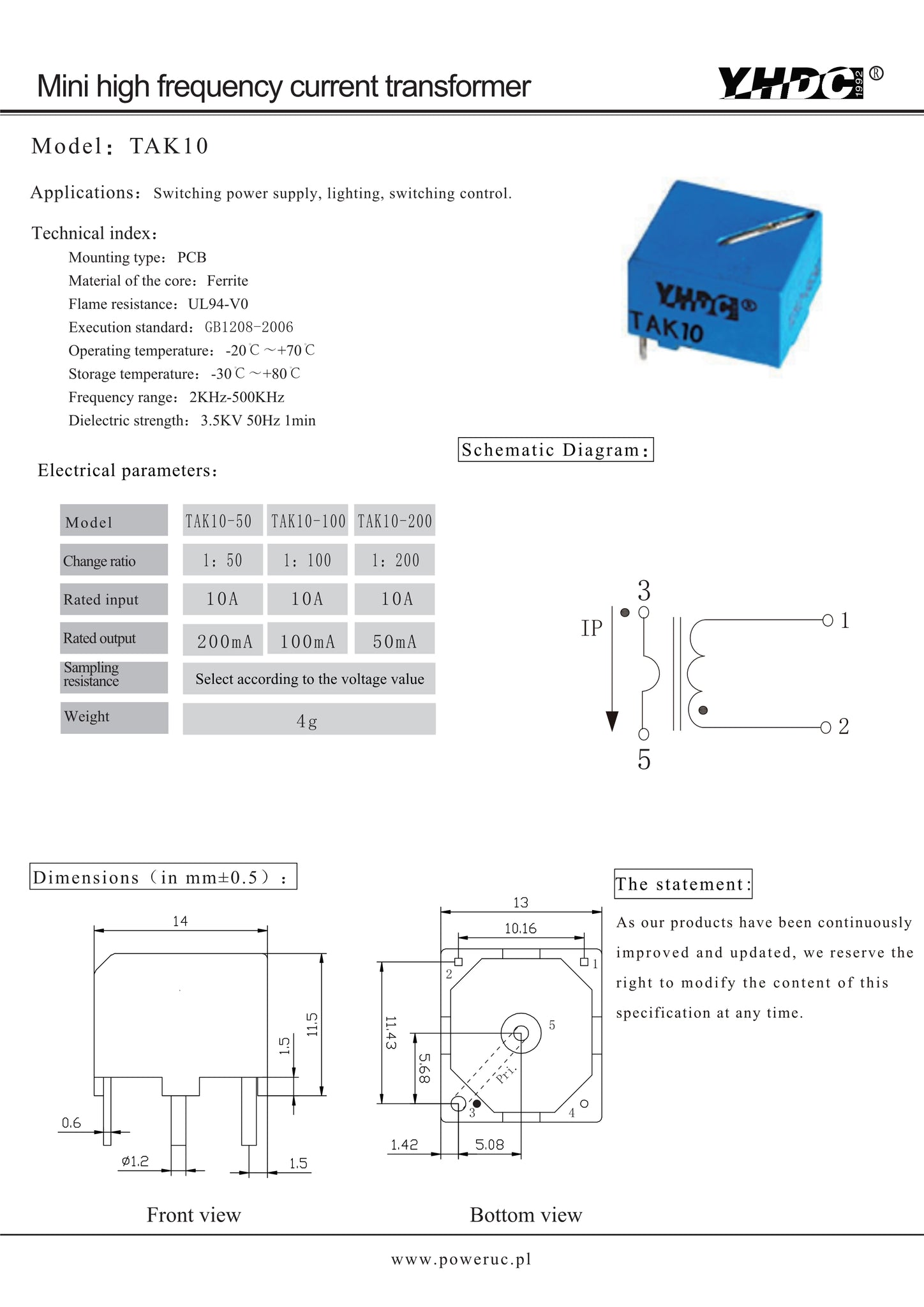

Mini high-frequency current transformer TAK10 Rated input 10A Rated output 200mA/100mA/50mA - PowerUC

Mini high-frequency current transformer TAK10 Rated input 10A Rated output 200mA/100mA/50mA

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:
Used for switch power supply impulse current signal feedback.  Control switch circuit.

Technical Index:
Mounting type: PCB
Material of core: Ferrite
Flame resistance: UL94-V0
Execution standard: GB1208-2006
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range: 2KHz ~ 500KHz
Dielectric strength: 3.5KV 50Hz 1min

Electrical Parameters:
