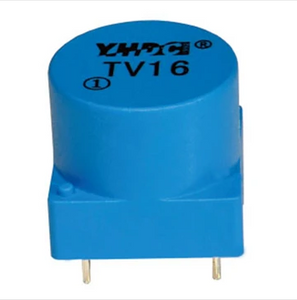

small current type voltage transformer TV16B 2mA/2mA
Characteristics:
TV16B is current type voltage transformer, using ultracrystalline core. Primary current will be different according to different voltage working on the current-limiting resistance. And there will be a same current at secondary as primary.
Technical Index:
Mounting type: PCB
Material of the core: Nanocrystalline
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +70°C
Storage temperature: -30°C ~ +80°C
Frequency range : 20Hz ~ 20KHz
Dielectric strength: 3.5KV 50Hz 1min

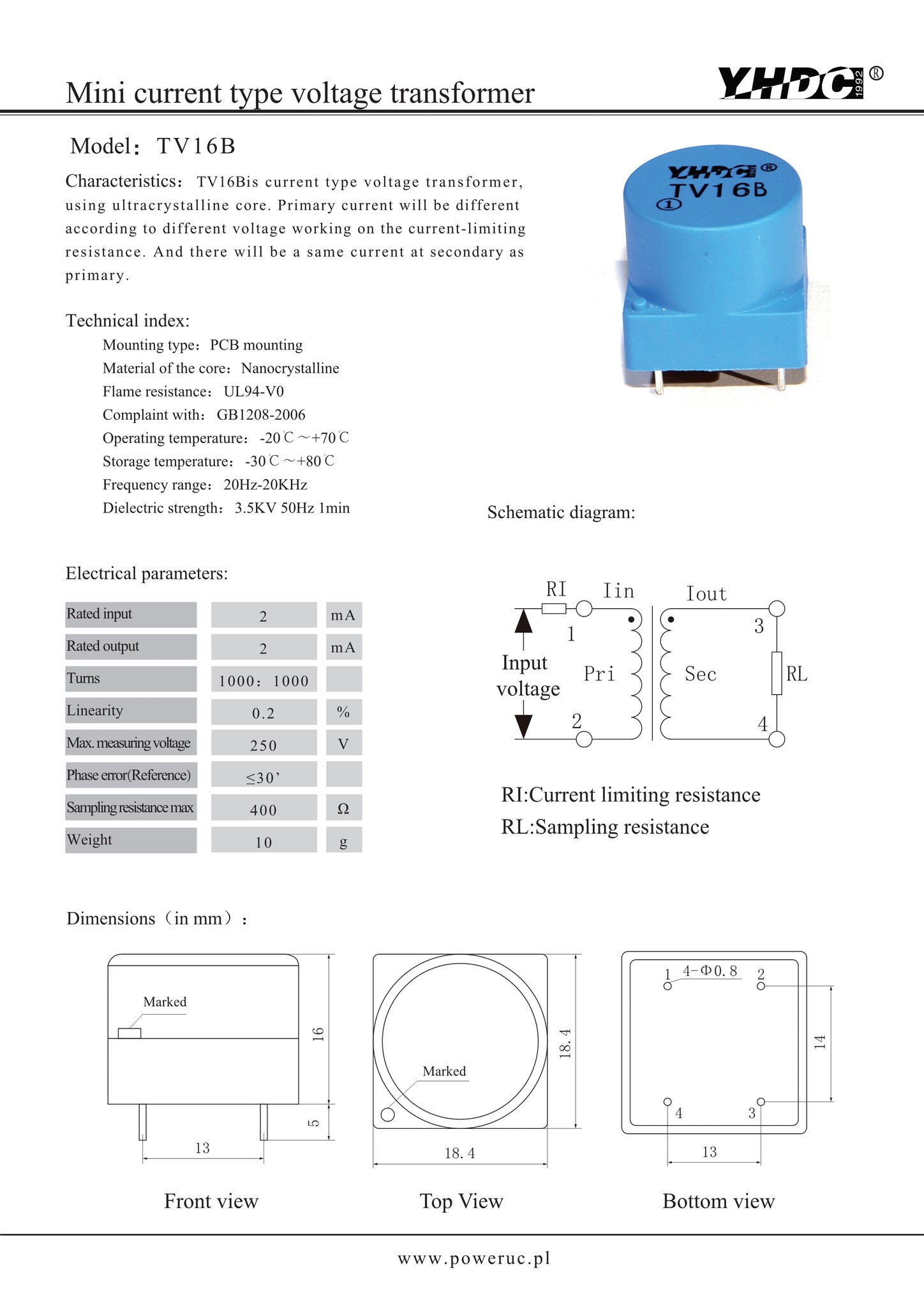

Electrical Parameters:
DOWNLOAD
