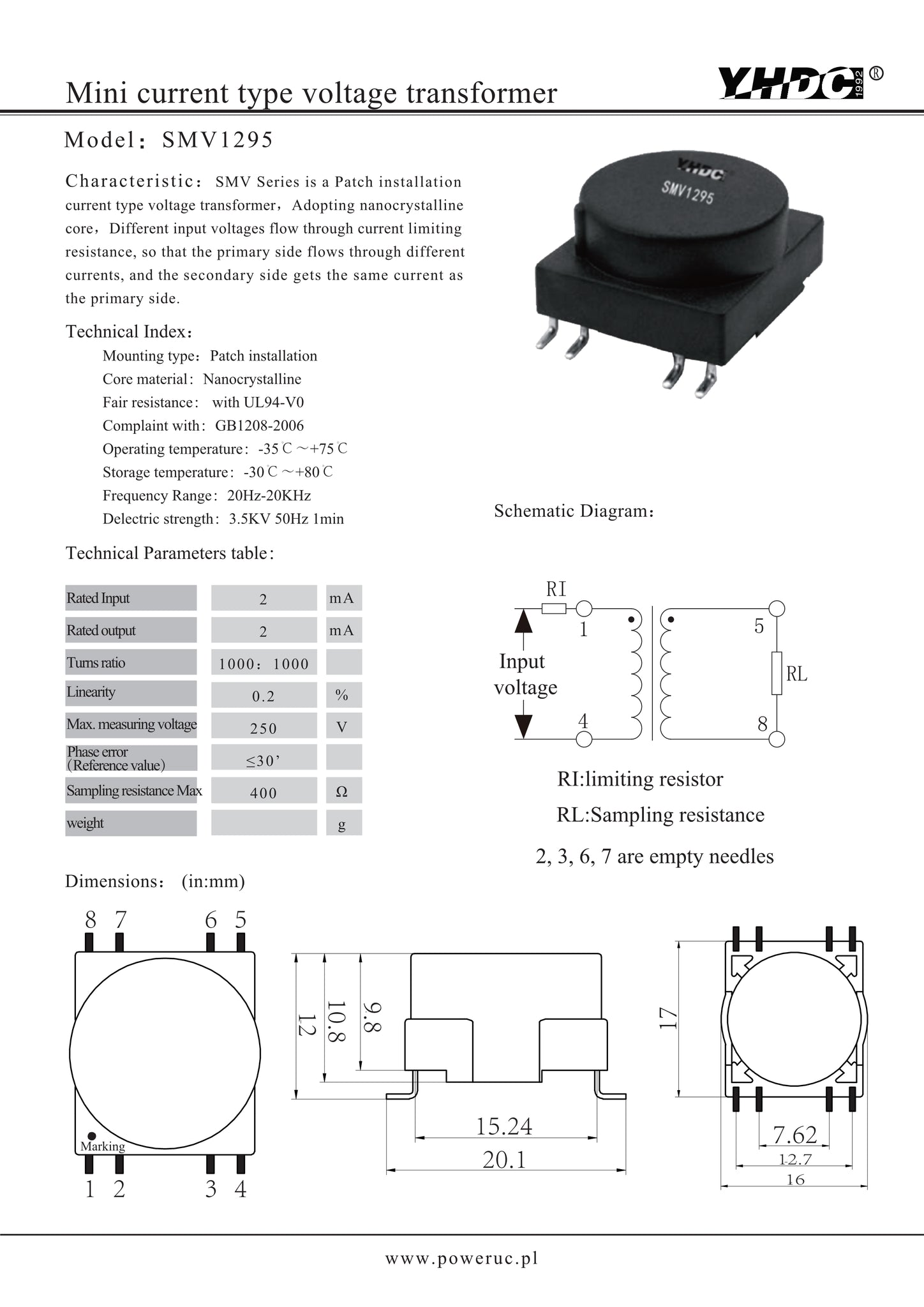

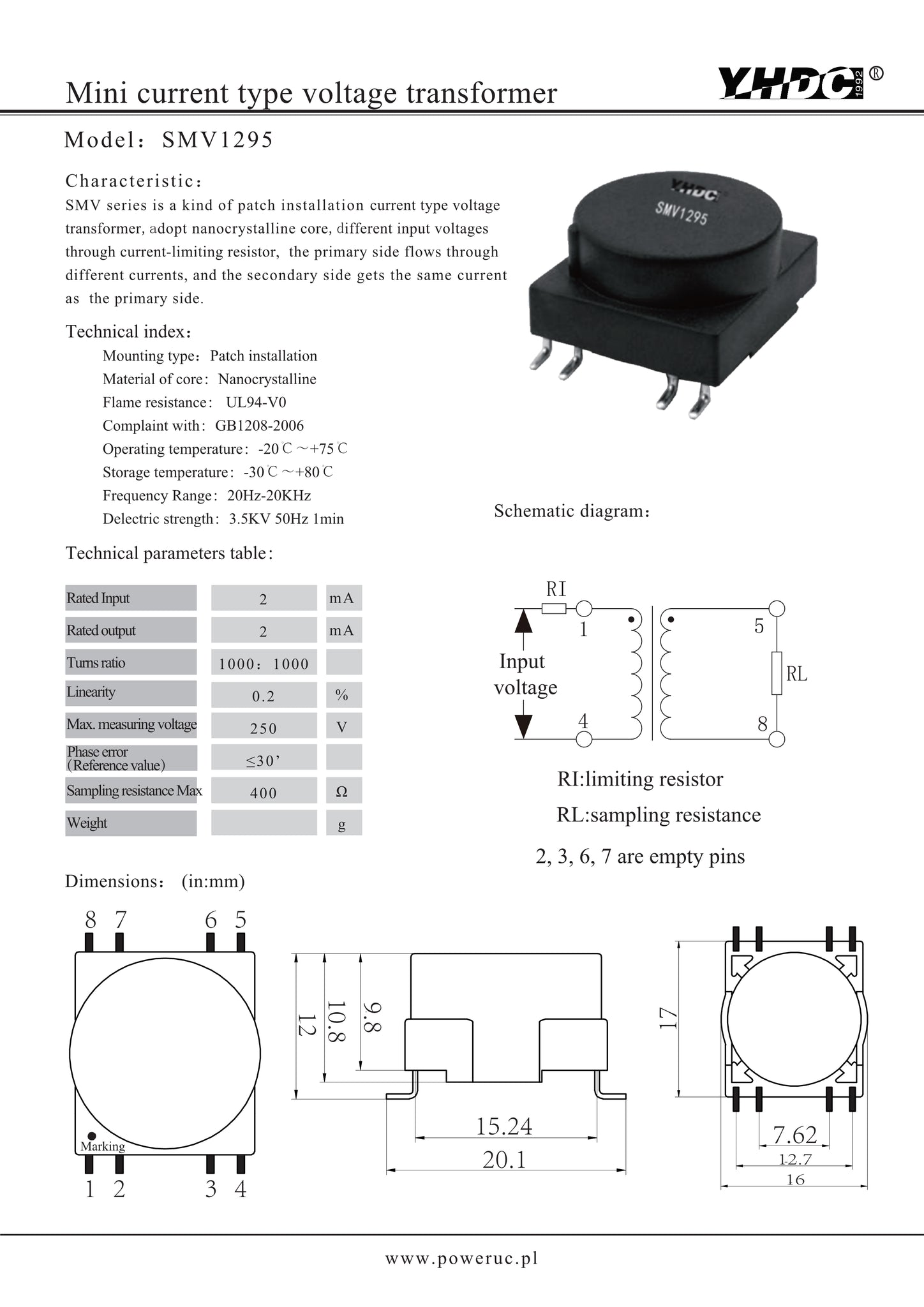

Mini Current Type Voltage Transformer SMV1295 Rated input 2mA Rated output 2mA

Mini Current Type Voltage Transformer SMV1295 Rated input 2mA Rated output 2mA

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Model：SMV1295

Characteristic：

SMV Series is a Patch installation  current type voltage transformer，Adopting nanocrystalline core，Different input voltages flow through current limiting resistance, so that the primary side flows through different currents, and the secondary side gets the same current as the primary side.

Technical Index：

Mounting type：Patch installation

Core material：Nanocrystalline

Fair resistance： with UL94-V0

Complaint with：GB1208-2006

Operating temperature：-20℃～+75℃

Storage temperature：-30℃～+80℃

Frequency Range：20Hz-20KHz

Delectric strength：3.5KV 50Hz 1min

Technical Parameters table：
