High Isolated Voltage SCR Trigger Transformer KMG308 Vout microsecond integral 800/1600/2400μvs - PowerUC

High Isolated Voltage SCR Trigger Transformer KMG308 Vout microsecond integral 800/1600/2400μvs

PowerUC

  • €5,29
    Unit price per
Shipping calculated at checkout.

Only 0 left!
Will be in stock after

Characteristics:

Vacuum epoxy encapsulated, high isolation voltage, used for the main circuit voltage above 660V.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -30°C ~ +85°C
Frequency range: 1KHz ~ 10KHz
Dielectric strength:  15KV 50Hz 1min

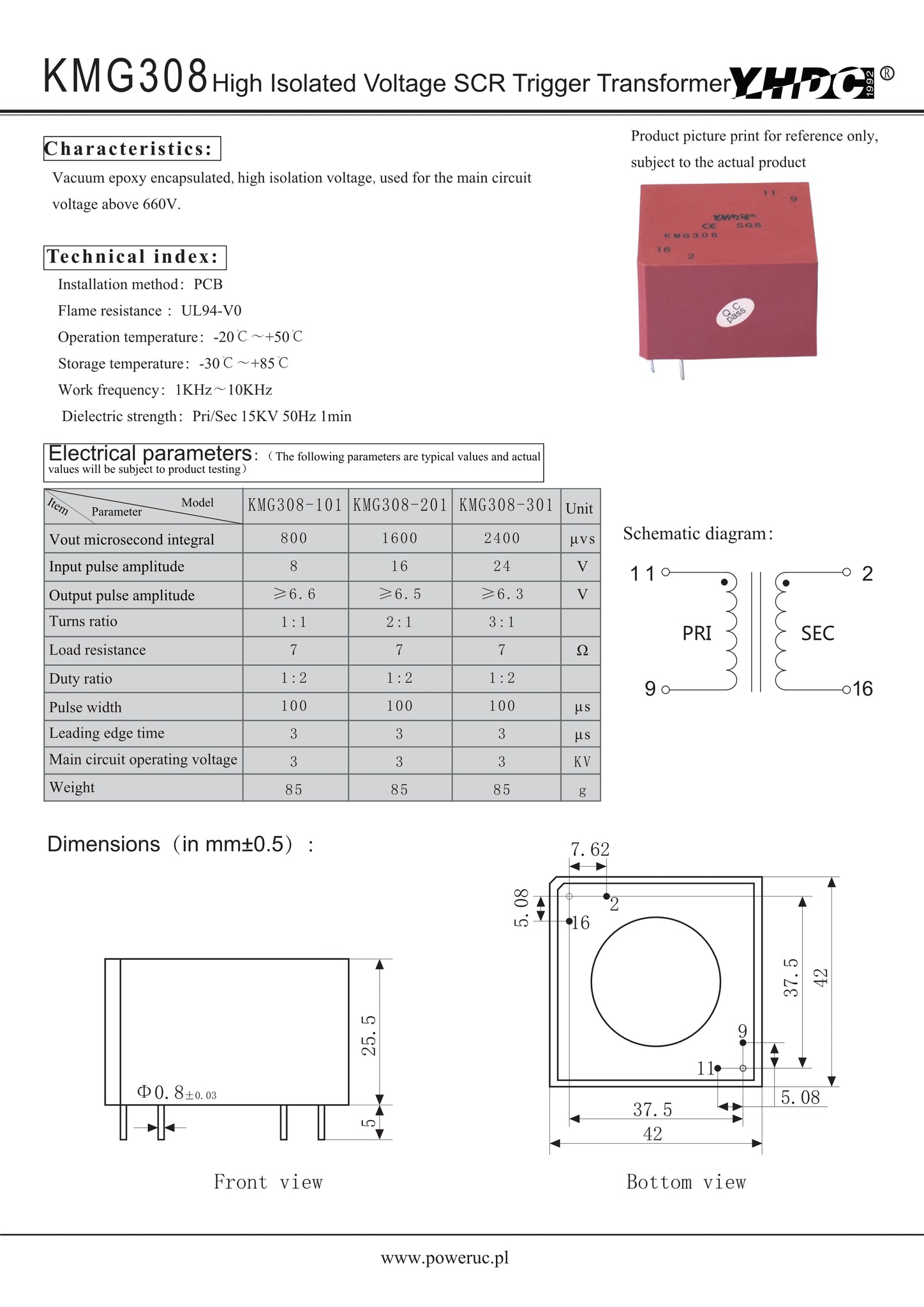

Electrical Parameters:


DOWNLOAD
