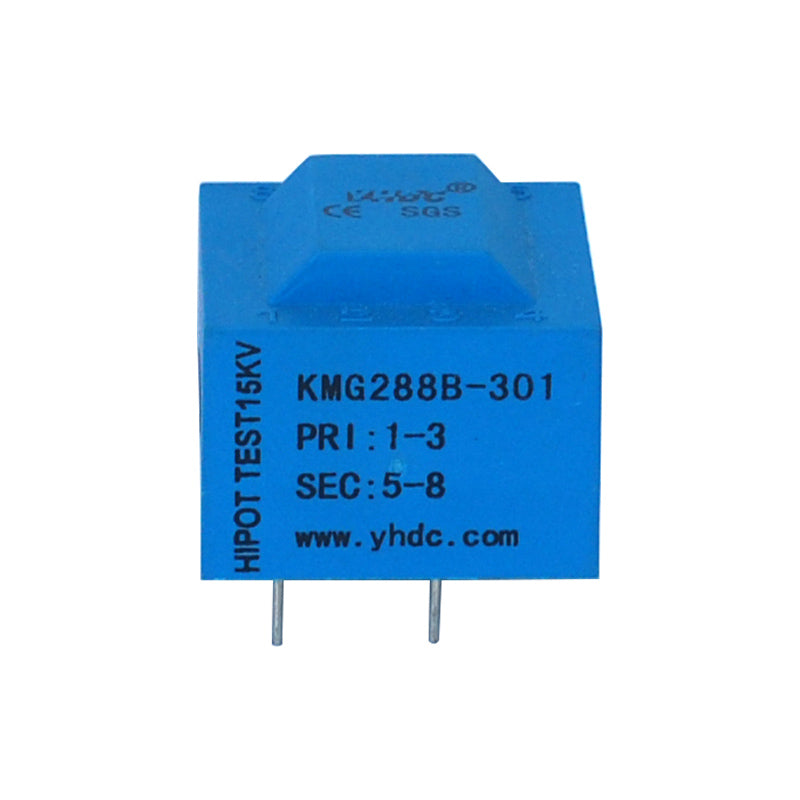

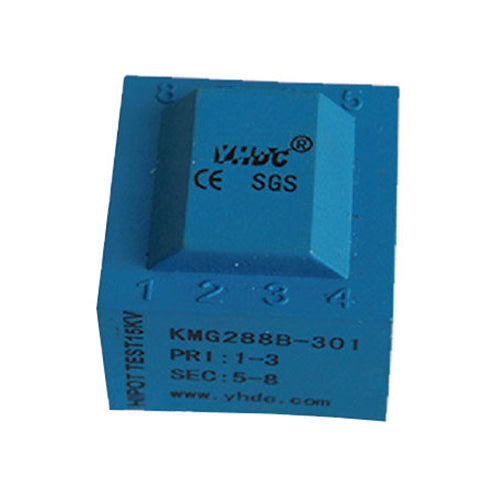

High Isolated Voltage SCR Trigger Transformer KMG288B Vout microsecond integral 800/1600/2400μvs

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:

Vacuum epoxy potting，High isolation voltage，used for the main circuit voltage above 660V.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -30°C ~ +85°C
Frequency range: 1KHz ~ 10KHz
Dielectric strength:  15KV 50Hz 1min

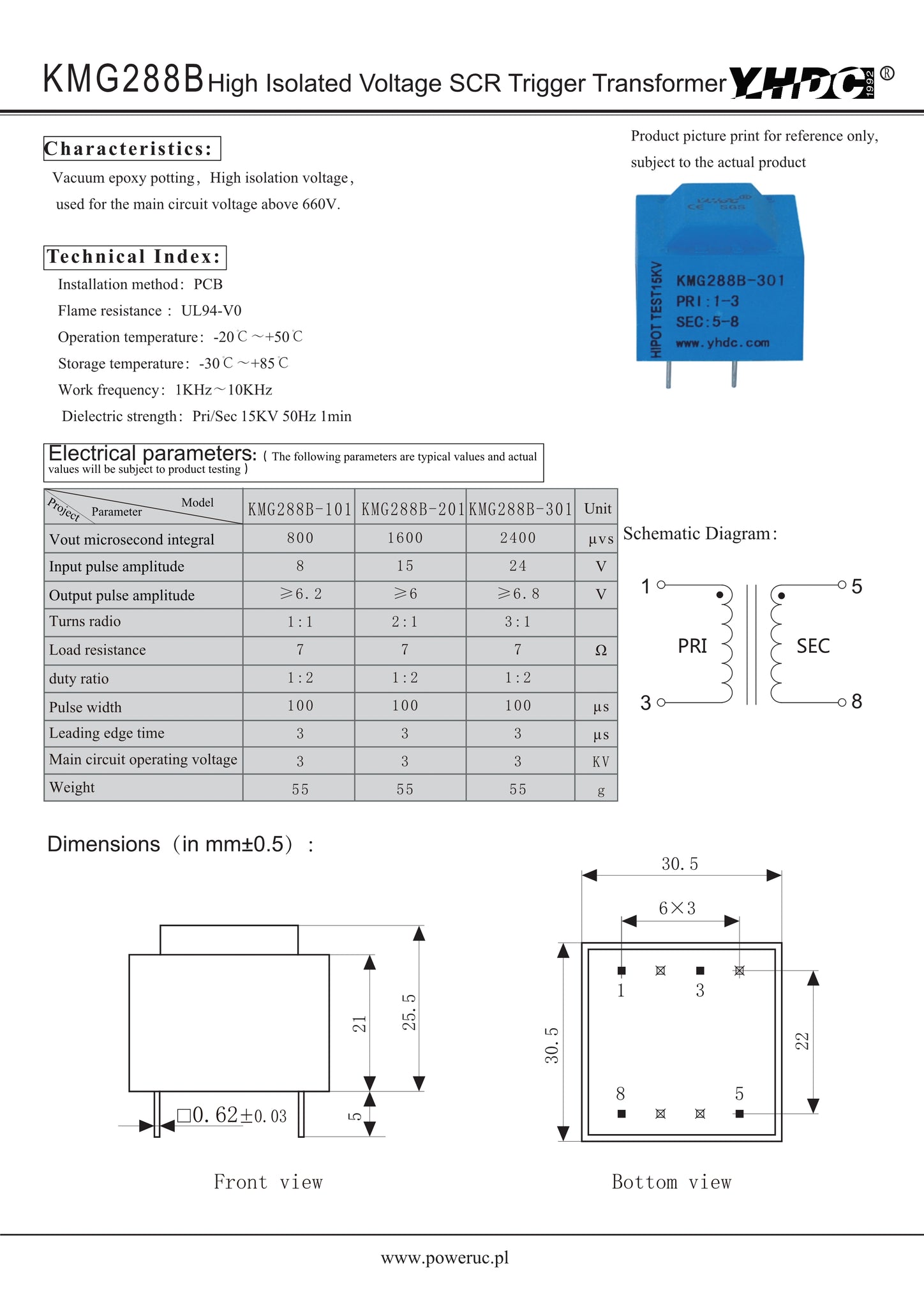

Electrical Parameters:

DOWNLOAD
