High Isolated Voltage SCR Trigger Transformer KMG208 Vout microsecond integral 4000/8000/12000μvs

PowerUC

Shipping calculated at checkout.
Only 0 left!
Will be in stock after

Characteristics:

Vacuum epoxy potting，High isolation voltage，used for the main circuit voltage above 660V.

Technical Indicators:
Installation method: PCB
Flame resistance: UL94-V0
Operating temperature: -20°C ~ +50°C
Storage temperature: -40°C ~ +85°C
Frequency range: 20Hz ~ 1KHz
Dielectric strength: 15KV 50Hz 1min

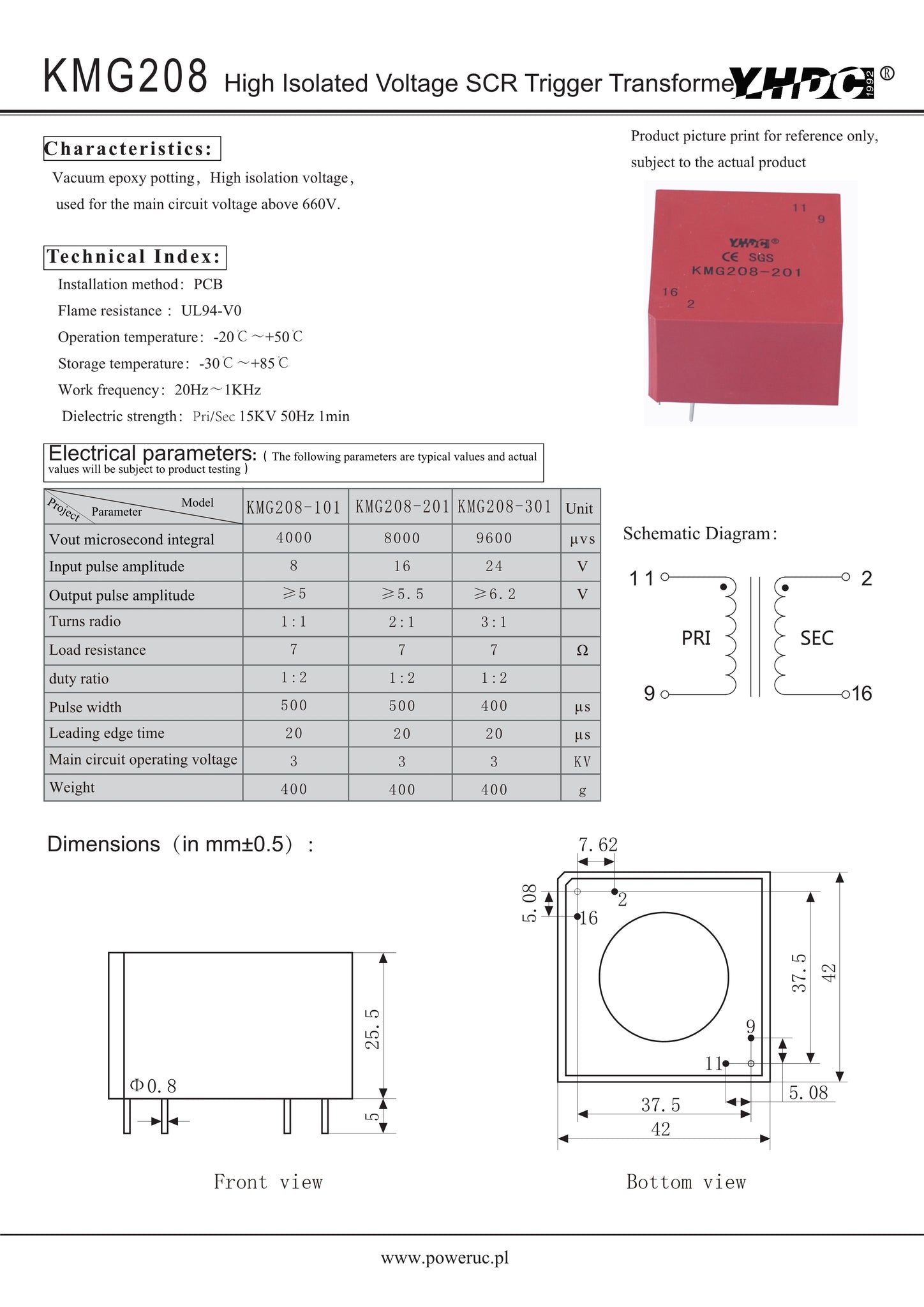

Electrical Parameters:

DOWNLOAD
